Technical Manual – Push Button Smart 55/63
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
Phone: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
68
68
The following table shows the available communication objects:
Number
Name
Length
Usage
0
Push button 1
Push buttons 1/2 – Dimming On/Off
1 Bit
Switching command for the dimming
function
1
Push button 1
Push buttons 1/2 – Dimming relative
4 Bit
Command for relative dimming
2
Push button 1 –
Status for toggle
1 Bit
Only for single button function;
Receipt of the status with current
information about the status of the
actuator to be controlled
3
Push button 1
Push buttons 1/2 – Status for display
1 Byte
Receive the status of the current
blind/roller shutter position.
Table 58: Communication objects – Dimming
Type of presentation:
Single-Button function
Two-Button function
Normal view:
The dimming function can be displayed with 3 freely selectable symbols and freely selectable colour.
The push-button evaluates the information of the "Object 3 - Status for display".
Special symbols:
Here you can alternatively select a “bar symbol”, a “value as text (0 – 100%)” or
a “value as text (0...255)”.The information from "Object 3 - Status for display" is also evaluated here.
Additional bar display:
Only with "normal view" there is the option of showing a bar display next to the symbol. By filling the
bar, this visualises the status of the dimming value.

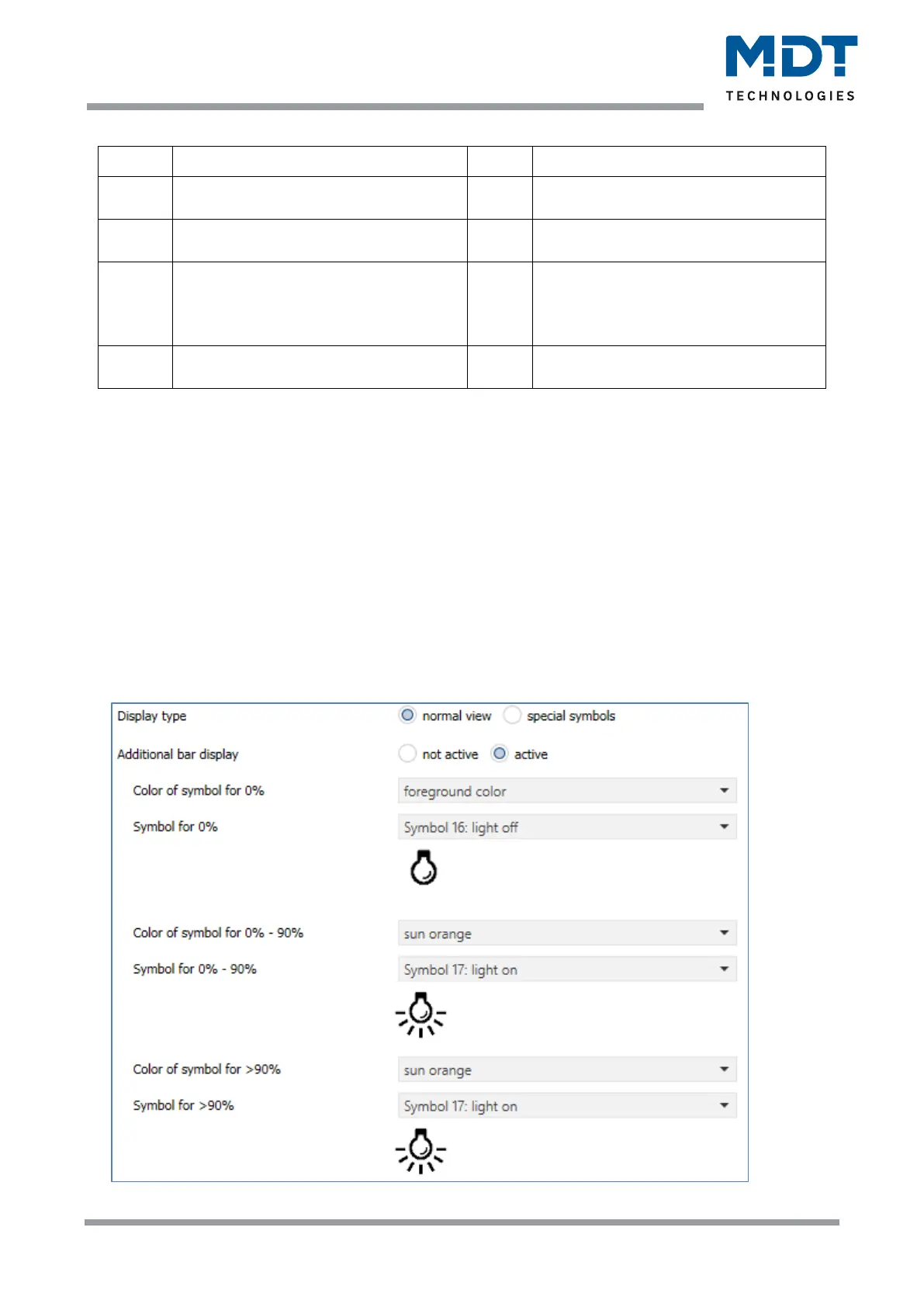

Figure 36: Presentation – Dimming
