DS200
REMOTE
CONTROL
REMOTE
CONTROL
DIGITAL
SOURCES
DS200
(DAC MODE)
PRE-AMP
(VOLUME CONTROL)
POWER
AMP
DIGITAL
SOURCES
DS200
(PRE-AMP/DAC MODE)
POWER
AMP
DIGITAL
AUDIO
POWER
CONTROL
DATA
POWER
CONTROL
DATA
VARIABLE
ANALOG
AUDIO
DIGITAL
AUDIO
POWER
CONTROL
VARIABLE ANALOG AUDIO
POWER CONTROL
POWER
CONTROL
FIXED
ANALOG
AUDIO
REMOTE
CONTROL
REMOTE
CONTROL
DIGITAL
SOURCES
DS200
(DAC MODE)
PRE-AMP
(VOLUME CONTROL)
POWER
AMP
DIGITAL
SOURCES
DS200
(PRE-AMP/DAC MODE)
POWER
AMP
DIGITAL
AUDIO
POWER
CONTROL
DATA
POWER
CONTROL
DATA
VARIABLE
ANALOG
AUDIO
DIGITAL
AUDIO
POWER
CONTROL
VARIABLE ANALOG AUDIO
POWER CONTROL
POWER
CONTROL
FIXED
ANALOG
AUDIO

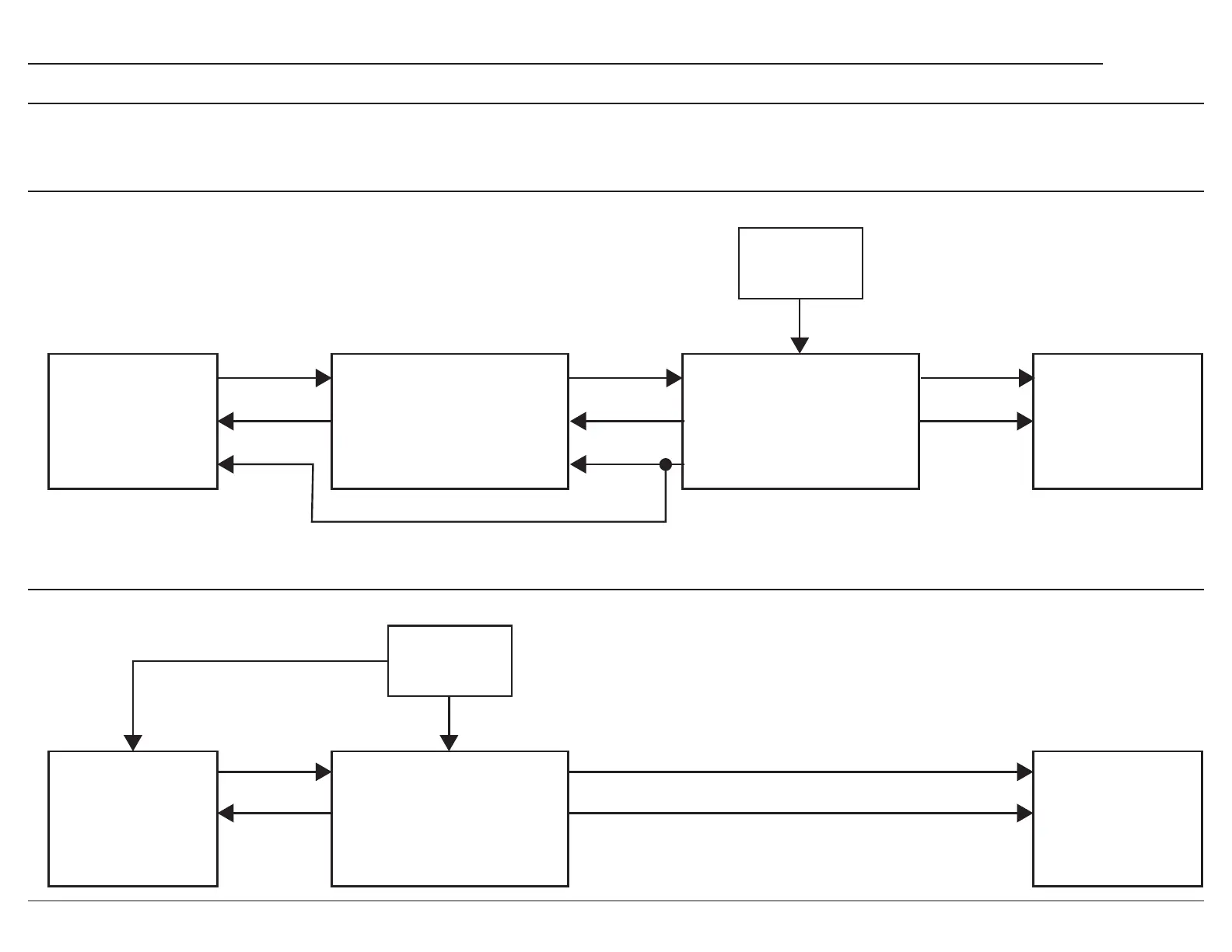

System Conguration for DAC Mode
Setup Menu Notes:
Level Adjust = Fixed (default)
Front IR = Disabled
Power IR = Disabled
Input IR = Disabled
System Conguration for Preamp / DAC Mode
System Congurations
Shown below are two dierent system congurations. Your system may vary from this, however the actual components would be connected in a similar manner.
Note: The preamplifier or power amplifier may be connected to the DS200 balanced or unbalanced outputs.
Setup Menu Notes:
Level Adjust = Adjustable
Front IR = Enabled
Power IR = Enabled
Input IR = Enabled
