CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney

using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of

which is left to the installer.

● To install a ɸ 120 mm air exhaust connection, insert the reducer

flange 3 on the hood body outlet.

● Fix the pipe 4 in position using sufficient pipe clamps (not

supplied).

● Remove possible charcoal filters.

ɸ150

ɸ120

● Mark a point (3) on the horizontal line C, 130 (250 optional) mm to the right of the vertical

reference line.

● Repeat this operation on the other side, checking that the two marks are on the same horizontal

line.

● Drill at the marked points (1) (2) (3), using a ɸ10 mm drill bit.

● Insert the Wall Plugs 11 into the holes (1) (2) (3).

● Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) supplied with the hood.

● Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) supplied with the hood.

● Open the panel.

● Remove the Metal grease filter using the handles provided.

● Hook the hood body to the bracket 20.

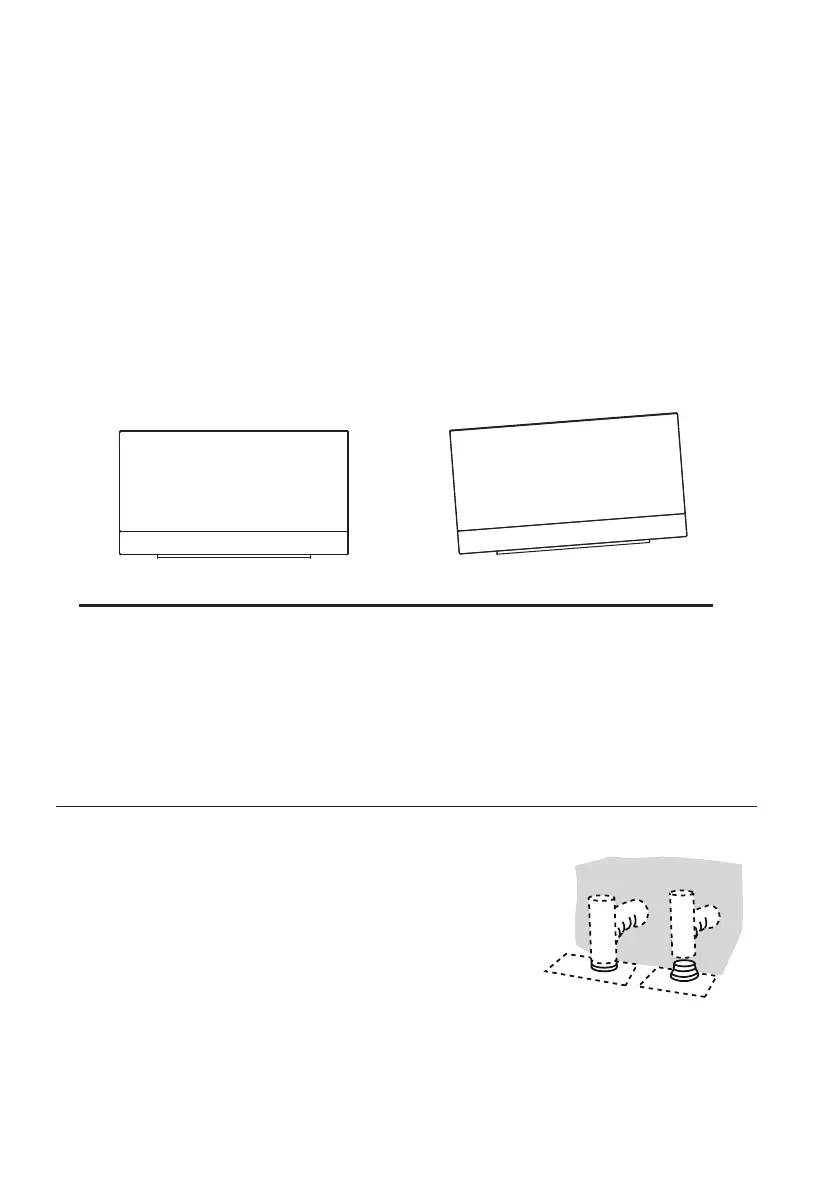

● Level the hood body itself.

● From the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).

● Fit the filter into the hood.

● Close the panel.

Fix the brackets (Optional):

Hook the hood body:

Right Wrong

02 03 04

05

06 07 08

09 10 11 12
