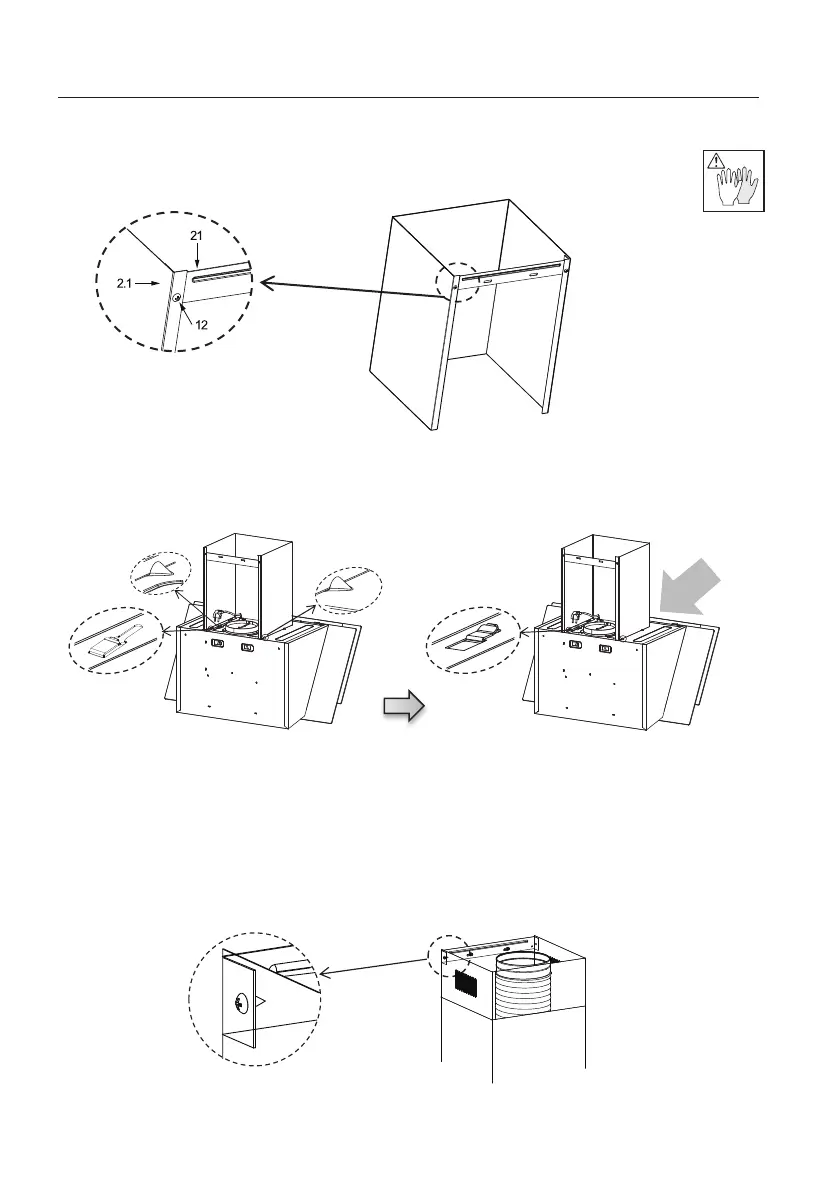

CHIMNEY ASSEMBLY
The chimney can only be installed with exhausting hood
● Fix a Chimney fixing bracket 21 onto the Lower Decorative Chimney with 2 screws 12
(4.2 x 9.5) supplied with the hood.
● Slightly widen the two sides of the flue and hook them onto the hood body, making sure that
they are well seated.
● Slightly widen the two sides of the upper chimney and hook them between the wall and the
bracket 21 which is fixed on the Lower Decorative Chimney.
● Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood.
.
Lower Decorative Chimney
Upper Decorative Chimney
PUSH
02 03 04
05 06
07 08
09 10 11 12
