39

8/22 Rev. R 132617 ©2022 Refrigerated Solutions Group. All rights reserved.

WALK-IN MAINTENANCE

REP

LACEMENT OF THE MAGNETIC DOOR GASKET ASSEMBLY

For your convenience and safety, it is advisable to remove the entire door assembly

from the walk-in cooler or freezer before attempting to replace the door gasket.

Prepare a smooth, clean surface on which the exterior surface

of the door assembly can be placed without marring or scratching the finish.

DOOR ASSEMBLY REMOVAL - ALL FOAMED WALK-IN COOLER OR

FREEZERS WITH CAM LIFT HINGES

NOTE: For doors equipped with a spring hinge, see the door removal instructions label on the interior of the door

near the top hinge. When removing the door assembly from any walk-in, solicit the aid of an assistant during the

door removal and replacement procedures.

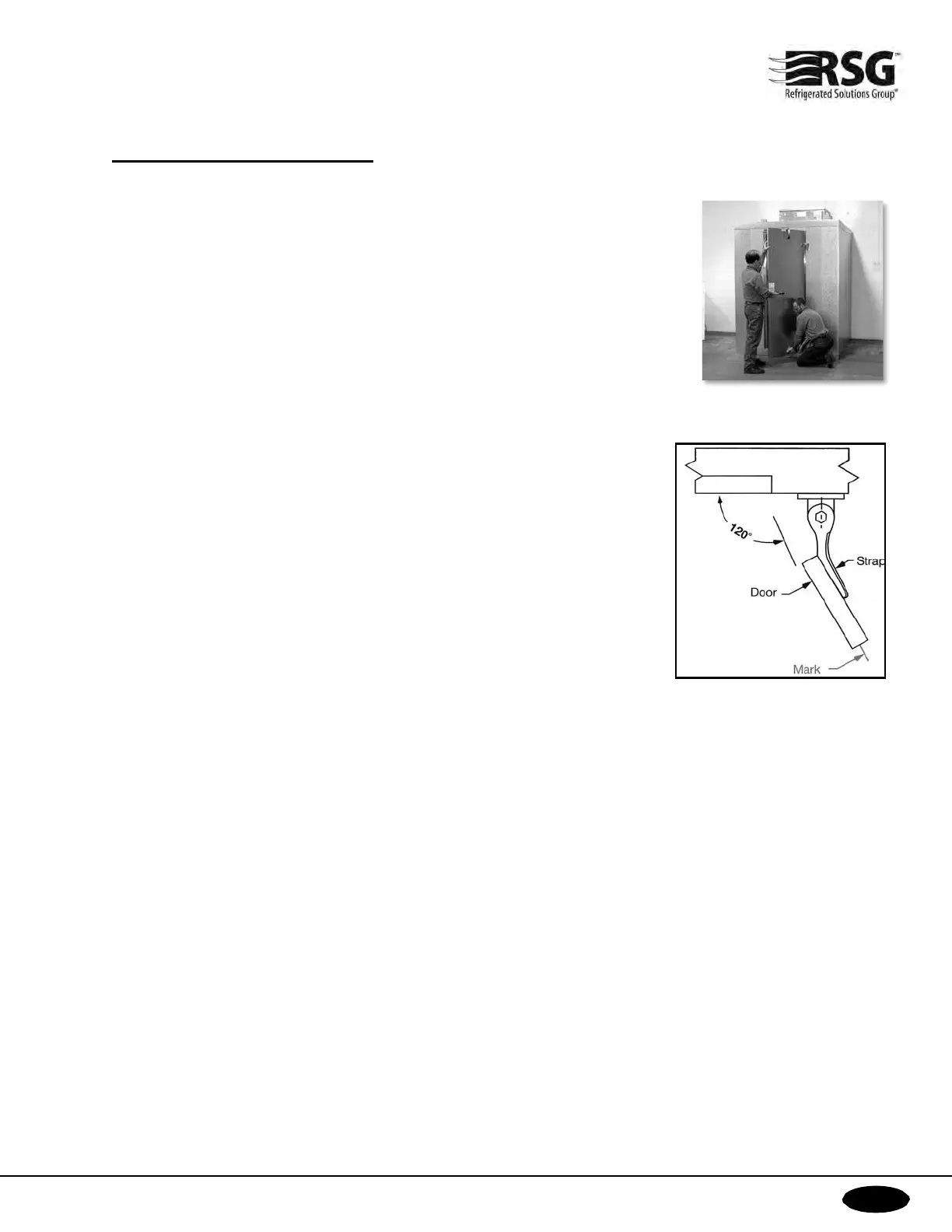

1.

Open door to dwell position, stopping at approximately 120°.

2.

Put mark on floor to indicate position of door, see sketch.

3.

Lift door off frame.

4.

To replace door, line up door with mark on floor.

5.

Place hex hole in hinge straps over hex rods and lower door.

RES

ETTING SPRING HINGES

For the top spring-loaded hinge, you will need to reset the spring/hexagon pin. With the door installed, closed and

locked, remove the screws from the spring-loaded hinge strap on the door only. You will need to hold the hinge strap

against the door to prevent the strap from springing out towards you after the screws are removed. Remove the

strap portion from the door by pulling upward. Hold the strap portion above the remainder of the hinge so that the

strap is flat against the door. Bring the strap portion back down towards the door so that it meets the hexagon pin.

You have now reset the spring. Insert the screws back into the strap and door. Note: Under normal conditions, the

spring has no tension when the door is closed.
