WALK-IN MAINTENANCE
DOO
R GASKET REPLACEMENT

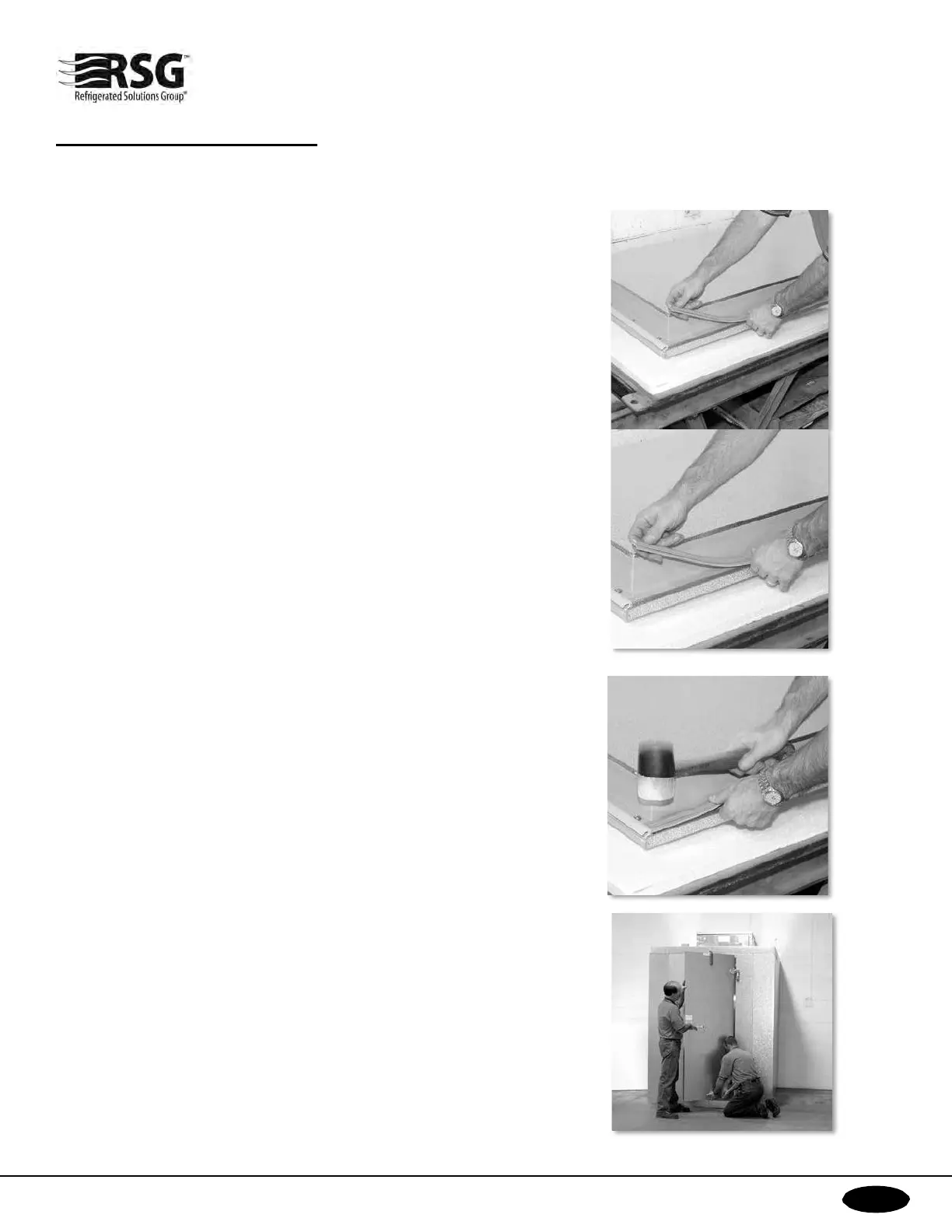

1.
Place the door, exterior face down, gasket up, on a clean, smooth surface
that will not mar or scratch the finish.
2.
The magnetic door gasket consists of a cavity containing the magnetic strip,
a bellows cavity that permits the gasket to conform to irregular surfaces, and
a base section that features a dart- shaped projection that serves as the
attachment means when it is forced into the slot in the door breaker.
3.
To remove the original magnetic gasket assembly, grasp the gasket at one
of the corners and pull the dart-shaped projection out of the retainer slot in
the door breaker. Pull slowly and examine your progress to avoid tearing the
projection which will then remain in the retainer slot.
4.
Remove the entire gasket assembly and examine the retainer slot to make
sure that it is free of gasket material or other debris.
5.
Starting at one corner, insert the dart-shaped projection of the replacement
gasket into the retainer slot and, using a rubber mallet, drive the dart into the
retainer slot. HINT: Cover the face of the rubber mallet with masking tape to
prevent smudging the gasket. Attach only about wo inches (2") of the gasket
in each direction away from the corner.
6.
Use the same procedure as in Step 4 at the remaining corners and midway
between the corners on the long sides of the door.
7.
Using the rubber mallet, drive the dart into the retainer slot working from
the center of each side toward the corners.
8.
Lift the gasket base on the outer edge of the gasket and examine the gasket
to determine if the dart is engaged by the retainer slot around the entire
perimeter of the door, except where the sweep gasket is attached. If the dart
has failed to engage in some areas, a small, slotted screwdriver blade can be
used to tuck the dart into the slot.
9.
Replace the door assembly. Simply reverse the instructions in the "Door
Assembly Removal" section.
