WALK-IN INSTALLATION
Electrical Connections
WALK-IN COOLER OR FREEZER WITH A SINGLE INTERIOR LIGHT MOUNTED ON THE DOOR
SECTION
CAUTION: ELECTRICAL CONNECTIONS TO THE WALK-IN MUST COMPLY WITH APPLICABLE
PORTIONS OF THE NATIONAL ELECTRICAL CODE AND ANY OTHER ELECTRICAL CODES THAT
MAY HAVE JURISDICTION OVER THE INSTALLATION!
A dedicated electrical power supply circuit for the walk-in is recommended.
WARNING! DISCONNECT THE SELECTED POWER SUPPLY CIRCUIT AND ATTACH A TAG TO THE
DISCONNECT SWITCH INDICATING THAT THE CIRCUIT MUST NOT BE ENERGIZED WHILE
SOMEONE IS WORKING ON THE LINE.
WIRING
The cooler or freezer door panel contains
several electrical components that were
prewired at the factory. They include the
anticondensation door opening heater,
the pilot light/switch and LED interior light
mounted on the door panel. NOTE:
It is the electrical contractor's
responsibility to provide the necessary
wiring, connections, conduit and
fittings to complete the hook-up.

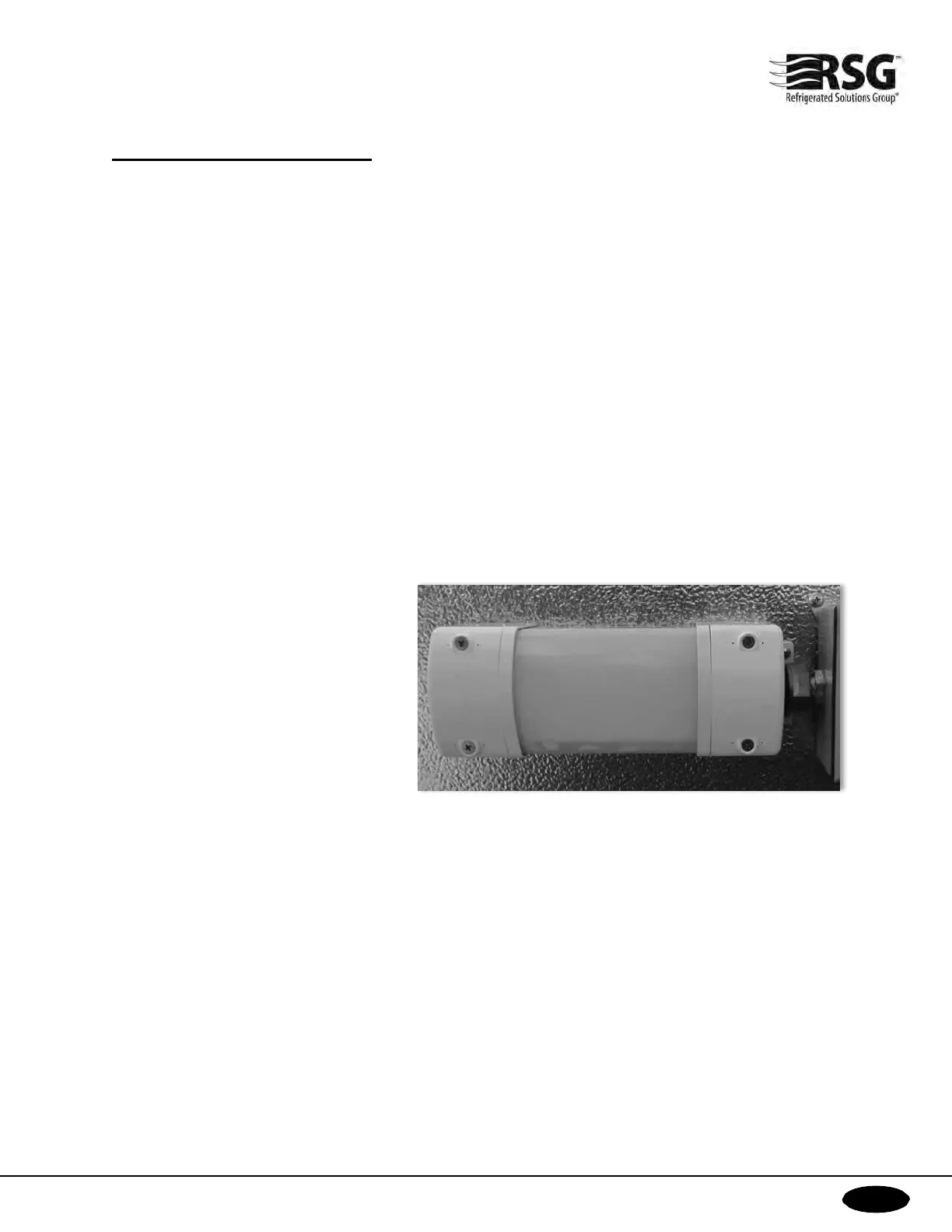

The junction box adjacent to the light
fixture contains the electrical leads that
are prewired to the electrical components
in the door section. Make your electrical
connections here.
Af
fixed to the interior of the door section is a label which describes the electrical characteristics and the
energy consumption described in watts and amperes.
