32
8/22 Rev. R 132617 ©2022 Refrigerated Solutions Group. All rights reserved.
WALK-IN INSTALLATION
MEMBRANE ROOF INSTALLATION INSTRUCTIONS
IMPORTANT NOTE:
IF THIS WALK- IN INCLUDES CEILING MOUNT CAPSULE-PAK™ REFRIGERATION SYSTEMS, PLEASE
REFER TO CAPSULE-PAK™ REFRIGERATION INSTALLATION MANUAL. ALSO, BE SURE THE INTERIOR
COIL IS HUNG CORRECTLY PER THE REFRIGERATION MANUAL INSTRUCTIONS BEFORE INSTALLING
THE MEMBRANE.

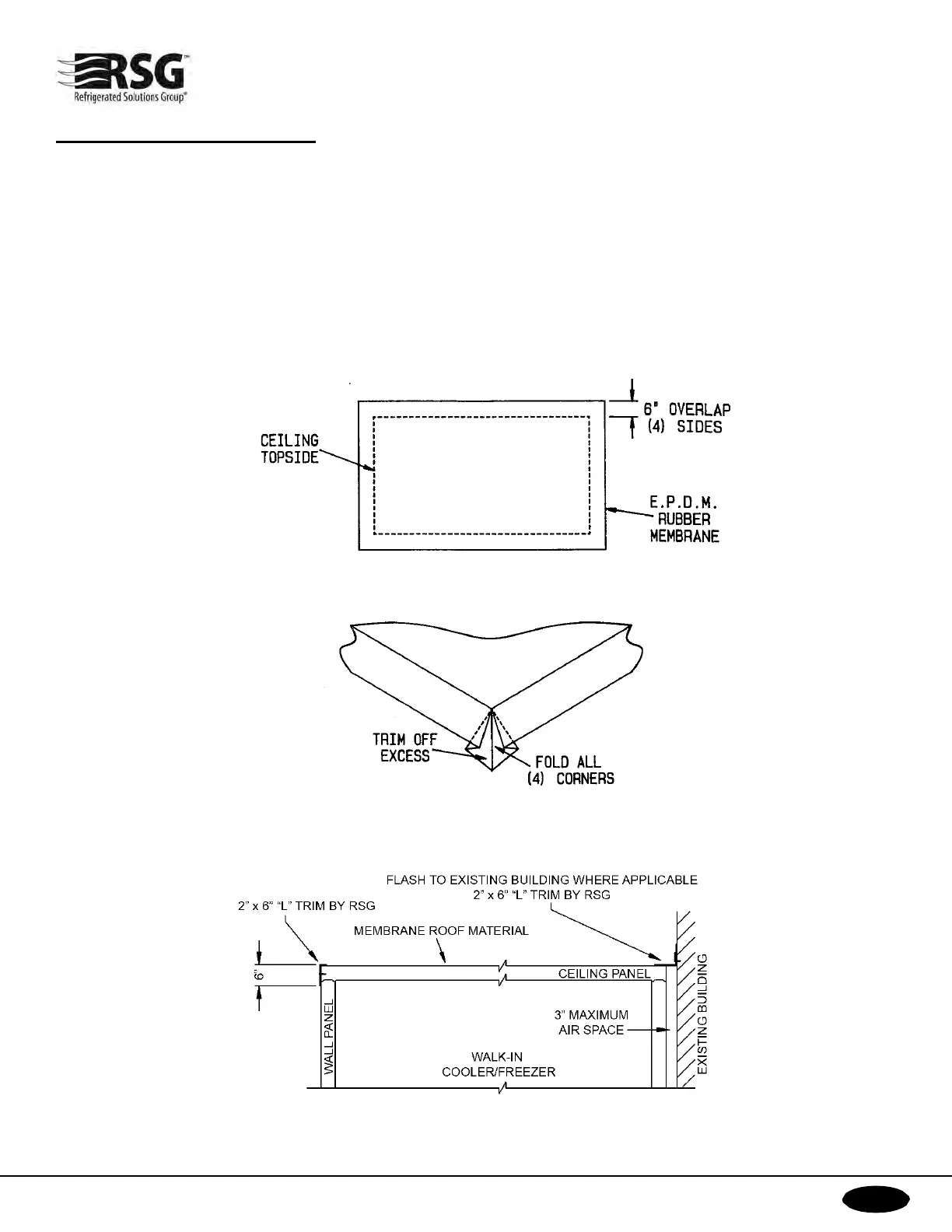

Step #1
After walk-in is completely assembled, lay E.P.D.M. over ceiling topside and trim to a 6" overlap on all four sides.
St
ep #2
Fold all four corners as shown below.
Step #3
Attach trim, refrigeration hood and door hood with sheet metal screws provided. On some models the trim
may have to be cut to fit.
Step #4
Trim off all excess rubber membrane from under aluminum trim and hoods with utility knife. Be careful not to scratch
the surface of the panels with the knife.
