WALK-IN INSTALLATION

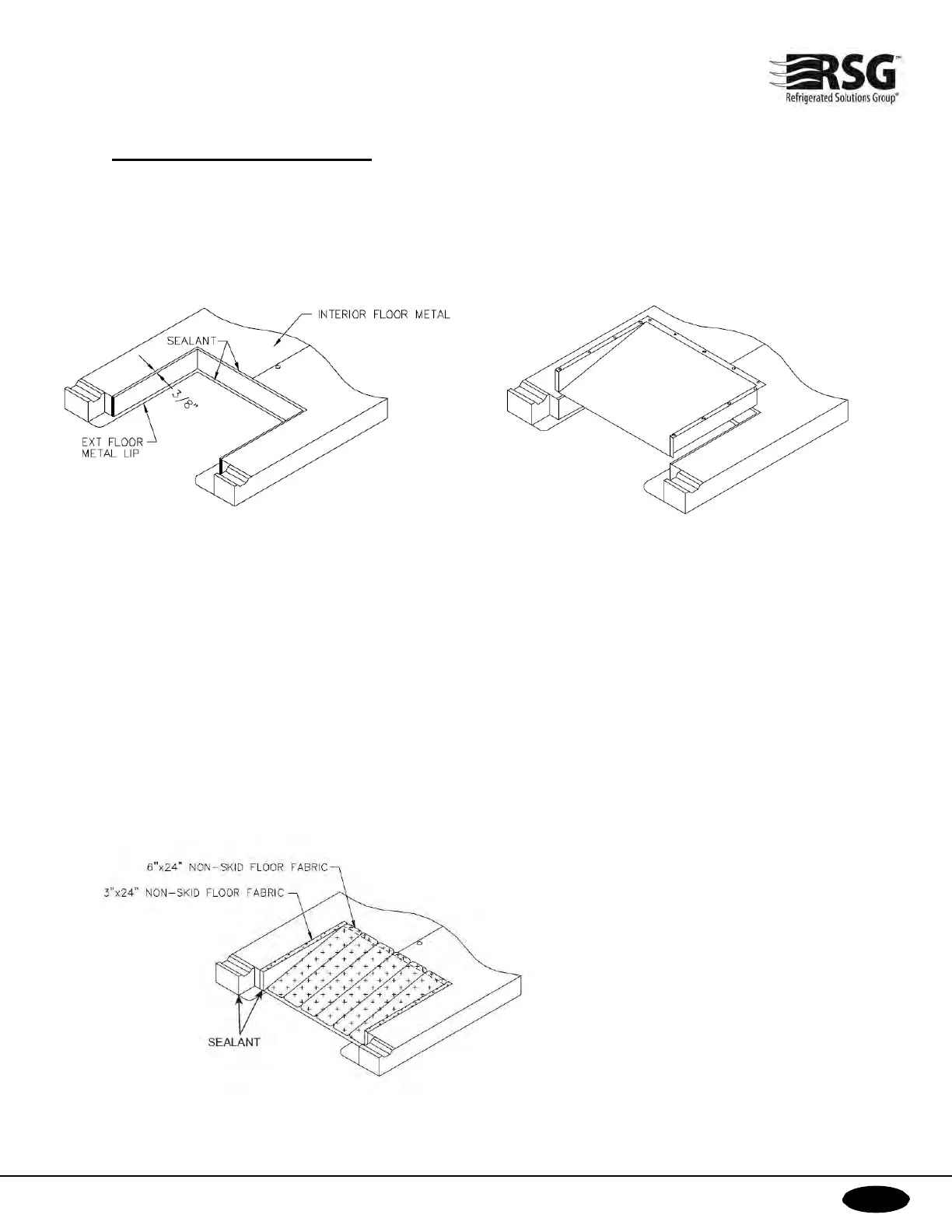

INTERIOR RAMP INSTALLATION INSTRUCTIONS
Step 1
After floor sections are in place and fully
locked together, apply approximately 1/8”
bead of sealant to the interior metal, 3/8” in
from the ramp cut out. Also apply
approximately 1/8” bead of sealant to the
center of the exterior metal lip.
Step 2
Place ramp into position by lining up the pre- drilled
holes in the ramp with those pre-drilled in the interior
floor then secure the ramp into the floor with the #8 x
1/2” screws provided
.
Step 3
Install the non-skid floor fabric. 6” x 24” non-
skid tape strips are applied to cover the ramp
and back seam of the ramp to
the floor panels. 3” x 24” non-skid tape strips
are applied to cover the side seams of the
ramp to the floor panels.
Apply sealant where the door section meets
the interior and exterior of the floor panel and
ramp. Also, apply sealant under the door
threshold.
