20

8/22 Rev. R 132617 ©2022 Refrigerated Solutions Group. All rights reserved.

WALK-IN INSTALLATION

SEALER GUIDE INSTALLATION

Locate the SEALER GUIDES. They are bundled together and packed along with the walk-in corner or wall panels

and are labeled accordingly. Sealer guides are strips of 3/8” plywood 2-1/4” wide and 8’ long as shown in Fig. 1.

Refer to the SEALER GUIDE DIAGRAM. Position them according to the diagram and cut the guides to fit.

Each sealer guide, when positioned properly, will have its outer edge precisely over the INSIDE OUTLINE drawn

on the building floor, Figure 2, and its outer edge will be exactly 7/8” from the outline which represents the foamed

sealer outer edge. The quality of workmanship performed in locating and securing the sealer guides will be

transmitted directly to the location of the foamed sealers (screeds) and, subsequently, to the overall construction

of the complete walk-in. BE EXACT! Refer to Figure 1 and Figure 2.

When all sealer guides are in position, make a final CHECK FOR SQUARENESS and secure them to the building

floor with fasteners that are appropriate for the surface. NOTE: This can either be a mechanical fastener or

construction grade adhesive. If the sealer guide is positioned over a polystyrene or polyurethane thermal breaker,

a compatible construction adhesive may be used.

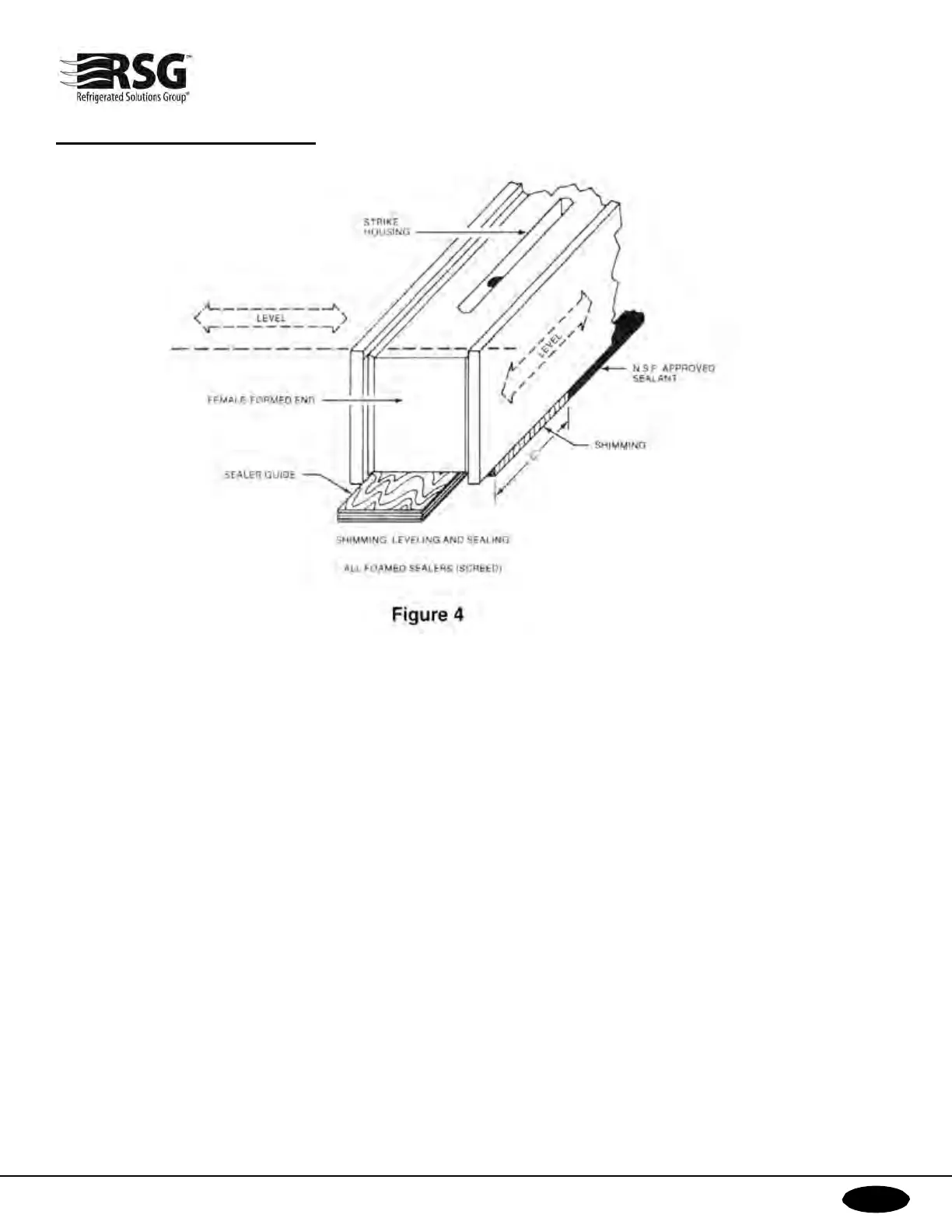

FOAMED SEALER (Screed) INSTALLATION

Refer to the FOAMED SEALER DIAGRAM. Identify and locate the sealer section that will be positioned directly

over the highest point which was determined earlier and marked on the building floor (Figure 3).

NOTE: All foamed sealers are male formed on one end and female formed on the opposite end. The configuration

of the ends is clearly indicated on the diagram. Also, make certain that the strike housing portion of the section

latches is visible on the upper edge of the sealer when it is in position (see Figure 1 and Figure 2).
