P3 PowerPort 2000 and 500 IP Safety, Installation and User Manual 15

To mount the device horizontally on a rigging truss:

1. Using both the supplied screws, fasten the safety cable attachment bracket to the back of the device.

2. Using the four supplied screws for each ear, fasten the two supplied short rack ears to the sides of the

device at the edges of the top surface.

3. Using hardened steel fasteners with locking nuts, fasten two half-coupler type rigging clamps that are

approved for the weight that they will support to the two short rack ears.

4. Install the device on the truss by fastening the rigging clamps onto the truss chord.

5. If there is any risk that the device may cause injury or damage if it falls, secure it by fastening an

approved safety cable to the safety cable attachment bracket and looping it around the truss or other

secure anchoring point. Remove as much slack as possible from the safety cable by looping it more

than once around the truss chord, for example.

To mount the device hanging vertically downwards on a rigging truss:

1. Using both the supplied screws, fasten the safety cable attachment bracket to the back of the device.

2. Using a hardened steel M10 bolt or screw, fasten a rigging clamp that

is approved for the weight that it will support into the threaded hole in

the side of the device. The bolt or screw must protrude minimum 10

mm (0.4 inches) and maximum 20 mm (0.75 inches) into the device

(see illustration on right)

3. Install the device hanging vertically on the truss by fastening the

rigging clamp onto the truss chord.

4. If there is any risk that the device may cause injury or damage if it

falls, secure it by fastening an approved safety cable to the safety

cable attachment bracket and looping it around the truss or other secure anchoring point. Remove as

much slack as possible from the safety cable by looping it more than once around the truss chord, for

example.

Surface mounting

To mount the P3 PowerPort 500 IP Rental on

a secure, flat surface:

1. See illustration on right. Using the four

supplied screws for each ear, fasten the

two supplied short rack ears (arrowed) to

the sides of the device as shown. The

safety cable attachment bracket is not

required.

2. Fasten the device to the surface using

suitable screws or bolts passed through

the short rack ears.

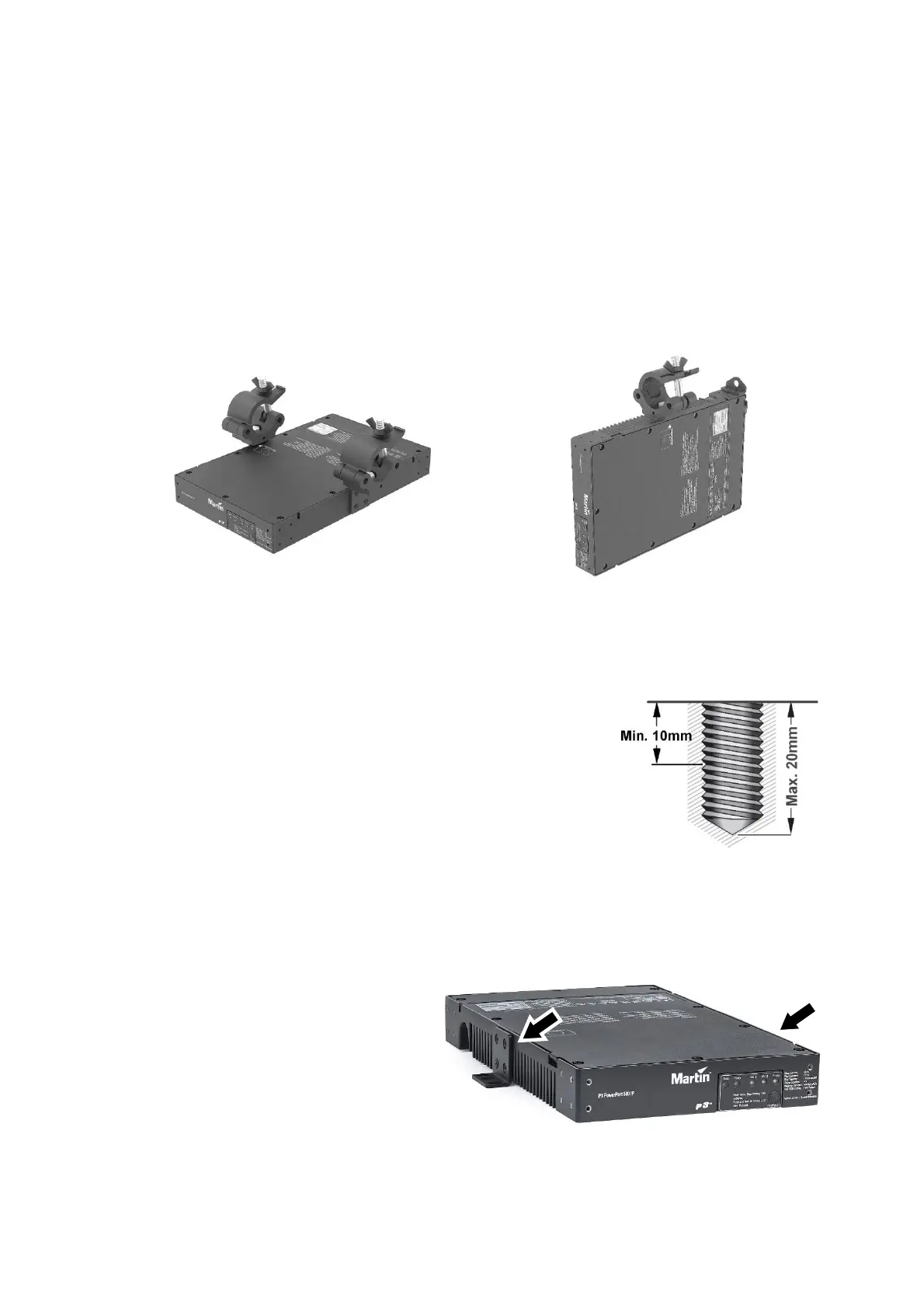

Figure 4. P3 PowerPort 500 IP Rental truss mounting options

Horizontal mounting

Vertical mounting
