Exterior Projection Pro Compact User Manual, Rev. A 37

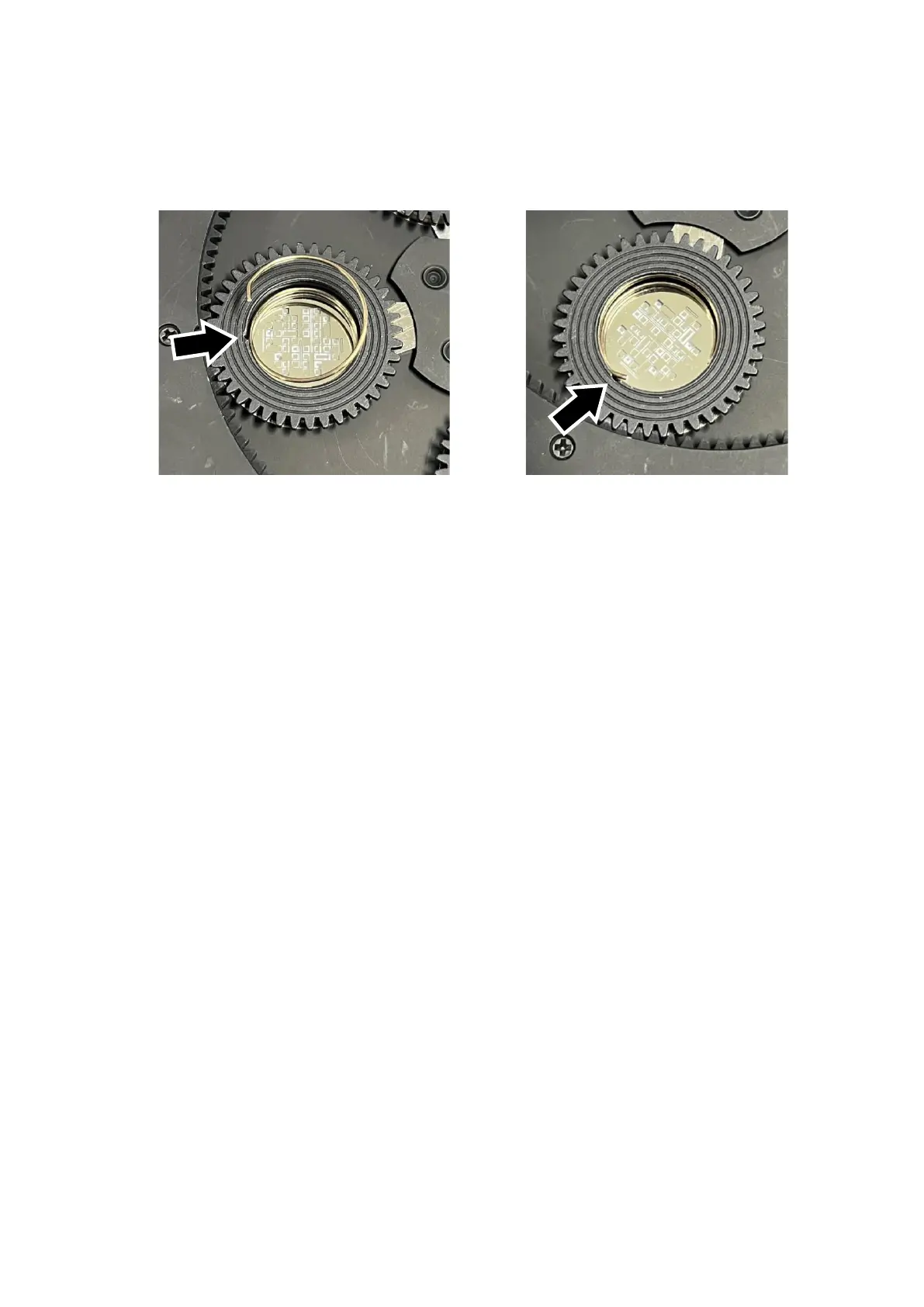

4. See photos below. Place the spring over the gobo with the bent end of the spring upwards.

Arrange the spring so that the bend in the end of the spring lines up with the notch (arrowed) in

the goboholder. This will give enough space to insert a small screwdriver and make future removal

of the gobo much easier.

5. Push the spring into the goboholder, using the bent end of the spring to twist the spring counter-

clockwise slightly, which will reduce the diameter of the spring. Allow the spring coils to expand

and engage completely in the groove in the goboholder. Check that the spring and gobo are now

secure and that the gobo is sitting flat in the goboholder.

6. Reinstall the gobo module in the fixture and reinstall the effects compartment cover as described

in the Safety and Installation Manual included at the end of this User Manual.

Gobo care

Gobos are delicate and highly stressed components. To get the best performance:

• Store all gobos in a dust-free environment with approx. 50% humidity.

• Wear clean, lint-free cotton gloves when handling gobos.

• Avoid scratching coated and uncoated sides.

• Do not place a gobo with the coated side face-down on any surface.

• Avoid touching other gobos: the sharp edge of one gobo can scratch the others.

• Keep gobos perfectly clean to reduce the risk of heat damage.

• Clean the coated side of gobos with dust-free and oil-free compressed air only.

• Clean the uncoated side of gobos with photographic quality lens-cleaner and optics cleaning

tissues. Use a repeated dabbing action rather than a rubbing action.
