36 Martin

Exterior Projection Pro Compact User Manual, Rev. A

Replacing a rotating gobo

Rotating gobos in the Exterior Projection Pro Compact are installed in goboholders in the gobo

modules.

To replace a gobo:

1. Remove the effects compartment cover as described in the Safety and Installation Manual

included at the end of this User Manual. If a gobo module is already installed in the fixture, remove

it, using the Safety and Installation Manual as a guide and place the module on a clean, flat work

surface with the goboholder teeth facing upwards.

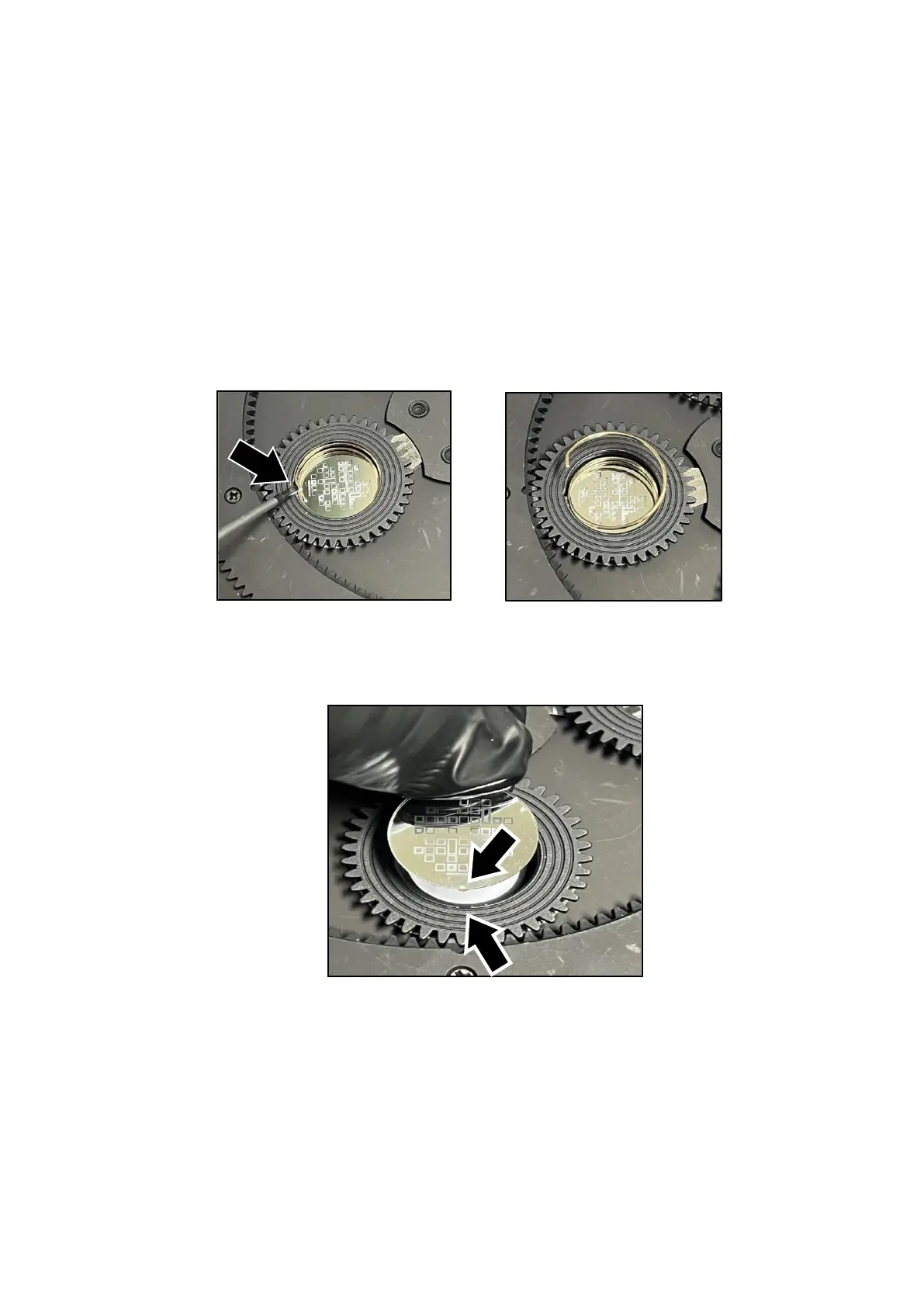

2. See photos below. Each gobo is held in place in the goboholder by a retaining spring. Taking care

to avoid scratching or applying pressure to the gobo, lever the bent end of the spring towards the

center and then upwards with a 1.5 mm flat-bladed screwdriver or similar precision tool. Remove

the spring and lift the gobo out of the goboholder.

3. See photo below. Hold the new gobo with the more reflective side (or the true, unreversed, side in

the case of a text/image gobo) facing upwards towards the teeth in the goboholder. Match up the

alignment marks (arrowed) in the gobo and goboholder. Lay the new gobo flat in the goboholder.
