Exterior Projection Pro Compact User Manual, Rev. A 35

Preparing gobos

Sequence It and Lava Shimmer glass gobos have a retaining spring 1 mm (0.039 in.) in diameter. This

spring is compatible with metal gobos 0.5 mm (0.020 in.) thick and glass gobos 1.1 mm (0.043 in.)

thick.

The Ripple structured glass gobo has a retaining spring of diameter 0.8 mm

(0.031 in.).

If you install a custom gobo with a thickness of 2.8 - 3.0 mm (0.110 – 0.120 in.),

you will need to shorten an 0.8 mm diameter retaining spring. See drawing on

right. Cut approximately 16 mm off the unbent end of the 0.8 mm diameter spring

as shown in the drawing and use that shortened spring with the custom gobo.

Gobo mounting rings

If you replace one of the standard gobos with a custom gobo, we recommend that you glue a gobo

mounting ring with a key onto the gobo. The key fits into a keyway in the goboholder and prevents the

gobo from moving in the goboholder and losing its correct orientation over time.

You can order gobo mounting rings in sets of 10 rings as an accessory from your Martin supplier. Ask

for P/N MAR-90560270.

To glue a gobo to a mounting ring:

1. Obtain a flame-retardant silicone adhesive sealant that bonds to glass and metals and that is

suitable for use in temperatures from -50° to 250° C (-58° to 482° F) continuous operation.

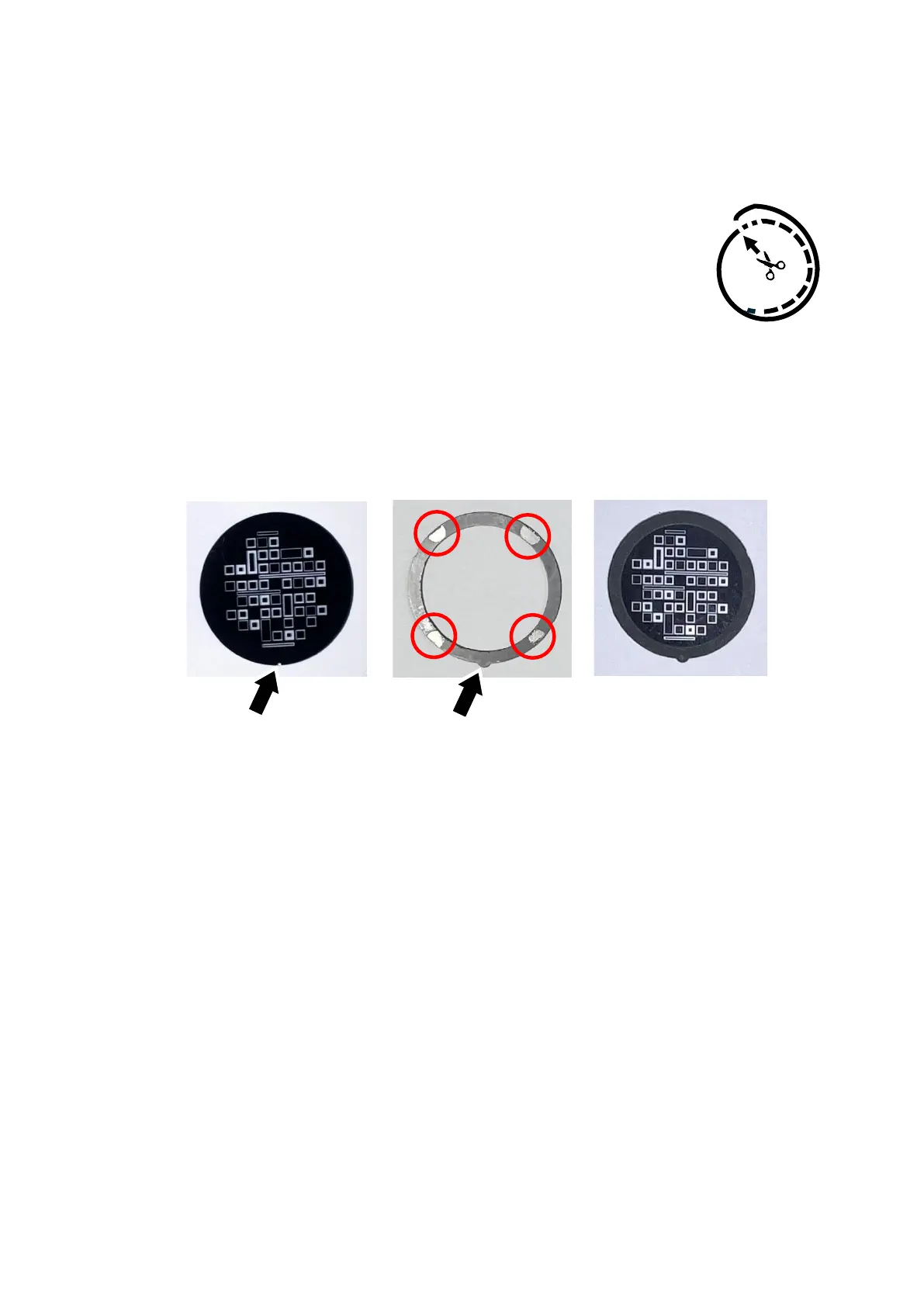

2. See photos above. Line up the reference mark (arrowed) on the gobo with the key (arrowed) in the

mounting ring.

3. Check that the gobo and mounting ring are clean and free from grease. Apply a small amount of

adhesive to the uncoated surface (circled) of the mounting ring.

4. Stick the side of the mounting ring with adhesive onto the coated side of the gobo. If you are using

the mounting ring on a structured glass gobo, stick the side of the mounting ring with adhesive

onto the flat side of the gobo.

5. Allow the adhesive to dry before moving the gobo and ring.
