Exterior Projection Pro Compact User Manual, Rev. A 33

Replacing gobos

The gobos supplied with the 4-slot gobo wheel module and the single-gobo module are user-

replaceable, and you can replace them with custom gobos made to your own design. Gobos are

exposed to severe thermal stresses, so custom gobos must meet the specifications and quality

standards of the Martin gobos supplied with the fixture:

Suitable material ....................................... Borosilicate glass, coatings heat-resistant to 450°C (842° F)

Alternative material ................................... Aluminum 1060, paint on front lens side, 450° C (842° F)

Gobo diameter .......................................... 19.0 mm +0/-0.3 mm (0.74 in. +0/-0.02 in.)

Maximum image diameter ........................ 15 mm (0.59 in.)

Glass gobo thickness, minimum ............... 1.1 mm ±0.1 mm (0.045 ±0.004 in.)

Glass gobo thickness, maximum .............. 3.0 mm ±0.3 mm (0.12in. ±0.012 in.)

Aluminum gobo thickness ......................... 0.5 mm ±0.02 mm (0.020 in. ±001 in), high-temperature

paint

Sequence It and Lava Shimmer are coated glass gobos and share the same specifications, but the

Ripple gobo is structured glass and is thicker. Note that the two different types of gobo have different

retaining springs.

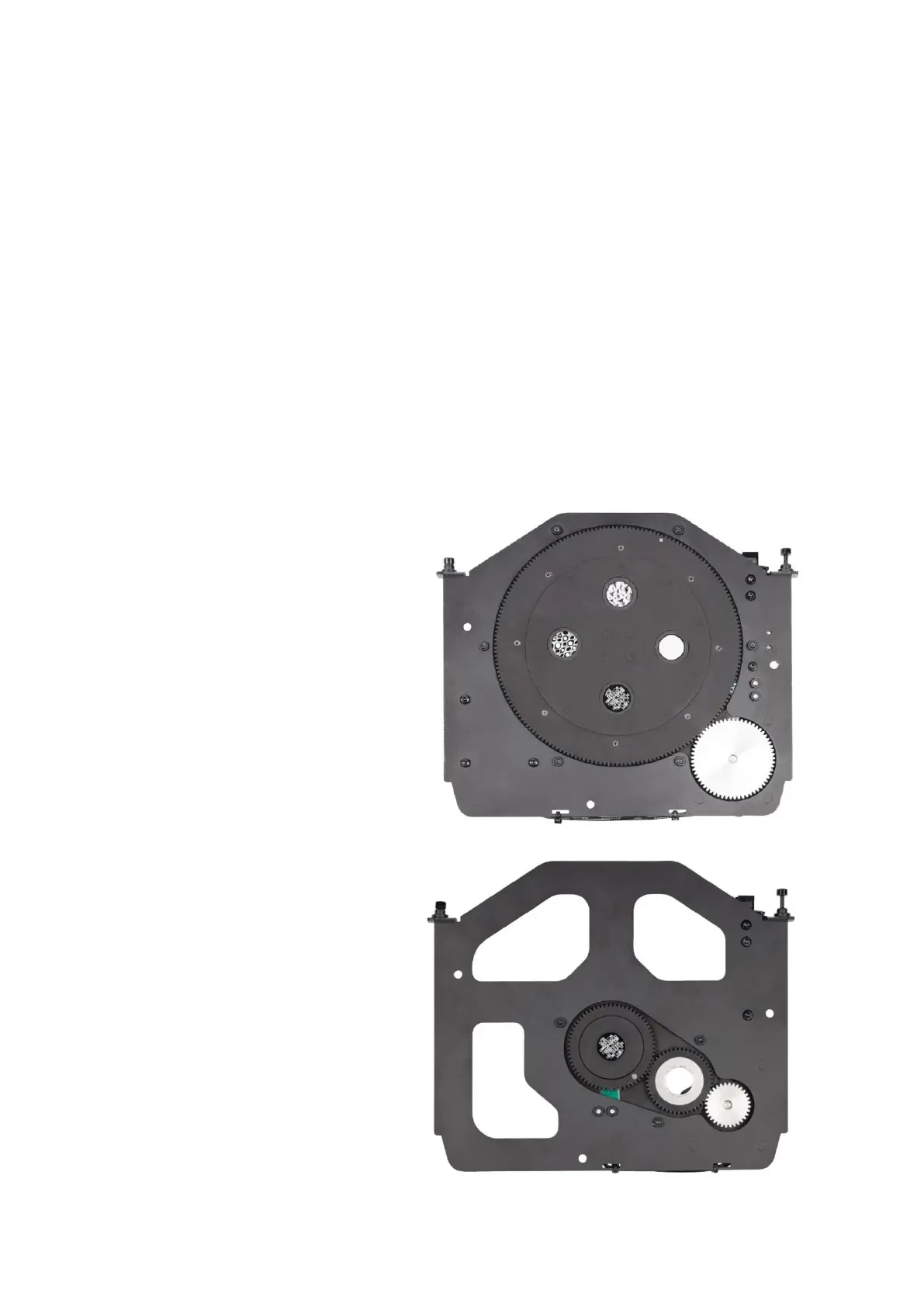

See photo on right. The four-slot gobo

wheel module is supplied with the

Sequence It, Lava Shimmer and Ripple

gobos installed as shown.

See photo on right. The single rotating

gobo module is supplied with the

Sequence It gobo installed as shown.

Open

Slot 2

Slot 4

Slot 3

Single rotating gobo

(constantly deployed)
