14 Exterior PixLine™ User Manual
Exterior PixLine 10
Exterior PixLine 10 standard length fixtures are 320 mm or 1280 mm long.
• In all locations where there may be temperature variations of +/- 5° C (+/- 9° F) or more, install
standard and custom length Exterior PixLine 10 fixtures with an end-to-end gap of approximately10 mm
between them. This means that there will be a one-pixel gap between Exterior PixLine 10 fixtures.
• In indoor locations that remain at constant temperature, you can install fixtures with no end-to-end
gap between them. This will maintain a constant 10 mm pixel pitch across two or more fixtures and avoid
the one-pixel gap between fixtures.
Installing using mounting profile
To simplify installation on a surface, you can install Exterior PixLine mounting profiles on the surface and
then fasten fixtures into the profiles. The profiles are deep enough to conceal a total of three cable runs.

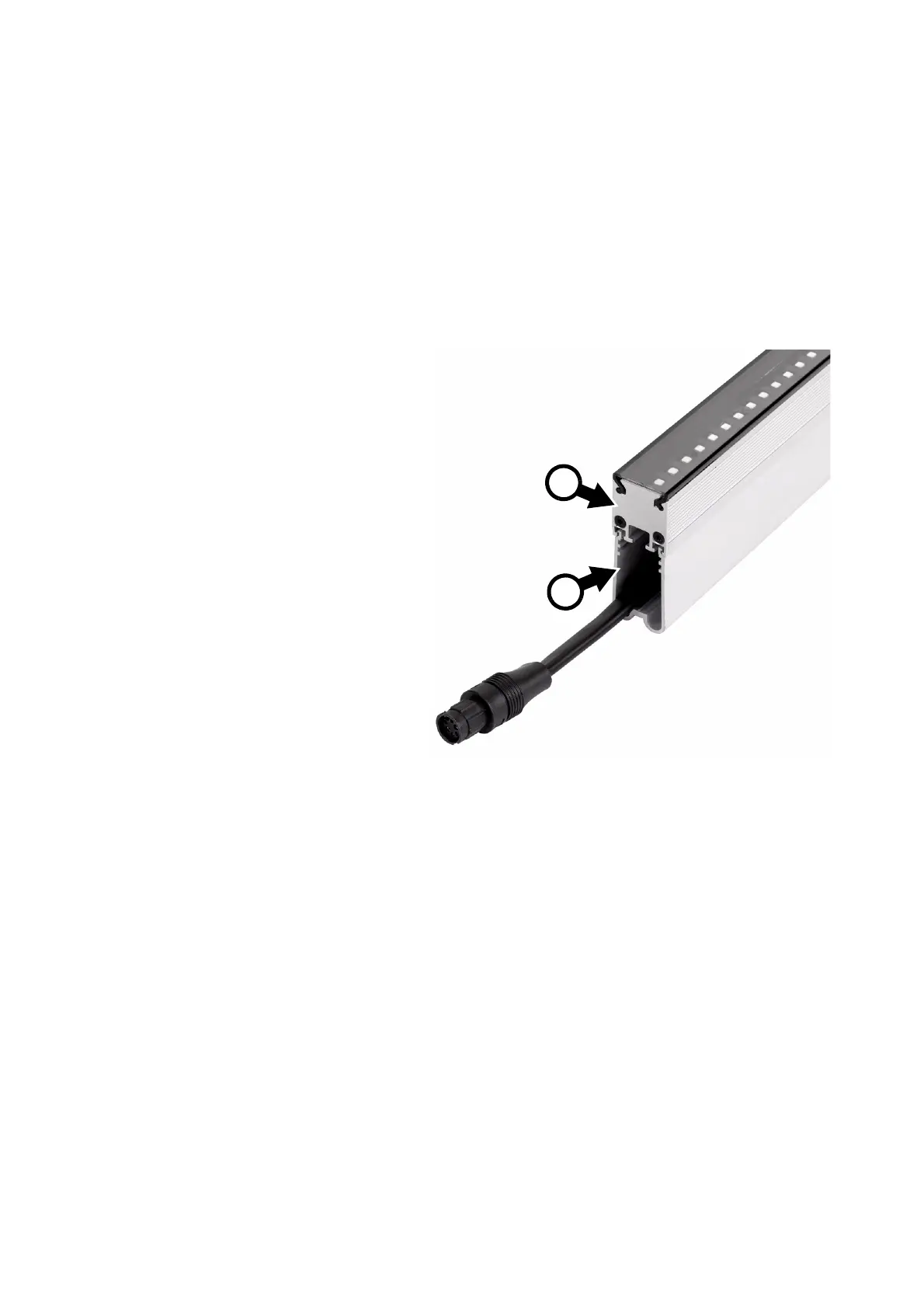

See Figure 4. To install an Exterior
PixLine fixture A on a surface using
the mounting profile B designed for
the product:
1. Make sure that you have the
same length of mounting profile
as the length of the fixtures.
2. If necessary, allow end-to-end
gaps between profiles (see
“Thermal expansion, end-to-end
gaps and pixel pitch” on page 13).
3. With reference to “Dimensions” on
page 2, mark up the mounting
surface or structure and prepare
holes to accept the fasteners that
you will pass through the
mounting profiles in the
installation. Insert screw plugs if
necessary for a secure
installation.
4. Obtain grade 8.8 strength 6 mm
diameter fasteners (screws,
screwbolts, bolts, etc.) that are
suitable for the application. You
will need one fastener per 6.5 mm
diameter hole in the mounting
profile. Apply an electrically
insulating coating such as Delta
Seal to fasteners to prevent contact between the aluminum profile and the fasteners. If necessary, use
electrically insulating material to prevent contact between the aluminum profile and any other metals
when the profile is installed. Fasten each mounting profile to the surface or structure.
5. There is space for you to conceal up to three cable runs in the mounting profile.
Figure 4: Mounting profile: end view
A
B
