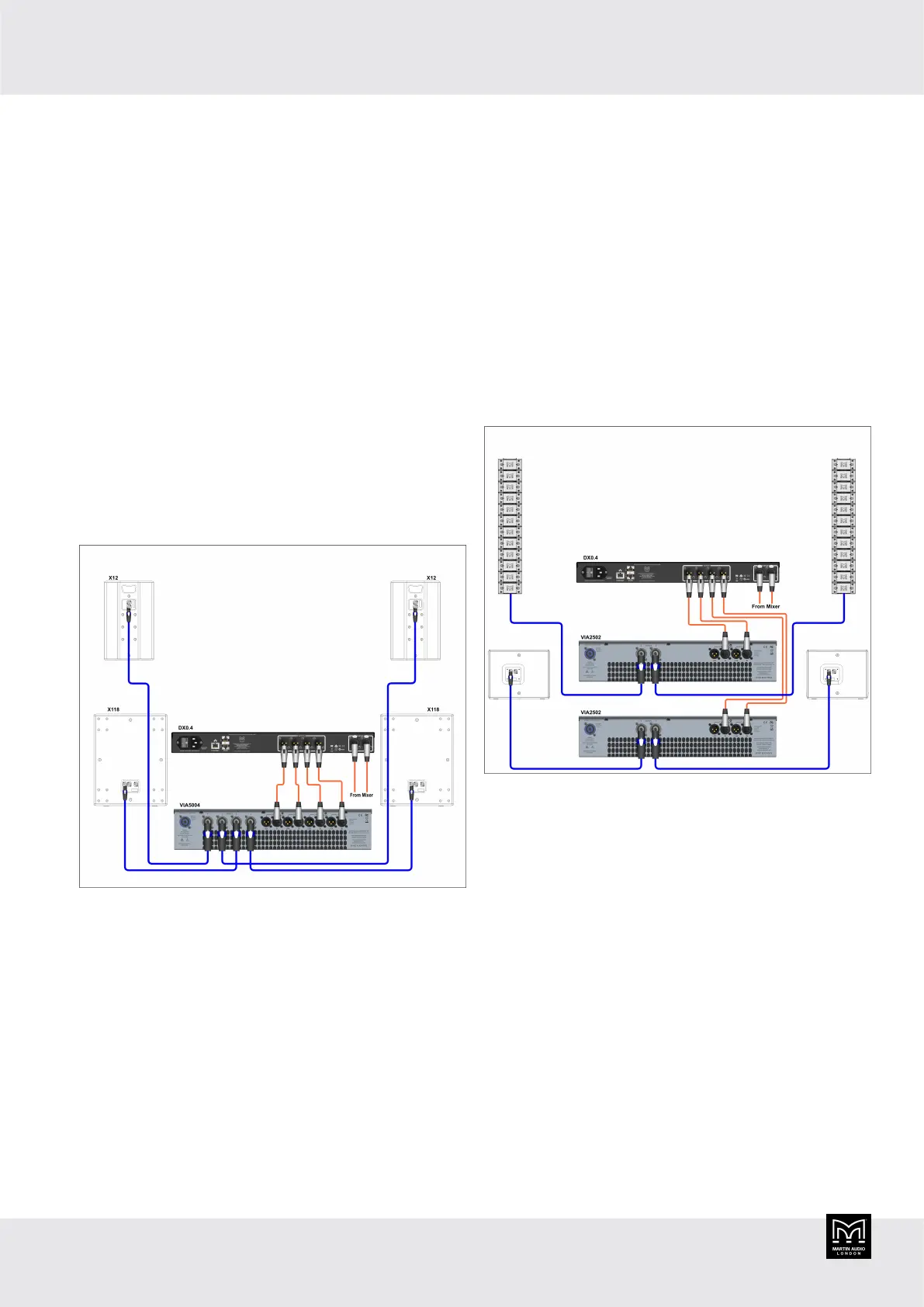

Example systems
The following sections show hook-up diagrams for six
example system setups:
▪ BlacklineX12 and X118 subs (page 30)
▪ O-Line arrays and SX112 subs (page 30)
▪ Two pairs of LE200 monitors (page 31)
▪ CDD12, CDD6 and SX212 subs (page 31)
▪ THV and SX118 subs (page 32)
▪ BlacklineX12 and SXC115 subs (page 32)
For an example of how to configure a system using the
desktop app, see the section Configuring an example
system in the desktop app user guide (page 6).
BlacklineX12 and X118 subs
This system is a typical BlacklineX portable system
suitable for gigging bands and DJs in pubs, bars and small
clubs. You configure the DX0.4 to run the system in stereo
and the system is driven actively bi-amped. The left and
right line-level XLR outputs from a mixer feed the A and B
XLR inputs of the DX0.4 Processor.
The XLR outputs 1 to 4 of the DX0.4 feed the XLR inputs
1 to 4 of a Martin Audio VIA5004 four-channel power
amplifier.
The CH1 and CH2 NL4 speaker outputs of the power
amplifier feed two Martin Audio X118 subwoofers located
either side of the stage.
The CH3 and CH4 NL4 speaker outputs of the amplifier
feed the inputs of two Martin Audio X12 loudspeakers.
These are positioned on top of the X118s using a distance
bar (such as the HTKCT04) to get good height on the
X12s. This ensures that the higher frequencies aren't
blocked by audience members.
To configure the DX0.4, you recall the output presets for
the X118 and X12 to the appropriate channels.
O-Line arrays and SX112 subs
This system features two 12 box O-Line arrays and a
pair of SX112 subwoofers. This is a typical system for
lecture theatres, conference rooms and small houses of
worship where vocal clarity and dispersion is the priority.
You could also use this system for pre-recorded music,
requiring a full range performance.
Left and right from the mixer feed inputs A and B of
the DX0.4 or DX0.6. The outputs feed two independent
amplifiers, this time each amplifier is a Martin Audio
VIA2502. Outputs 1 and 2 are sub out; you can configure
these feeds in mono, as there is no stereo information in
the sub band.
The outputs of the sub VIA2502 feed the NL4 inputs
of the two SX112 subwoofers. In the diagram shows
them positioned left and right but they would perform
well centrally next to each other if there is a suitable
location in the venue, such as under a stage. A central
configuration of subs will avoid the inevitable “power
