alley” that a left and right deployment will always
produce.
Outputs 3 and 4 from the DX0.4 or DX0.6 route to the
inputs of the second VIA2502. The outputs from this
amplifier route to the O-Line arrays.
In this example, you could configure outputs 1
and 2 using the output presets for the SX112. To
calculate the equalisation for the O-Line array, use
Martin Audio's Display 2 software (see
martin-audio.com/
support/software) and select the option for Passive EQ in
the EQ tab. Note that a fully optimised O-Line array isn't
possible with the DX0.4 and DX0.6 processors. For that,
you need a DX4.0 controller or an iKON amplifier.

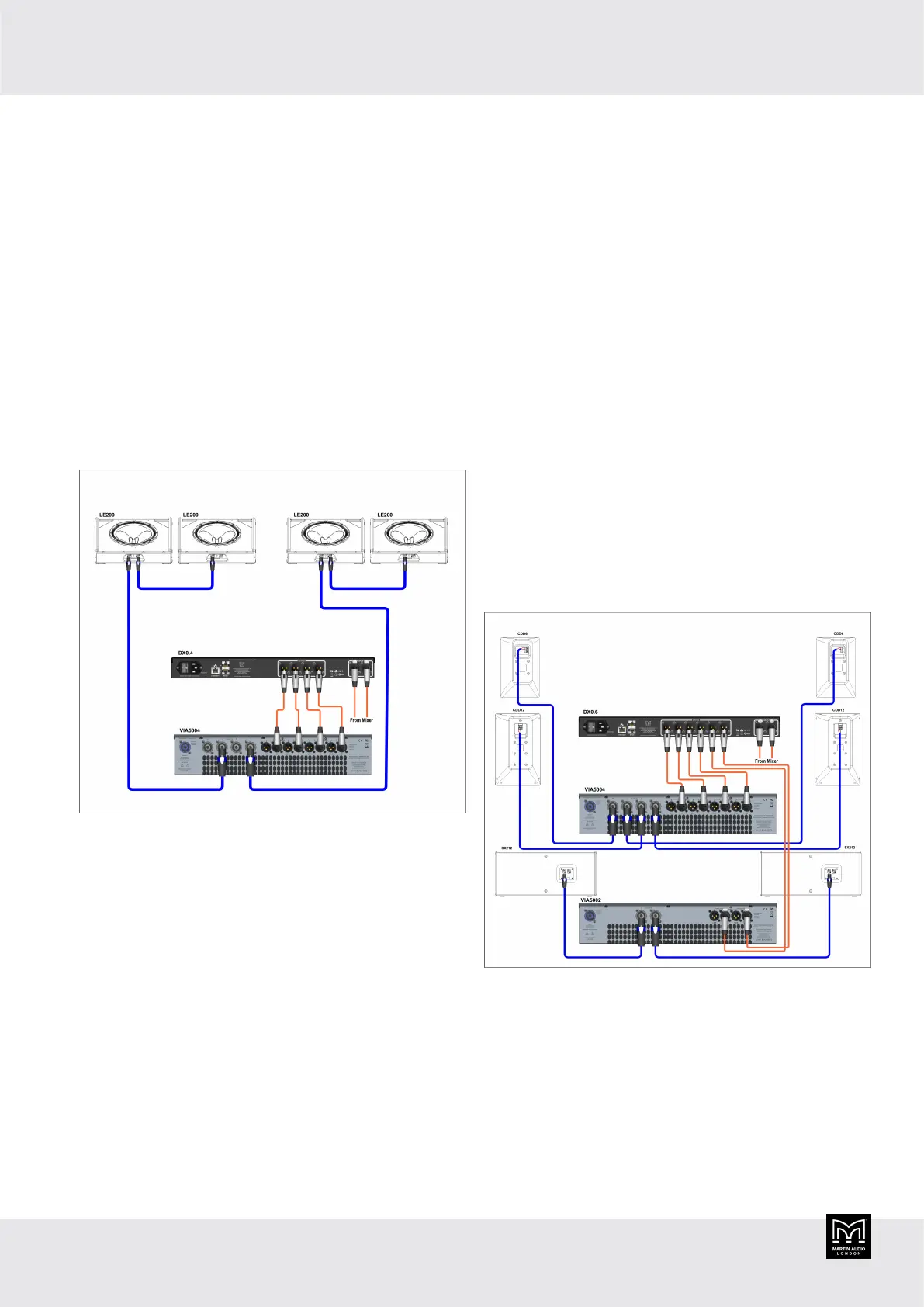

Two pairs of LE200 monitors
This system uses the DX0.4 or DX0.6 as a two-channel
crossover to run two pairs of LE200 monitors in bi-amp
mode. This would suit a duo playing clubs or larger
venues who need good quality monitors on a tight budget.
The LE200 monitors use the CDD driver technology to
give phenomenal stage coverage in a lightweight low-
profile enclosure. Bi-amping gives the ultimate control to
produce the best possible sound quality.
The inputs of the DX0.4 or DX0.6 are fed from the system
mixer. With this setup, the monitor feeds will usually be
from pre-fade auxiliary sends, either from the front of
house mixer or from a dedicated monitor desk.
The system uses a four channel Martin Audio VIA5004
which saves rack space, weight and cost. Outputs 1 to 4
from the DX0.4 or DX0.6 are routed to inputs 1 to 4 on
the amplifier. Channels 1 and 2 drive the low frequency
and high frequency of the first pair of monitors. Channels
3 and 4 do the same for the second pair.
All four monitors need to be switched to bi-amp on the
input connector panel. This routes the signals on channel
1+/- of the NL4 connectors to the low frequency section of
the driver and channels 2+/- to the compression driver.
The speaker cable will need to be 4 core. All four channels
must be wired to the NL4 at both ends. The NL4s at the
amplifier outputs connect to outputs 1 and 3, these carry
not just that channel output on pins 1+/- but also the next
channel on pins 2+/- specifically to make it easy to power
bi-amped speakers. This ensures that both low and high
frequency signals are routed down the single cable.
The pairs of LE200s are linked with a short 4-core NL4
lead. The diagram shows these cables connecting to the
main connector panel, but it may be neater to use the
parallel connectors in the handle pockets.
To configure the DX0.4 or DX0.6, you use the output
channel presets for the LE200 LF and HF recalled on the
appropriate channels.
CDD12, CDD6 and SX212 subs
This is a permanently installed system featuring two
models from the CDD range, the CDD12 and CDD6,
coupled with a pair of SX212 subs. This would be a
suitable installed system in a bar where the main area
is covered by the CDD12 and where a secondary space
is covered by the CDD6. This system uses the DX0.6 as
the system processor taking a feed from a signal source
such as a mixer. The system is run in stereo with DX0.6
outputs 1 and 2 feeding the subwoofer, outputs 3 and 4
DX0.4 User Guide
31
