BlacklineX USERGUIDE

BlacklineXUserGuideV2.1 24



…………

SystemD‐AddingSubwooferswithasecond amplifier



Productsthatmaybeusedwiththiswiring;‐

BlacklineX8plusX115 (DX0.5Preset3) BlacklineX10plusX115 (DX0.5Preset7)

BlacklineX8plusX118 (DX0.5Preset4) BlacklineX10plusX118 (DX0.5Preset8)

BlacklineX8plusX218 (DX0.5Preset4) BlacklineX10plusX218 (DX0.5Preset8)



BlacklineX12plusX115 (DX0.5Preset11) BlacklineX15plusX115 (DX0.5Preset15

)

BlacklineX12plusX118 (DX0.5Preset12) BlacklineX15plusX118 (DX0.5Preset16)

BlacklineX12plusX218 (DX0.5Preset12) BlacklineX15plusX218 (DX0.5Preset16)

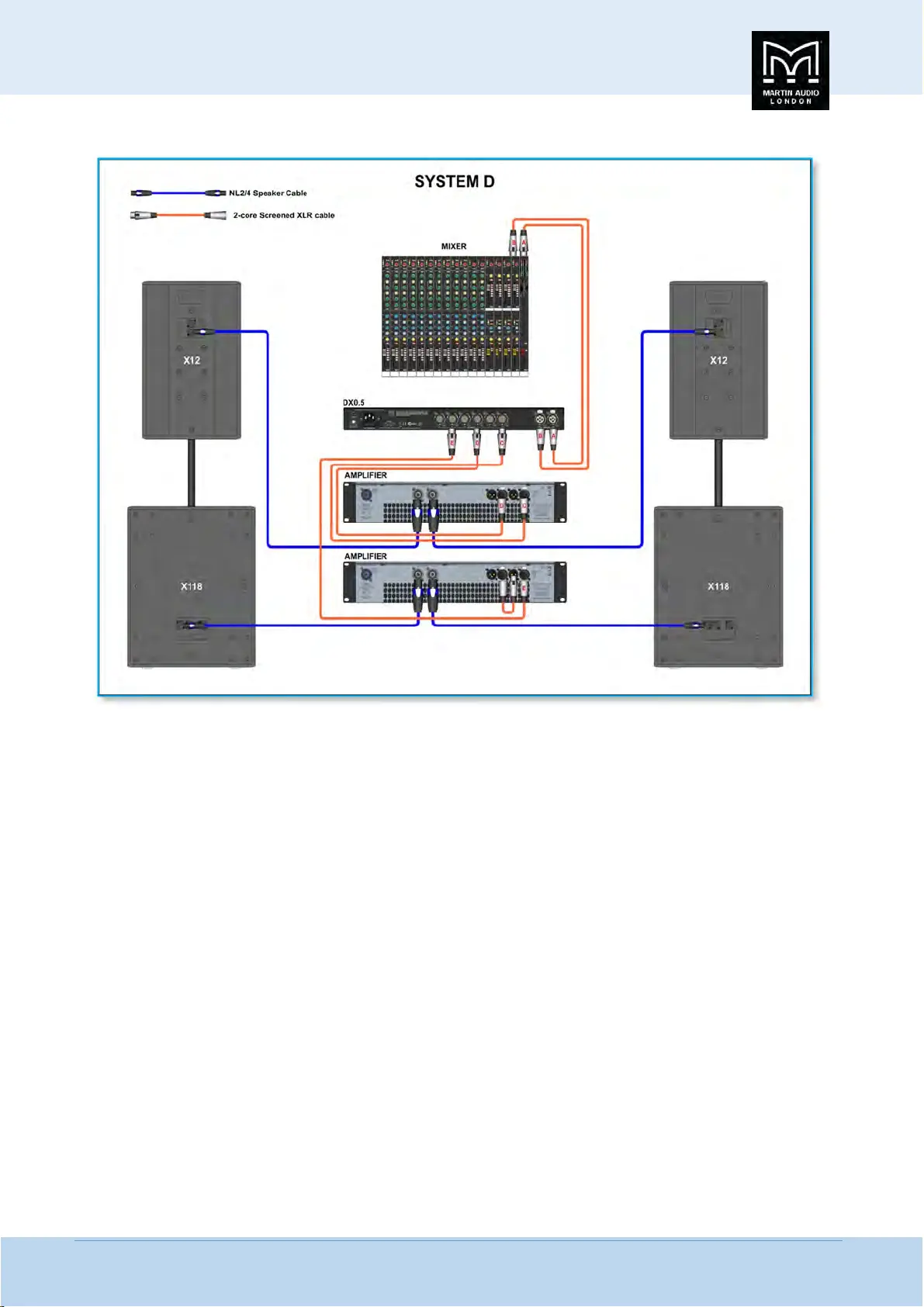

Thissystemadds  apair ofsubwooferswhichareruninmonousin g asecondamplifier. Thisconfigurat

ionallowstheuse of a

dedicatedhigh‐poweramplifierforthesubstodeliverthemaximumoutputcapability.

ThereareleftandrightconnectionsfromthemixertotheinputoftheDX0.5.OutputChannels1and3ontheDX0.5connectto

inputs1and2ontheamplifierfortheful

lrangecabinetusingapairofshortXLRcables.AnXLRcableisconnectedfromoutput 

channel5ontheDX0.5toinput1onthesubwooferamplifier. AfinalshortXLRlinkschannels1&2

SpeakonNL2orNL4cablesgofromthefirstamplifieroutpu

tchannels1&2totheleftandrightfullrangespeakers,andSpeakon

NL2orNL4speakercablesgofromthesubwooferamplifieroutputs1&2totheSubwooferinputs.

Youwillalsoneedtochoosethebestmatchofamplifierforthespeakers,seethechapteronamplif

ierselection.
