BlacklineX USERGUIDE

BlacklineXUserGuideV2.1 25



…………

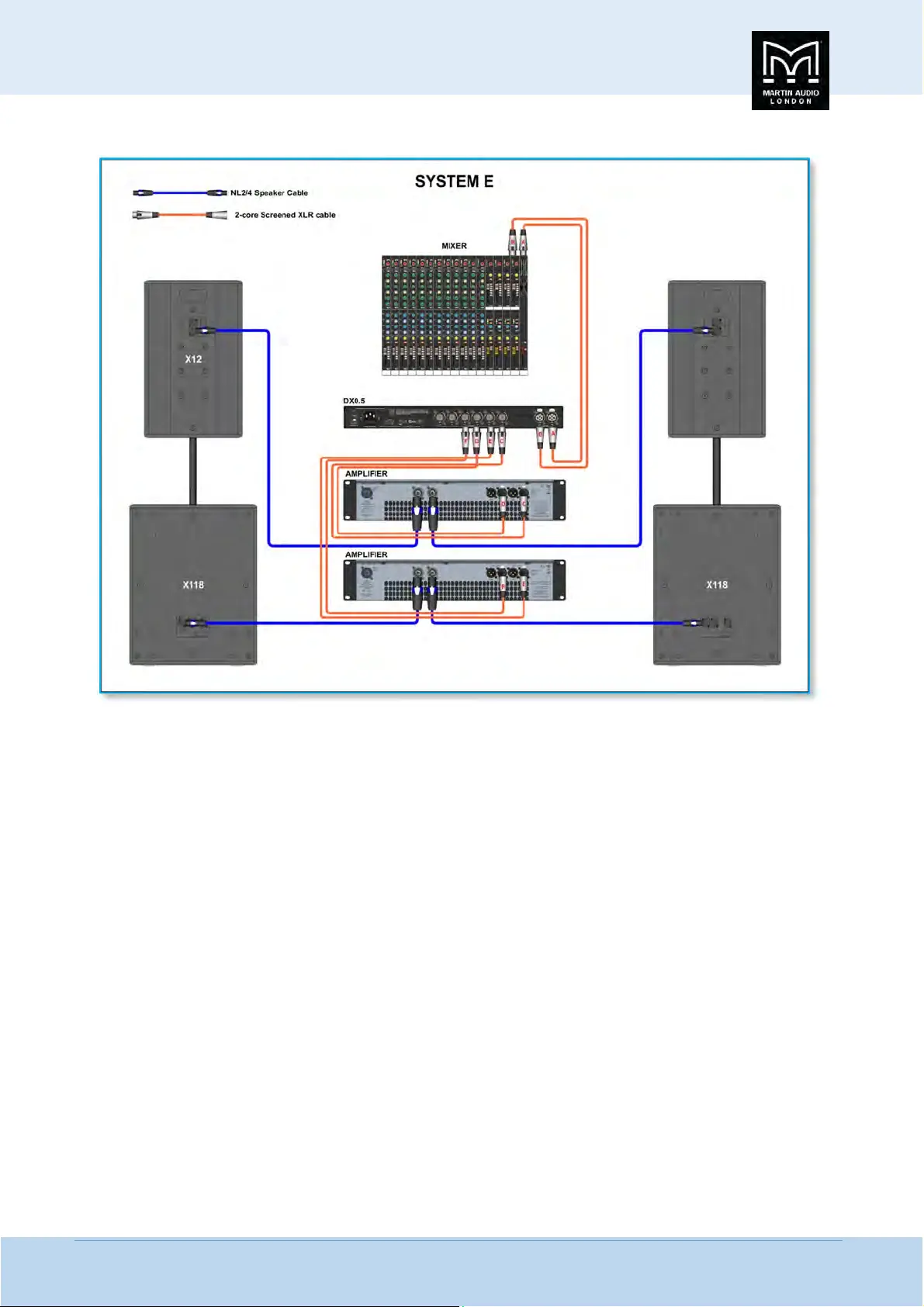

SystemE‐StereoSubwoofers



Productsthatmaybeusedwiththiswiring;‐

BlacklineX8plusX115 (DX0.5Preset3) BlacklineX10plusX115 (DX0.5Preset7)

BlacklineX8plusX118 (DX0.5Preset4) BlacklineX10plusX118 (DX0.5Preset8)

BlacklineX8plusX218 (DX0.5Preset4) BlacklineX10plusX218 (DX0.5Preset8)



BlacklineX12plusX115 (DX0.5Preset11) BlacklineX15plusX115 (DX0.5Preset15

)

BlacklineX12plusX118 (DX0.5Preset12) BlacklineX15plusX118 (DX0.5Preset16)

BlacklineX12plusX218 (DX0.5Preset12) BlacklineX15plusX218 (DX0.5Preset16)

Itiscommontorunsubwoofersinmonoasmostlowfrequencieshaveverylittlestereocontent,howeverinso

mecircumstances

youmaywishtorunsubwoofers in stereo using this system. The configurationusestwoamplifiersallowing a goodmatchof

amplifier to the power capability of the speakers and in particular using a higher power amplifier for the subs to deliver the

maximumoutputcapability.

Thereareleftandrightc

onnectionsfromthemixertotheinputoftheDX0.5.OutputChannels1and3ontheDX0.5connectto

inputs1and2ontheamplifierforthefullrangecabinetusingapairofshortXLRcables.AnotherpairofXLRcablesareconnected

fromoutputch

annels2&4ontheDX0.5toinputs1and2onthesubwooferamplifier.

SpeakonNL2orNL4cablesgofromthefirstamplifieroutputchannels1&2totheleftandrightfullrangespeakers,andfrom

thesubwooferamplifieroutputs1&2totheSubwooferinp

uts.

Youwillalsoneedtochoosethebestmatchofamplifierforthespeakers,seethechapteronamplifierselection.
