BlacklineX USERGUIDE

BlacklineXUserGuideV2.1 23



…………

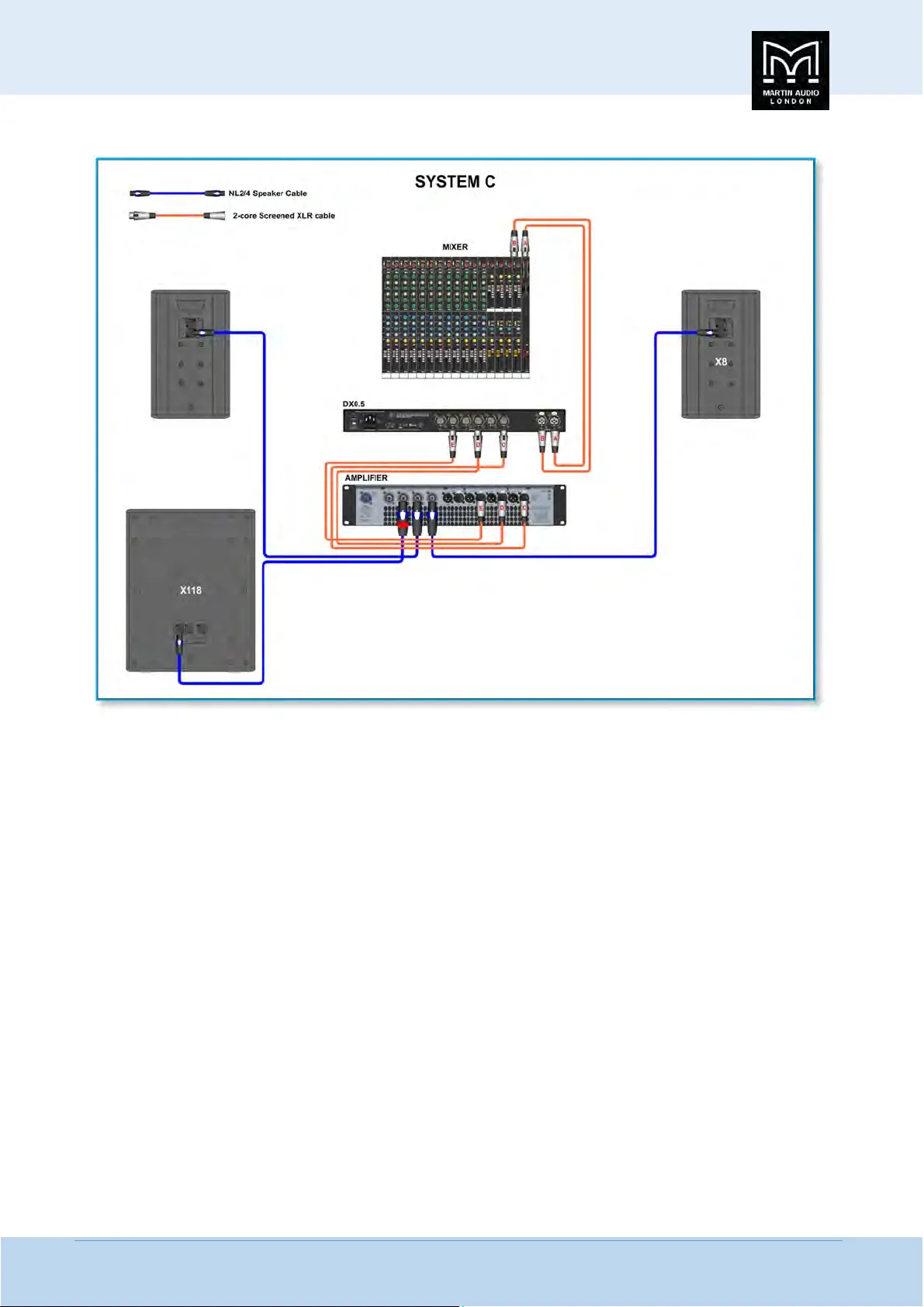

SystemC‐AddingaMonoSub



Productsthatmaybeusedwiththiswiring;‐

BlacklineX8plusX115 (DX0.5Preset3) BlacklineX10plusX115 (DX0.5Preset7)

BlacklineX8plusX118 (DX0.5Preset4) BlacklineX10plusX118 (DX0.5Preset8)

BlacklineX8plusX218 (DX0.5Preset4) BlacklineX10plusX218 (DX0.5Preset8)



BlacklineX12plusX115 (DX0.5Preset11) BlacklineX15plusX115 (DX0.5Preset15

)

BlacklineX12plusX118 (DX0.5Preset12) BlacklineX15plusX118 (DX0.5Preset16)

BlacklineX12plusX218 (DX0.5Preset12) BlacklineX15plusX218 (DX0.5Preset16)



This system adds a single subwoofer andusestheMartinAudio VIA5004 four channel amplifier for a neat solutionavoiding

havin

gtoaddasecondamplifier.Channels1and2drivethetwofullrangecabinetsandchannel3&4areusedinbridgemode.

Aswiththe previoussystem,thereareleftandrightconnectionsfromthemixertotheinputoftheDX0.5.OutputChanne

ls1

and3ontheDX0.5connecttoinputs1and2ontheamplifierusingapairofshortXLRcables.AfinalXLRcableisconnectedfrom

output channel 5 on the DX0.5 to input 3 on the amplifier. The bridge switch for channels 3 & 4 on the rear panel must be

depressed.

SpeakonNL2orNL4cablesgofr

omtheamplifieroutputchannels1& 2totheleftandrightfullrangespeakers,andaSpeakon

NL4speakercablegoesfromamplifieroutput3totheSubwoofer.NotethatthewiringintheNL4connecterattheampl

ifier

mustbeonpins1+/2+forbridgemodeoperation.SeetheUserGuidesfortheVIA5004fordetailsofbridgemodeoperation.
