www.marshall-usa.com
7 8
CV730-ND3/ND3W
3.2 Preparation before installation
Installation and connection of HD camera requires special skills. To install by yourself, please
follow necessary steps, ensure steady and tight installation of the device, and pay attention
to your safety to avoid any accident.
3.2.1 Ensure the safety of the installation environment. Please do not install the device on
unstable ceiling or in a place where the device is in danger of falling to avoid any accident.
3.2.2 Please check whether accessories in the box are complete or not. Please contact the
supplier for any shortage, and make sure to keep the accessories in the box intact.
3.2.3 Please choose a proper place for installation of camera in advance. Please determine
an installation place according to the following requirements
3.2.3.1 Conrm the position for the object to be captured.
3.2.3.2 Conrm whether the camera is set at a proper distance from other light sources.
3.3 Instruction for installation
3.3.1 Install the camera on the desk

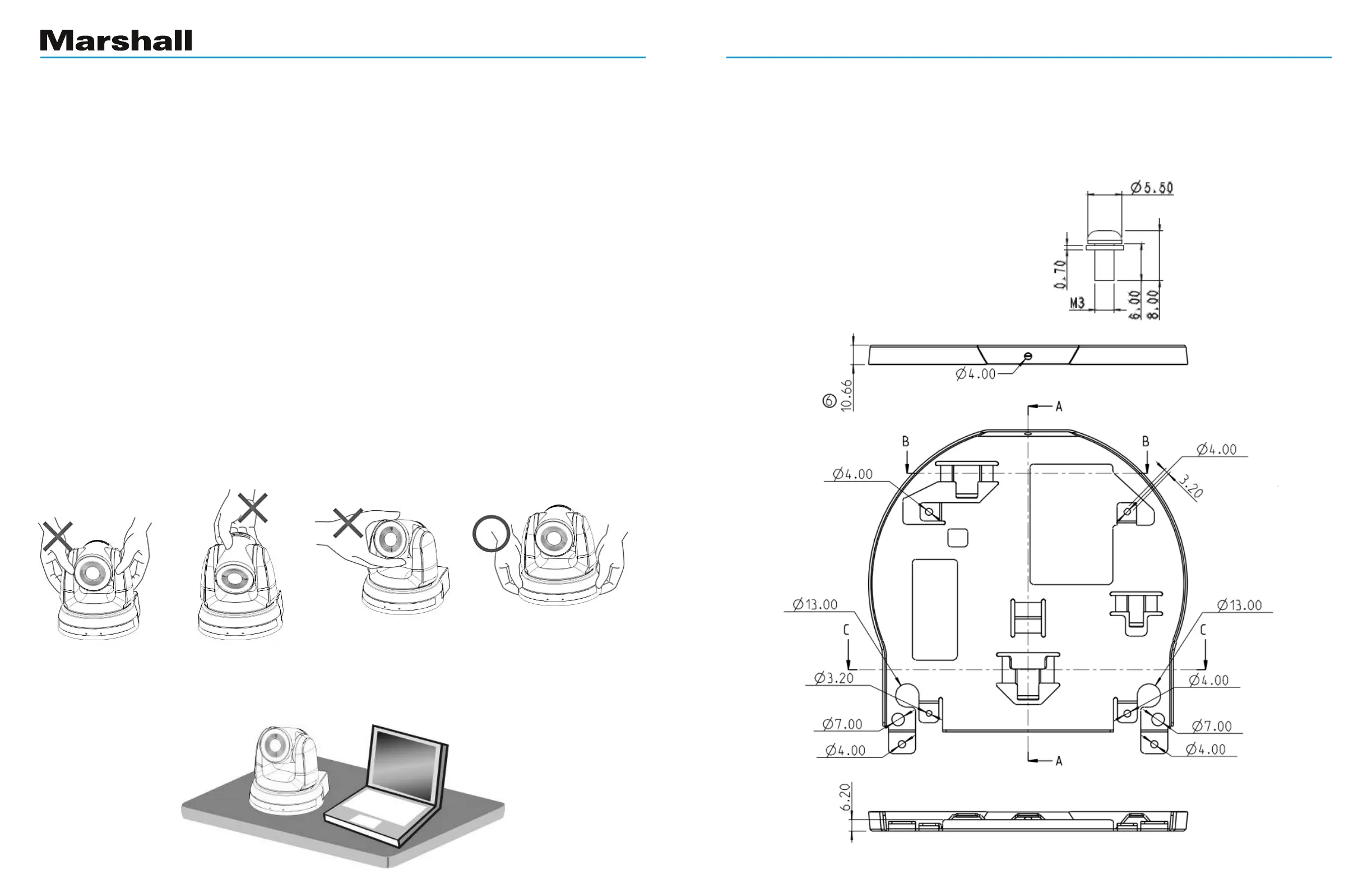

3.3.1.1 Precautions for installation
• Please install the machine on a at desk
• Do not grab the camera head by hand when handling the device
• Do not rotate the camera head by hand. Improper rotation may result in breakdown
of the camera
3.3.1.2 Installation steps
Please place the camera on a at desktop to ensure the normal vertical and horizontal operation
of the machine and the good cooling of the fan at the bottom
3.3.2 I would like to install the camera on the ceiling
3.3.2.1 Prepare for the parts and equipment required during the installation
• Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2)
• Screw for locking on ceiling mounted hanger x 4
• Drilling machine, screw driver, ladder
3.3.2.2 Metal Plate size diagram
• Metal plate A - machine side
Metal plate A
locking screw
Metal plate A - machine side
