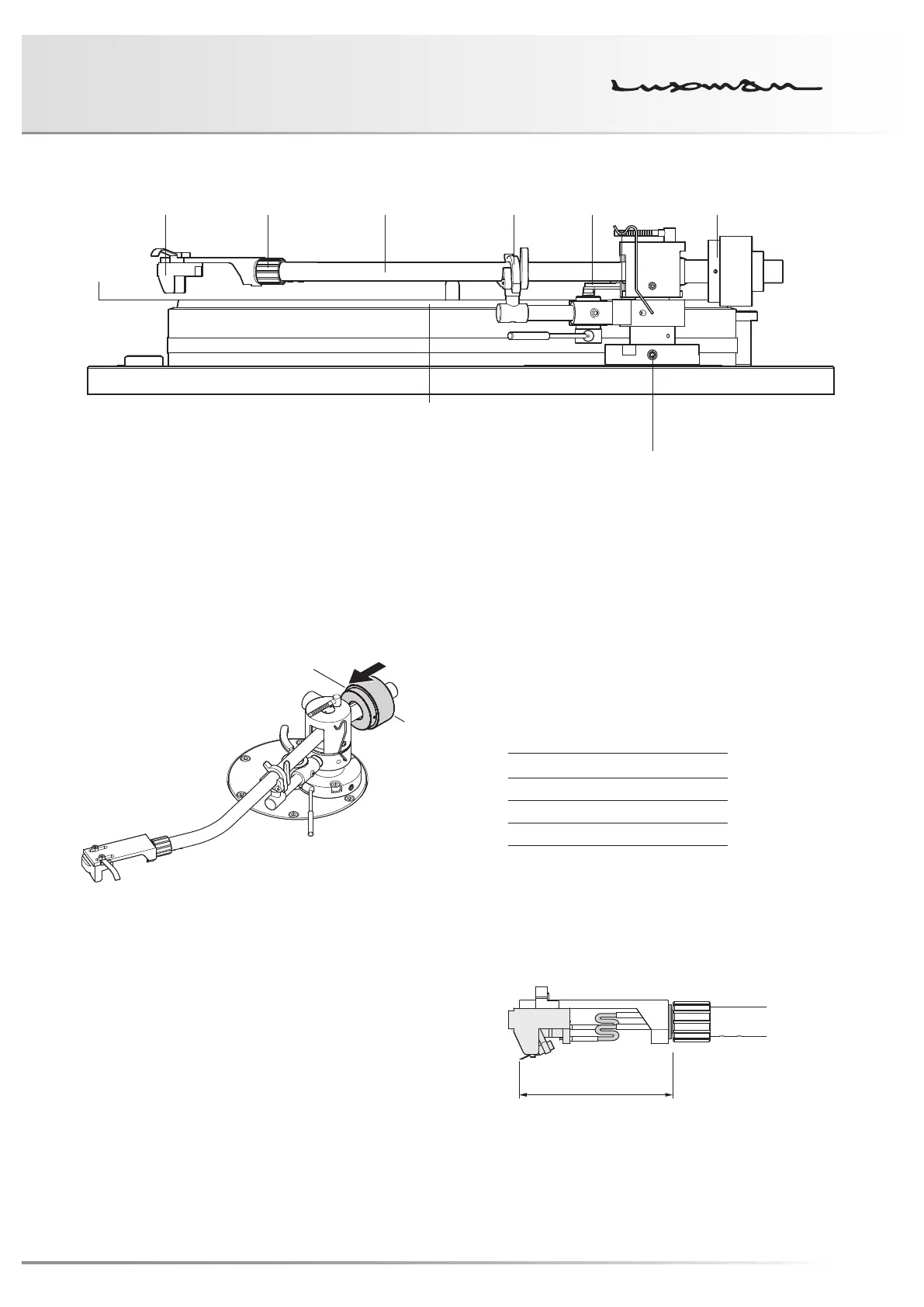

BELT DRIVE ANALOG PLAYER PD-191A
11
5. Counter weight mounting
Direct the stylus pressure gauge of the counter weight
frontward, and insert the tone arm into the weight until a
click is heard.
6. Cartridge mounting on headshell
No cartridge is supplied with this product. Mount your car-
tridge on the headshell. Connect the lead wires (see the
table below) to the cartridge, and secure them to the head-
shell of this product with the screws and nuts included in the
cartridge. If the lead wires are connected in a slack manner,
hum may be caused. Refer to the instruction manual of your
cartridge for the terminals to be connected.
White Lch +
Blue Lch –
Red Rch +
Green Rch –
Mount the cartridge so that the distance between the
mounting face of the headshell with the tone arm and the
stylus tip is 52 millimeters. Secure the cartridge in a straight
line with the headshell to make the side face of the head-
shell parallel to the side face of the cartridge.
The overhang length of the tone arm equipped in this unit
is 16 millimeters.
52mm
Stylus pressure gauge
Record surface
Arm pipe Arm rest Arm lifterPlug-in nut
Tone arm vertical adjustment screw
Cartridge
Rubber mat
