12
How to Assemble

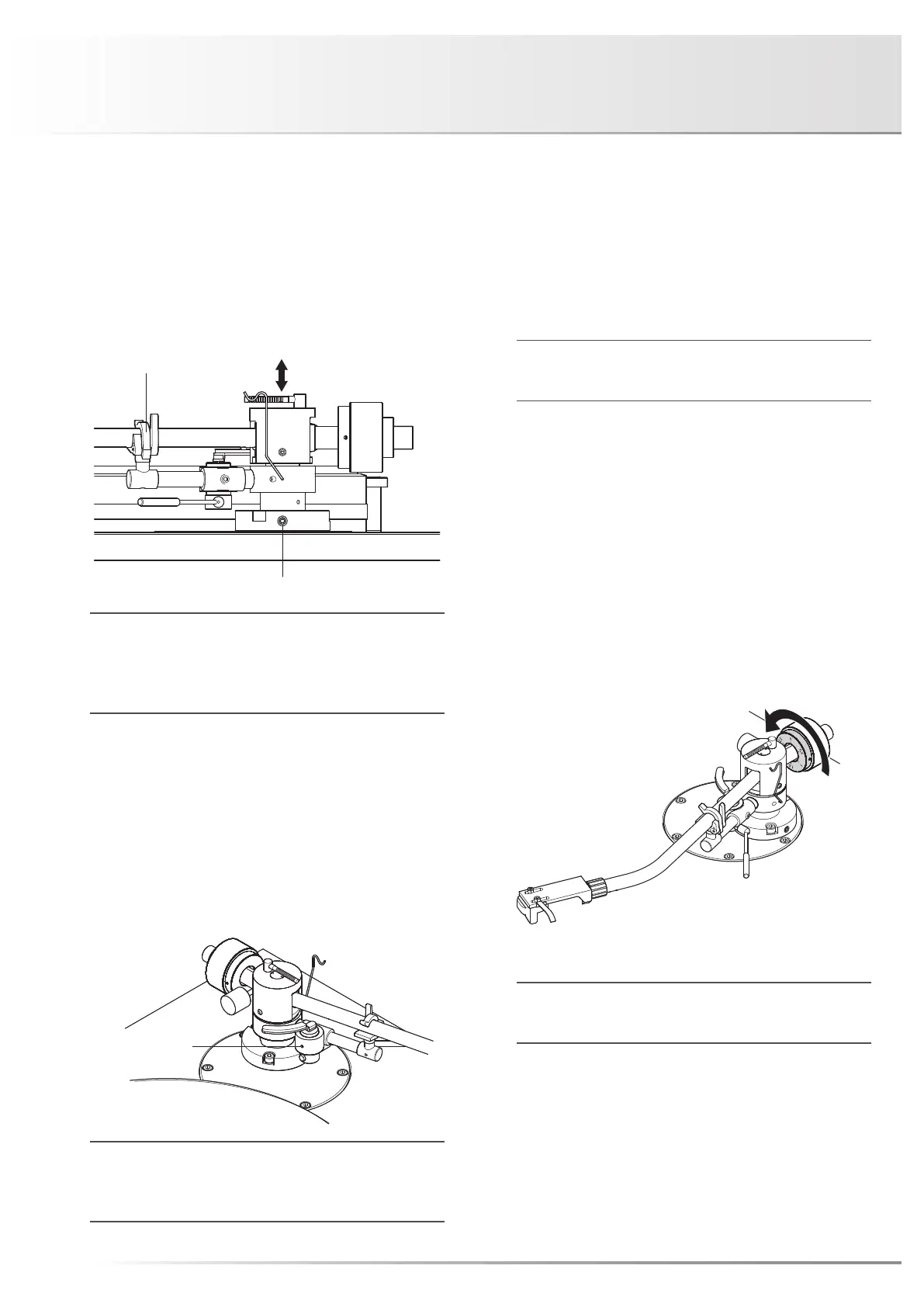

7. Tone arm vertical adjustment
Adjust the height of the tone arm so that the record surface
is parallelized with the arm pipe.
Move the tone arm vertically after loosening the screw of the
arm base with the tone arm adjustment wrench, and tighten
the screw when the position is at the vertically appropriate
position.
The tone arm is secured only with the screw of the arm base.
When the screw is loosened, be sure to put the tone arm on
the arm rest and support the whole arm with your hand to
prevent the arm from dropping.
8. Arm lifter vertical adjustment
Raise the arm lifter, loosen the arm lifter vertical adjustment
screw with the arm lifter adjustment wrench, and adjust the
arm lifter position so that the gap between the stylus tip
and the record surface becomes 5 to 10 millimeters. After
this adjustment, lower the lifter, confirm that the stylus tip
comes into contact with the record surface, and tighten the
arm lifter vertical adjustment screw to secure the arm lifter.
Confirm that a gap exists between the lifter and arm pipe
at the same time the stylus tip comes into contact with the
record surface.
9. Horizontal balance adjustment
After removing the weight for anti-skating adjustment, re-
move the tone arm from the arm rest to make it free. Move
the counter weight frontward or backward by rotating the
weight to finely adjust the horizontal balance of the tone
arm.
The stylus tip of the cartridge is remarkably delicate. Be
extremely careful not to apply excessive force to it.
10. Stylus pressure adjustment
Set the stylus pressure gauge to zero in the state that the
tone arm is horizontally balanced while carefully preventing
the counter weight from moving.
Then, rotate the gauge in the direction as shown in the il-
lustration below to set it to the required stylus pressure val-
ue. Refer to the instruction manual of your cartridge for the
optimal value. A cartridge with 4 to 11 grams in weight is
suitable for this product. For a heavyweight cartridge, use
the optional heavy weight (A cartridge with 10 to 19 grams
in weight is suitable for this product.).
The stylus pressure gauge is not fixed on the counter weight,
and is freely rotatable.
Arm rest
Tone arm vertical adjustment screw
Arm lifter vertical
adjustment screw
