SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Caséta by Lutron Load Controls
369987l 25 2.24.23

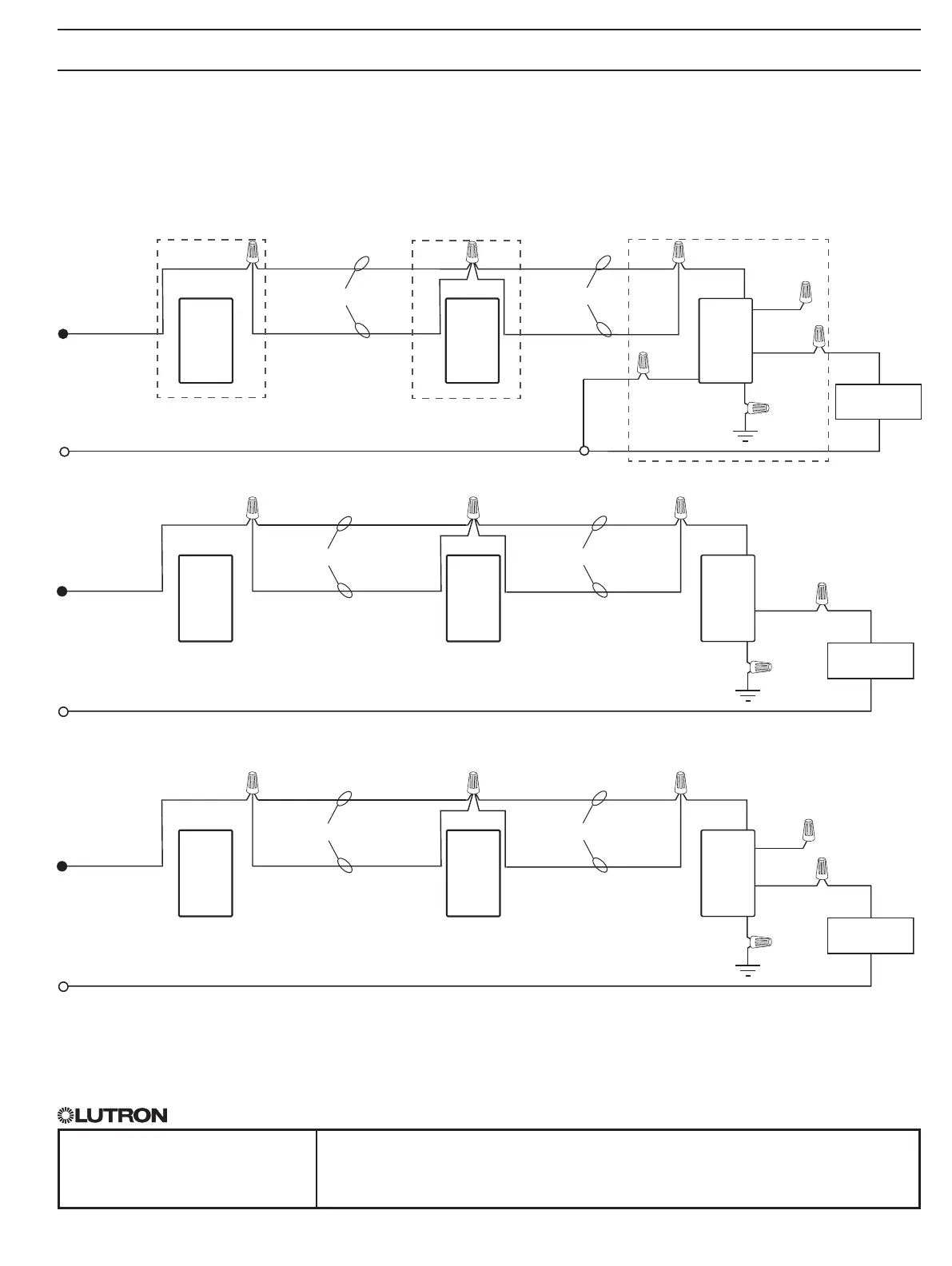

Multi-Location Installation (load is controlled from 3 or more locations)
Option 1: With Pico remote controls
PJ2-2B-xx and wallbox mounting adapters (PICO-WBX-ADAPT)
PD-10NXD or PD-5NE
120 V~
50 / 60 Hz
Neutral
Red
Green
Ground
Load
Line / Hot
Black
Pico
remote
control &
wallbox
mounting
adapter
Pico
remote
control &
wallbox
mounting
adapter
Dimmer
Black
Travelers
White
3,4
Blue
1, 5
Travelers
120 V~
50 / 60 Hz
Neutral
Black
Green
Ground
Load
Line / Hot
Black
Pico
remote
control &
wallbox
mounting
adapter
Pico
remote
control &
wallbox
mounting
adapter
Dimmer
Black
PD-6WCL
Travelers
Travelers
Location 1 Location 2 Location 3
Wiring Diagrams - Dimmers (continued)
1
When using controls without mechanical 3-way switch, cap the blue terminal. Do not connect the blue wire to any other wiring or to ground.
2
Location of Caséta dimmer PRO and mechanical switch may be reversed.
3
For PD-10NXD only, neutral connection optional except for MLV loads, LED drivers, and power modules (PHPM-PA, PHPM-3F, and GRX-TVI).
4
For PD-5NE, neutral is required.
5
Blue wire is only present on the PD-10NXD and DVRF-6L models.
6
When using a Pico in a 3-way installation with a dimmer the Black and Red wires are reversible.
120 V~
50 / 60 Hz
Neutral
Red
6
Green
Ground
Load
Line / Hot
Black
Pico
remote
control &
wallbox
mounting
adapter
Pico
remote
control &
wallbox
mounting
adapter
Dimmer
Black
DVRF-6L
Travelers
Travelers
Blue
1, 5
25
