SPECIFICATION SUBMITTAL Page
Job Name:
Job Number:
Model Numbers:
Caséta by Lutron Load Controls
369987l 17 2.24.23

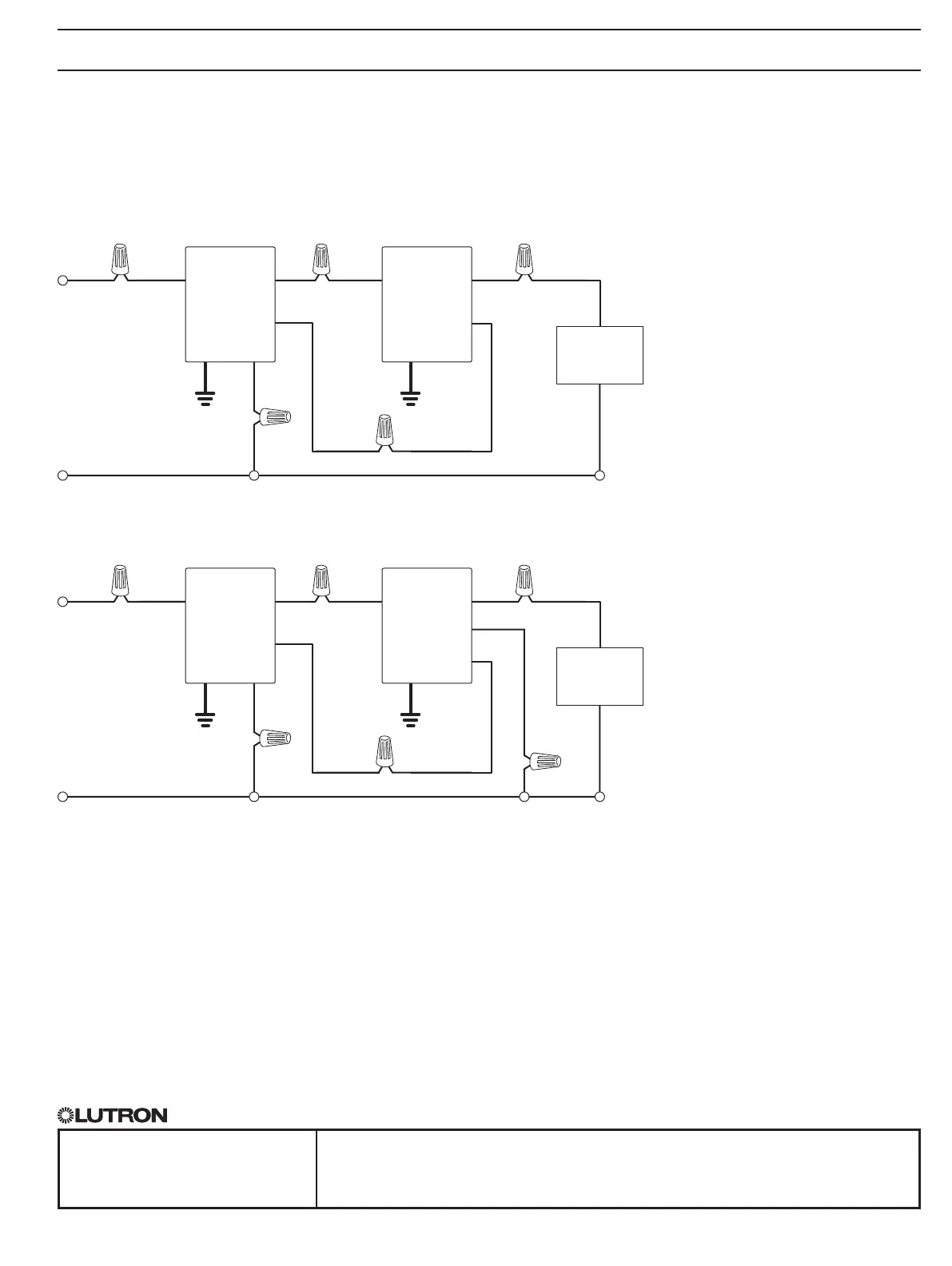

Wiring Diagrams - Switches (continued)
3-Way Installation (load is controlled from 2 locations) (continued)
Option 3: With an accessory switch
DVRF-5NS and Smart Accessory Switch (DVRF-AS)
DVRF-5NS (Line Side)
Switch
Load
Black
Line / Hot
Green
Blue
Ground
Neutral
120 V~ 60 Hz
Green
Ground
Red
Accessory Switch
Red Black
Blue
DVRF-5NS (Load Side)
DVRF-5NS
DVRF-AS
White
White
Switch
Load
Black
Line / Hot
Green
Blue
Ground
Neutral
120 V~ 60 Hz
Green
Ground
Red
Accessory Switch
Red Black
Blue
DVRF-5NS
DVRF-AS
White
Note: The Black wire of the main switch must always be connected to the Line / Hot wire. The Black and Red wires of the accessory switch
are reversible.
17
