SPECIFICATION SUBMITTAL Page

Job Name:

Job Number:

Model Numbers:

Caséta by Lutron Load Controls

369987l 16 2.24.23

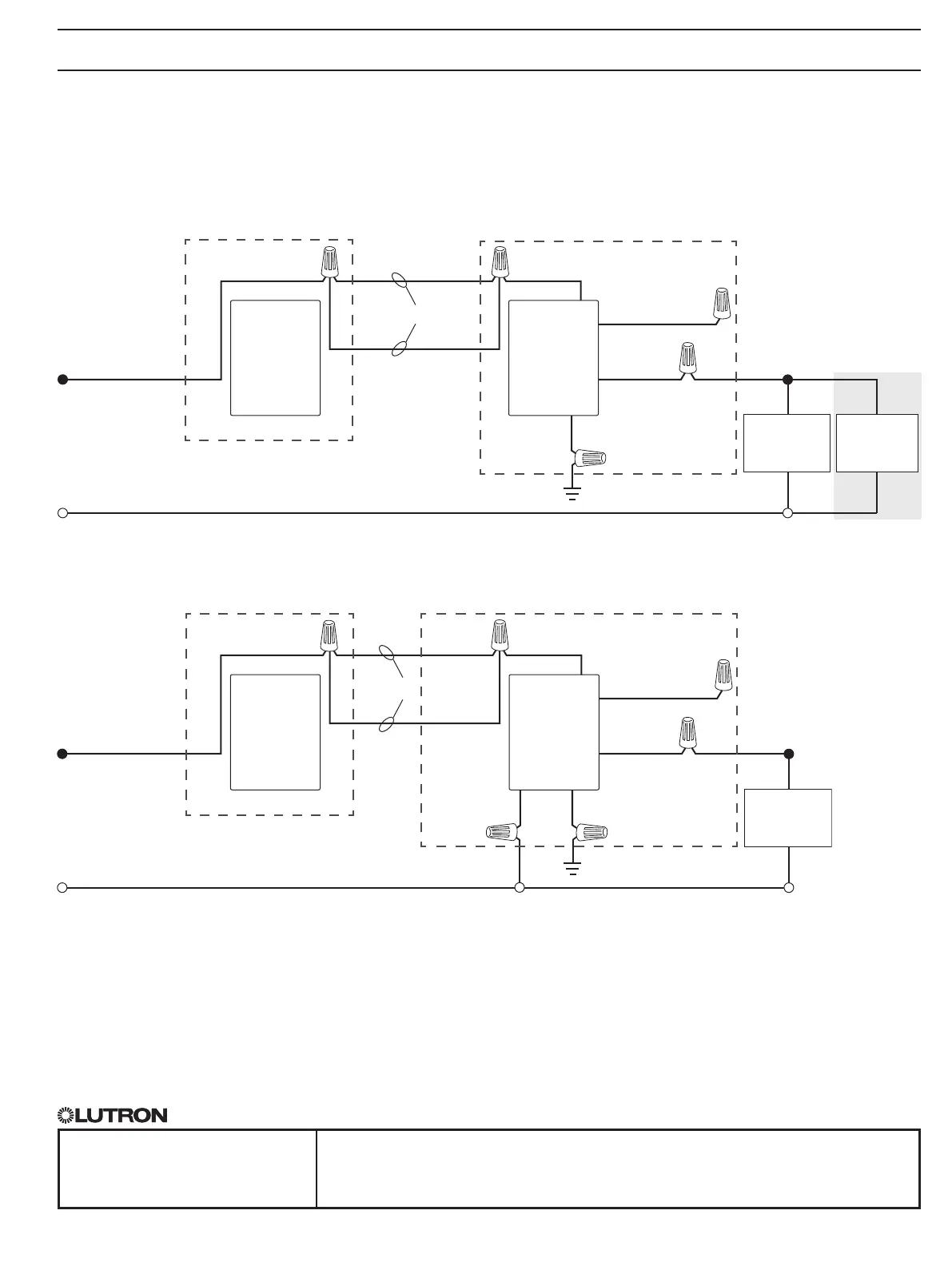

Wiring Diagrams - Switches (continued)

When using controls without mechanical 3-way switch, cap the blue terminal. Do not connect the blue wire to any other wiring or to ground.

A LUT-MLC ensures proper function when LED, fluorescent, or ELV loads are used. Install the LUT-MLC inside a load fixture or in a separate junction box

within the circuit.

The mechanical switch will need to be removed so the Pico remote control can be installed.

The red wire must be connected to the load and the black wire must be connected to Line / Hot. The switch will not work if the wires are reversed.

3-Way Installation (load is controlled from 2 locations) (continued)

Option 2: With Pico remote controls

PJ2-2B-xx and wallbox mounting adapters (PICO-WBX-ADAPT)

(continued on next page…)

BlackBlack

PD-5WS-DV

Pico

Remote

Control and

Wallbox

Mounting

Adapter

LUT-MLC

Load

Line / Hot

Neutral

Green

Ground

Red

Blue

120 V~

50 / 60 Hz

Travelers
