A-4
INSTALLATIONREALWELD
®
TRAINER
8. Carefully position the monitor assembly on the trainer/stand. See
Figure A.14.
9. Using a 6mm allen wrench, attach the two previously removed
screws securing the monitor to the trainer/stand.
10. Connect the monitor cables (VGA, power and USB) to the monitor.
See Figure A.15.
11. Remove the speaker from the storage bag.
12. Using the spring-loaded clip on the bottom of the speaker, attach
the speaker to the monitor arm. See Figure A.16.
13. Using the attached cable tie, secure any loose cables to allow for
safe operation of the machine. See Figure A.16.
14. Place both jig clamps into the unlocked position. See Figure A.17.
15. Position the jig platform onto the stand. See Figure A.18.
16. Place both jig clamps in the locked position to secure the
platform. See Figure A.19.
NOTE: It may be necessary to adjust tension screws in order to safely
secure platform. If platform is loose after clamp is placed in
the locked position, use a 3/8” nutdriver to tighten the tension
screws. If clamp will not go into the locked position, use a
3/8” nutdriver loosen the tension screws.
MONITOR ASSEMBLY
POWER USB VGA
ATTACHED CABLE TIE
SPEAKER

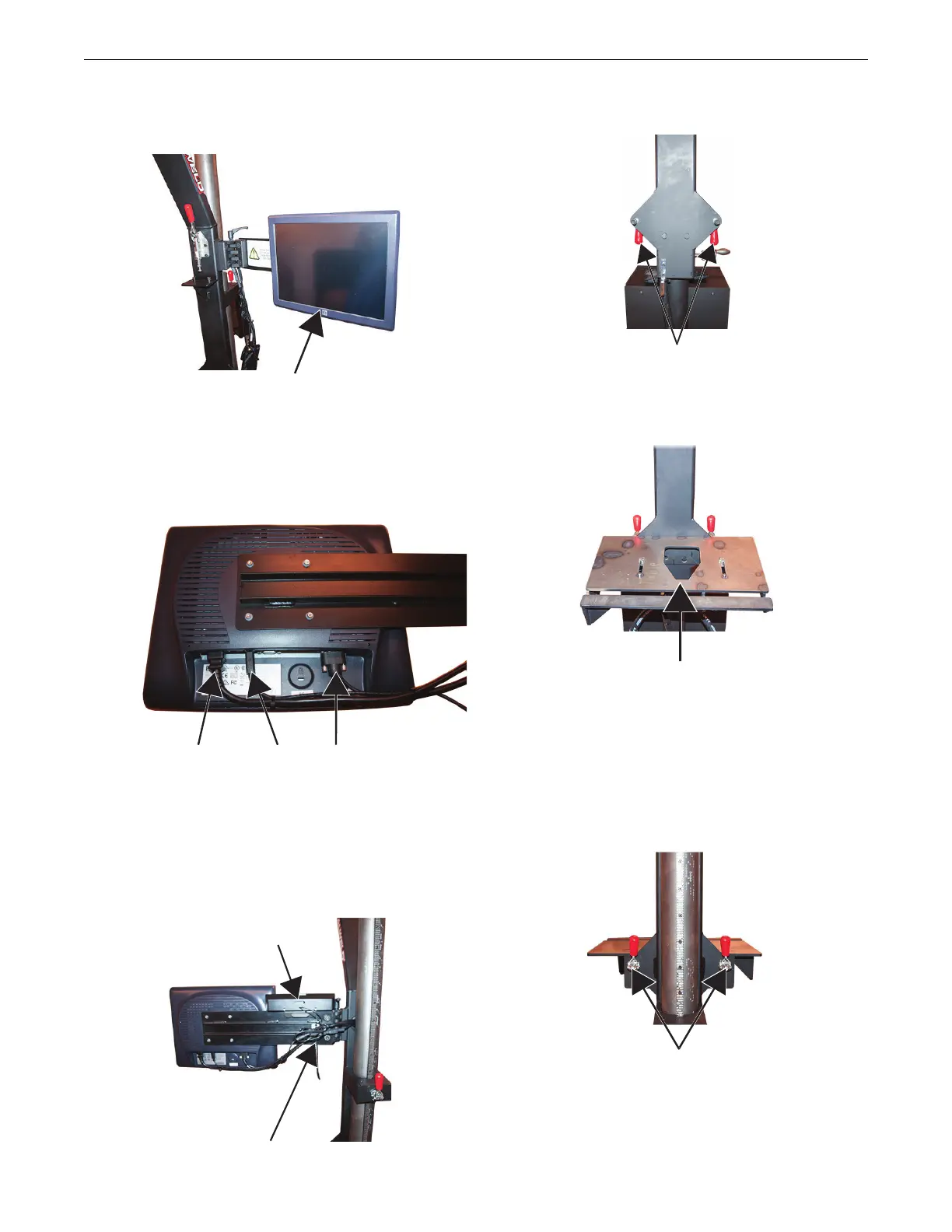

Figure A.14 – Monitor assembly
Figure A.15 – Monitor cables
Figure A.16 – Cable management and speaker location
JIG CLAMPS
(UNLOCKED POSITION)
JIG PLATFORM
Figure A.17 – Unlocked position
Figure A.18 – Jig platform
JIG CLAMPS
(LOCKED POSITION)
Figure A.19 – Locked position
