A-3
INSTALLATIONREALWELD
®
TRAINER
SETUP PROCEDURE
1. Carefully remove the camera assembly from the box.
2. Using a 1/8” allen wrench, attach the three screws securing the
camera assembly to the trainer/stand. It may be necessary to use
a step stool and an assistant to successfully mount the camera
assembly. See Figure A.9.
3. Carefully remove the cable ties securing the cables and speaker to
the stand.
4. Connect the 6-pin quick-connect to the camera assembly. See
Figure A.10.
5. Remove the glass lens covers from the accessory pack and install
them in the lens trays on the camera. See Figure A.11.
6. Using a 6mm allen wrench, remove the two screws from the
monitor mount on the trainer/stand. See Figure A.12.
7. Carefully remove the monitor assembly from the box. See Figure
A.13.

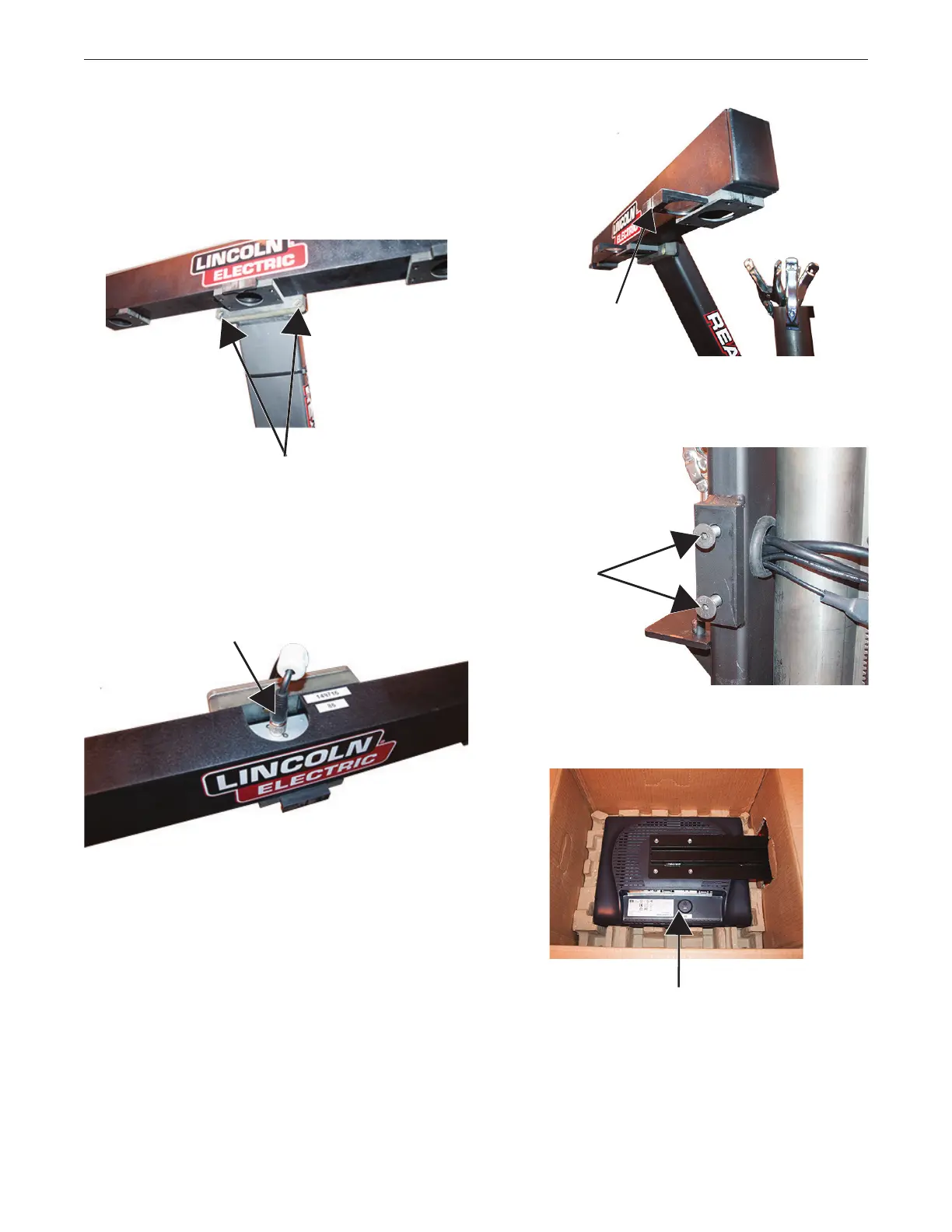

MOUNTING SCREWS (3)
Figure A.9 – Camera mounting screws
6-PIN QUICK-CONNECT
LENS TRAY
(SHOWN OPEN)
MONITOR
MOUNTING
SCREWS
MONITOR ASSEMBLY
Figure A.10 – 6-Pin quick connect
Figure A.11 – Lens cover installation
Figure A.12 – Monitor mounting screws
Figure A.13 – Monitor unboxing
