INSTALLATIONOIL GUARDIAN

™

To prevent the fan support from moving, it must be fastened to the

main duct. For this purpose, the upper rim is equipped with two slots

for direct connection to the duct supports.

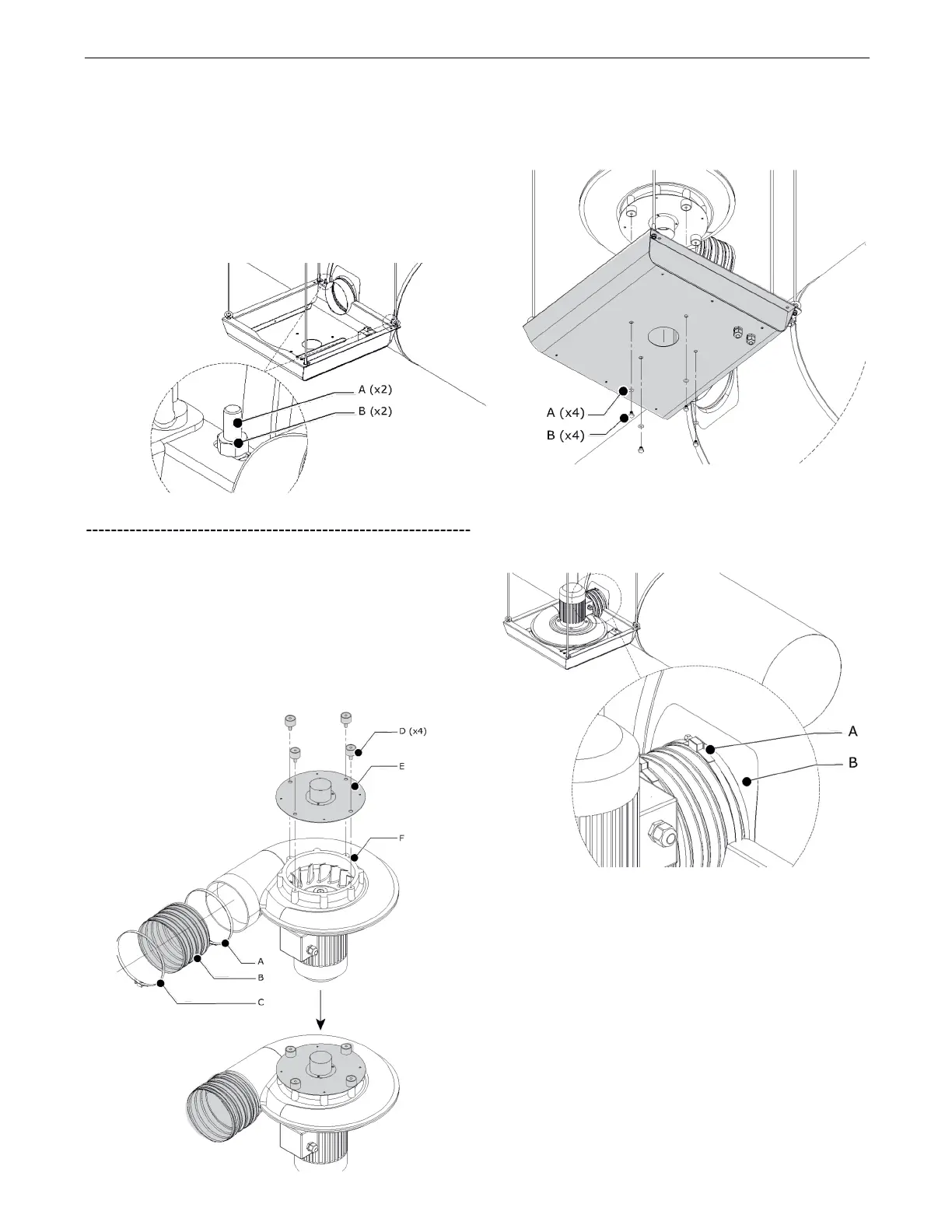

For steps 7-8, see Figure 8.

7. Slide the fan support over the bolts (A) of the duct supports (see

Figure 5, item C).

8. Using an additional nut (B), fasten the fan support.

Booster Fan

For steps 1-3, see Figure 9.

1. Using a hose clamp (A), attach the hose Ø 6.3 in. (160 mm) (B) to

the fan.

2. Slide the other hose clamp (C) over the hose without fastening it.

3. Using the supplied vibration dampers (D), secure the inlet adapter

(E) to the fan inlet (F).

4. Using the supplied bolts M8 (B) with washers (A), fasten the fan

inside the fan support. See Figure 10.

5. Using the hose clamp (A), attach the hose to the saddle piece (B).

See Figure 11.

FIGURE 8

FIGURE 9

FIGURE 10

FIGURE 11
