A-15

INSTALLATIONFUME EXTRACTION ARMS

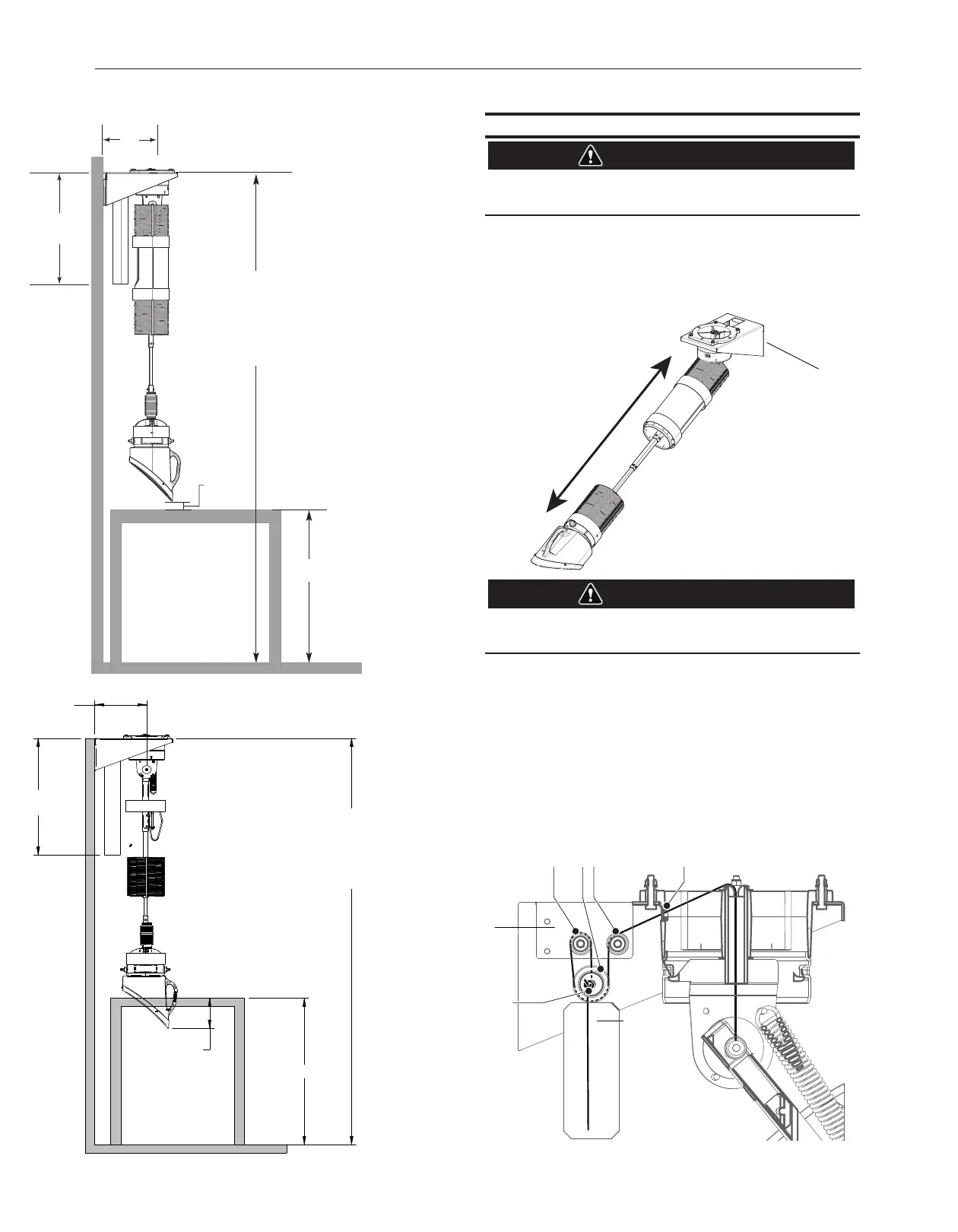

FIGURE A.15

ATTACHING THE ROPE

Tying the counterweight too low will affect the

reach of the extraction arm.

1. Mount the wall mounting bracket to the wall using the

proper hardware.

2. Pull the arm to the longest position. Figure A.16

FIGURE A.16

Failure to securely knot rope could

cause injury.

Guide the rope through the mounting assembly (D) and over

the pulley (C), the counterweight pulley (B) and the other small

pulley (A). (See Figure A.17)

Keep the counterweight in the highest position, which means

just below the small pulleys. Securely fasten the rope to the

counterweight by tying a knot (E) . The rope should be

threaded through the hole in the counterweight pulley. The

knot must be large enough so the rope cannot slip back

through the hole - take measures to make sure knot does

NOT untie itself. (See Figure A.17)

FIGURE A.17

0.3 ft.

(100mm)

3 ft. (900mm)

CAUTION

WARNING

A B C D

When tied

off properly,

there should

be about 18”

of extra rope

after the

knot, tie off

extra.

11.5

inch

inches

11.5

Inches

3.0ft.(900mm)

0.6ft.

(188mm)

K1655-15

Bracket over pulleys

not shown for clarity in

routing of rope.

K1655-14

WALL MOUNTING

BRACKET

124" (3150 mm)

Standard Height

100" - 138" (2540 -

3505 mm)

Typical Height Range

100" (2540 mm)

Standard Height

84" - 112" (2134 - 2845 mm)

Typical Height Range
