A-16

INSTALLATIONFUME EXTRACTION ARMS

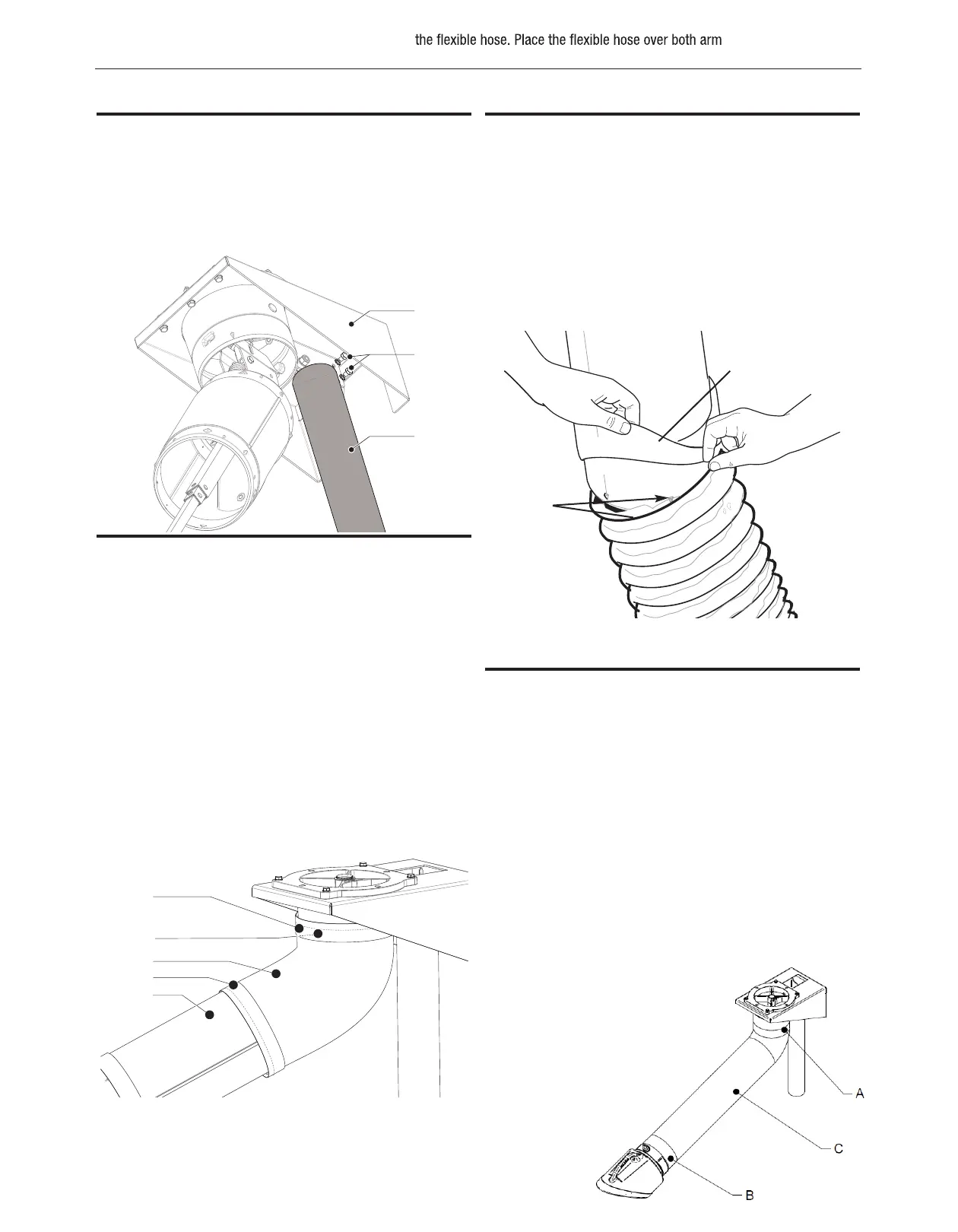

ATTACHING THE COUNTERWEIGHT CASING

Slide the counterweight casing (C) over the counterweight.

(See Figure A.18)

Using a 1/2” wrench, fasten the casing to the wall

mounting bracket (A) using (2) 5/16-18 x .75 bolts and (2)

5/16-18 locknuts.

Securely tighten bolts.

FIGURE A.18

ATTACHING THE HOSE TO THE

MOUNTING ASSEMBLY- K1655-14

The mounting assembly and the tube are both provided with

a rubber gaskets. To attach the shorter flexible hose proceed

as follows:

Fold back 2/3 of both rubber gaskets. (A+D). (See

Figure A.19)

Place the flexible hose (C) over the collar (B) and the tube

(E) To secure the hose, at least one metal ring of the hose

should be applied over the ridges of the collar. The same

goes for the tube.

10.

Fold back the gaskets and place them over the hose.

Make sure the upper gasket overlaps the aluminum

mounting assembly approximately 0.4 in. (10 mm).

FIGURE A.19

MOUNTING OF THE EXTRACTION HOOD

12. Remove the plastic and tape packaging from the arm

sections. Adjust the friction of the arm and hood movement

as described in the maintenance section of this manual.

When set, seal all hose connections with the arm seal bands.

13. Fold back 2/3 of both arm seal bands. Remove the wrap of

the flexible hose. Place the flexible hose over both arm

sections. To secure the hose, at least one metal rings of the

hose should be applied over the ridges at each arm section.

Fold back the arm seal bands and place them over the hose.

The arm seal band should cover the arm section 0.5-1 in. See

Figure A.20.

FIGURE A.20

Place at least

one metal band

of flexible hose

over ridge

Stretch arm band seal

over flexible tube

ATTACHING THE HOSE TO THE MOUNTING

ASSEMBLY AND EXTRACTION HOOD- K1655-15

The mounting assembly and the hood are both provided with arm

seal bands A & B. To attach the flexible hose proceed as follows.

Remove the banding straps from flexible hose (C).

Remove the plastic and tape packaging from the arm

sections.

Fold back 2/3 of both arm seal bands A & B

11. Place the flexible hose over both arm sections.

12. To secure the hose, at least one metal rings of the

hose should be applied over the ridges at each arm section.

The arm seal band should cover the arm section 0.5-1 in. See

Figure A.20

Remove the banding straps from the flexible hose.

11.

10.
