MOUNTING EXTRACTION ARM ASSEMBLY

The recommended standard installation height of the K1655-14

wall mounting bracket is 124" (3150 mm). The typical mounting

height range is 100" - 138" (2540 - 3505 mm). See Figure A.14.

The recommended standard installation height of the K1655-15

wall mount bracket is 100" (2540 mm) with a typical mounting

range of 84" - 112" (2134 - 2845 mm). See Figure A.15.

NOTE: REFERENCE TELESCOPIC ARM REACH GRAPH TO

DETERMINE BEST HEIGHT FOR YOUR APPLICATION.

The package contains no mounting hardware for the Mount

Assembly since the required mounting hardware depends on the

wall type. The Mount Assembly can be mounted on:

• A thin brick or concrete wall (min. thickness of 4 inches/100

mm), using four threaded rods M10.

• A thick brick or concrete wall, using four cotter bolts

M10x120x60.

• Steel profile (e.g. H-profile), using four threaded rods M10.

NOTE: For central extraction systems, connec-

A-14

INSTALLATIONFUME EXTRACTION ARMS

FIGURE A.14

tion of the CW extraction arm to an 8

inch duct drop is made easier with

K1657-5 Connector.

See options/Accessories on page C-1.

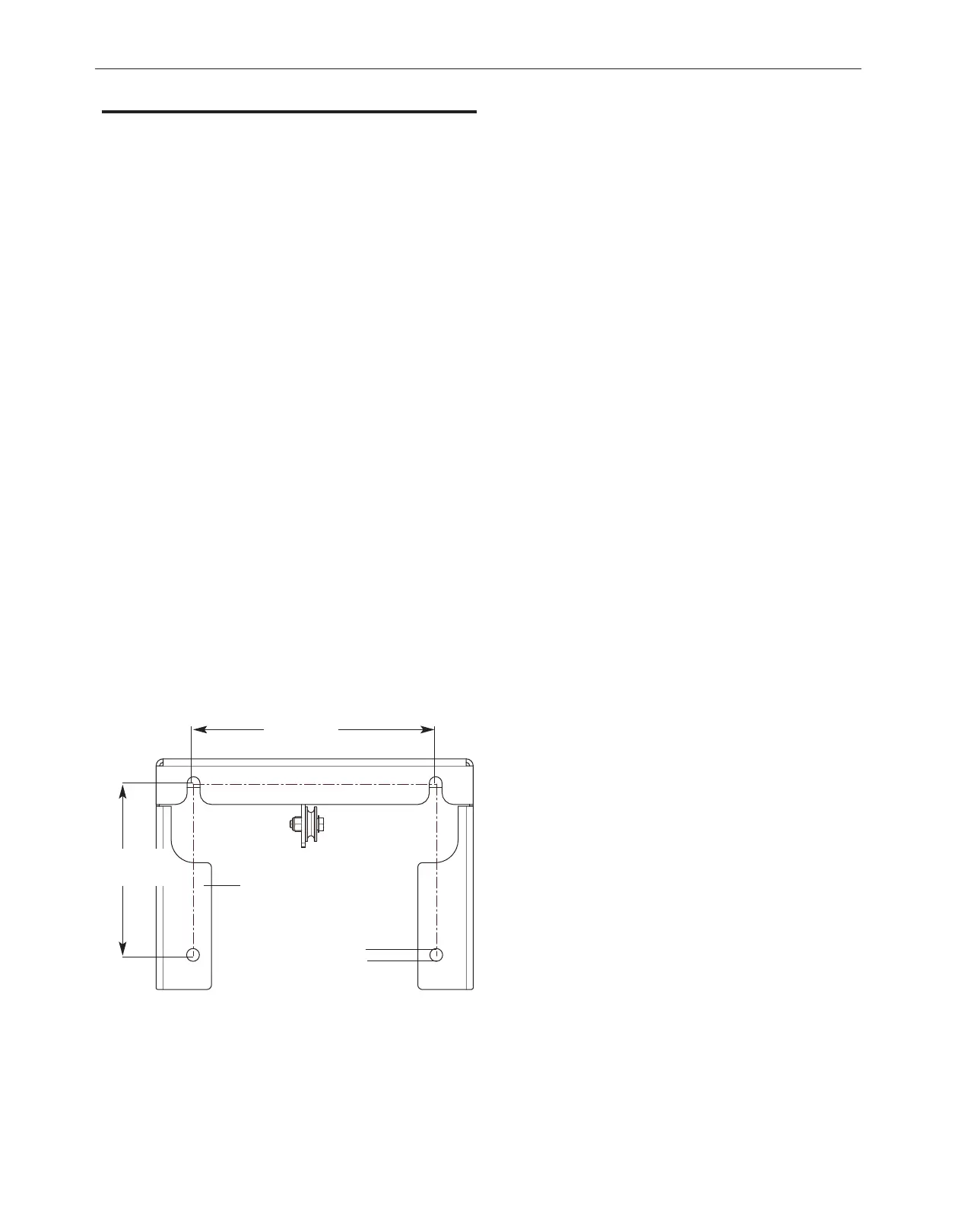

DIMENSIONAL DETAILS OF THE WALL

MOUNTING BRACKET. Figure A.14

8.3 in

(210mm)

WALL FACING VIEW OF

MOUNT ASSEMBLY

0.5 in

(12mm)

5.9 in

(150mm)

RECOMMENDED MOUNTING HEIGHT

K1655-14: 124" (10.3')

K1655-15: 100" (8.3')

TYPICAL MOUNTING HEIGHT RANGE

K1655-14: 100" - 138" (8.3' - 11.5')

K1655-15: 84" - 112" (7' - 9.3')

REFERENCE TELESCOPIC ARM REACH GRAPH TO

DETERMINE BEST HEIGHT FOR YOUR APPLICATION
