18 Document #: LIN_EOGO_IOM_24APERION_4605890_Rev1 - 01/24
Installation Section 2
1RQ6WDFNLQJ&RYHU:LWK1R+ROHV2Q7RS
6WDFN&RYHU7DOOHU:LWK+ROHV
6WDFN&RYHU7DOOHU:LWK+ROHV

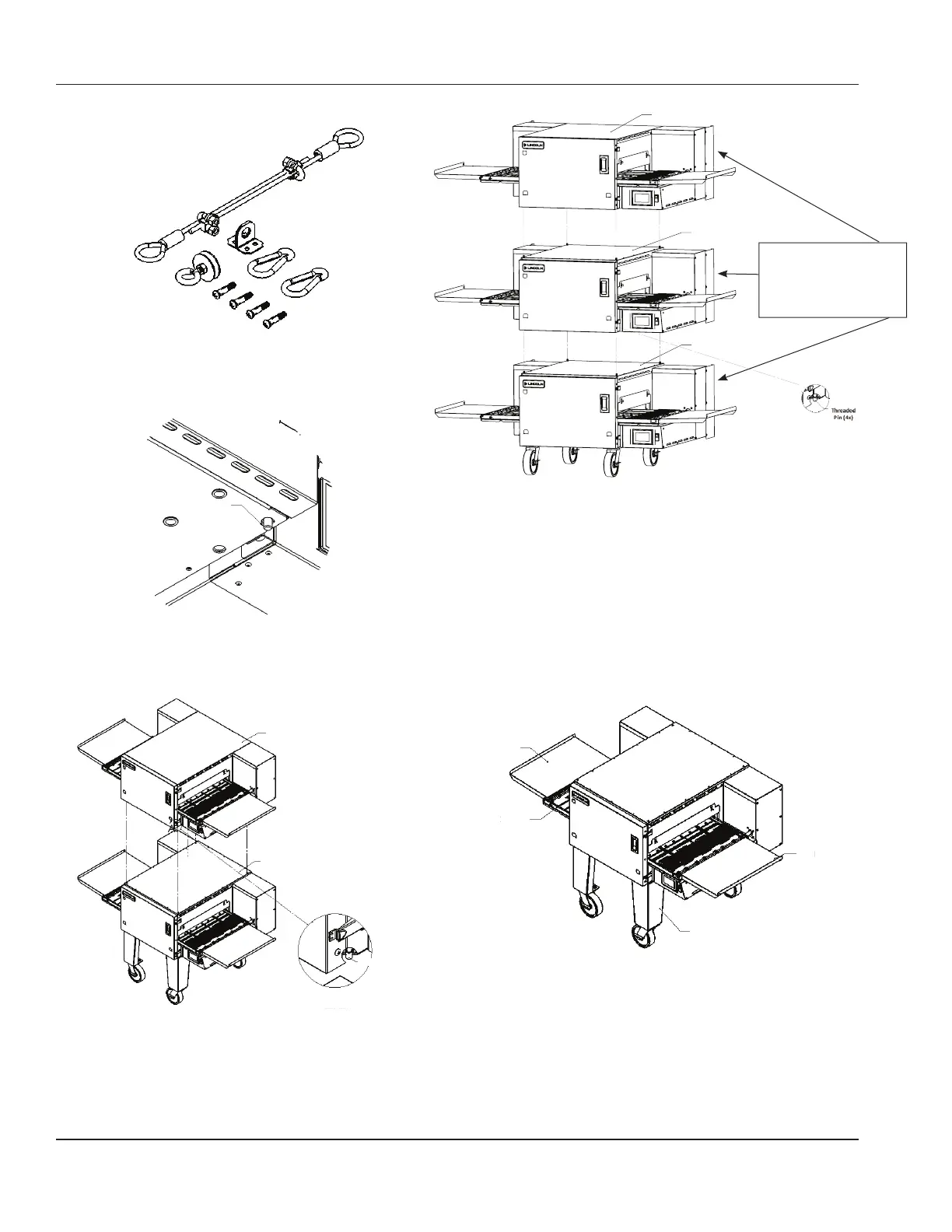

2424 TRIPLE STACK
STAND-OFF PLATES
(PT# 4608420)
5. To add a Top Unit to the Stack Assembly. The Threaded
Pins are pre-installed at the corners of the bottom of the
Top Unit.
Threaded
Pin (4x)
6. Using Caution, lower the Top Unit using a portable
crane or forklift, onto the Bottom Unit by lining up the
Threaded Pins to the holes on the Bottom Unit.
Non-Stacking Cover With
No Holes On Top
Stack Cover Taller
With Holes
Threaded Pin
(4x)
7. If triple stacking is required, Bottom and Middle Unit
should have taller stack cover with holes. Top Unit
should have non-stacking cover with no holes on top.
The heat shields supplied in the Triple Stacking kit should
be added to left and right Control Boxes on all three
units.
8. Once the units are in place, re-install the Finger
Assemblies.
9. Install the Conveyor Belt assembly.
10. Install Front Door.
11. Install Loading and Offloading Trays (Loading Tray
Marked with I, Offloading Tray Marked II).
Long Legs With Casters
Offloading
Tray
Loading
Tray
Conveyor
Belt
