8
Weights and dimensions are approximate. Because we continually strive to improve our products, we may change
specifications and designs without notice.
Installation
Equipment selection installation

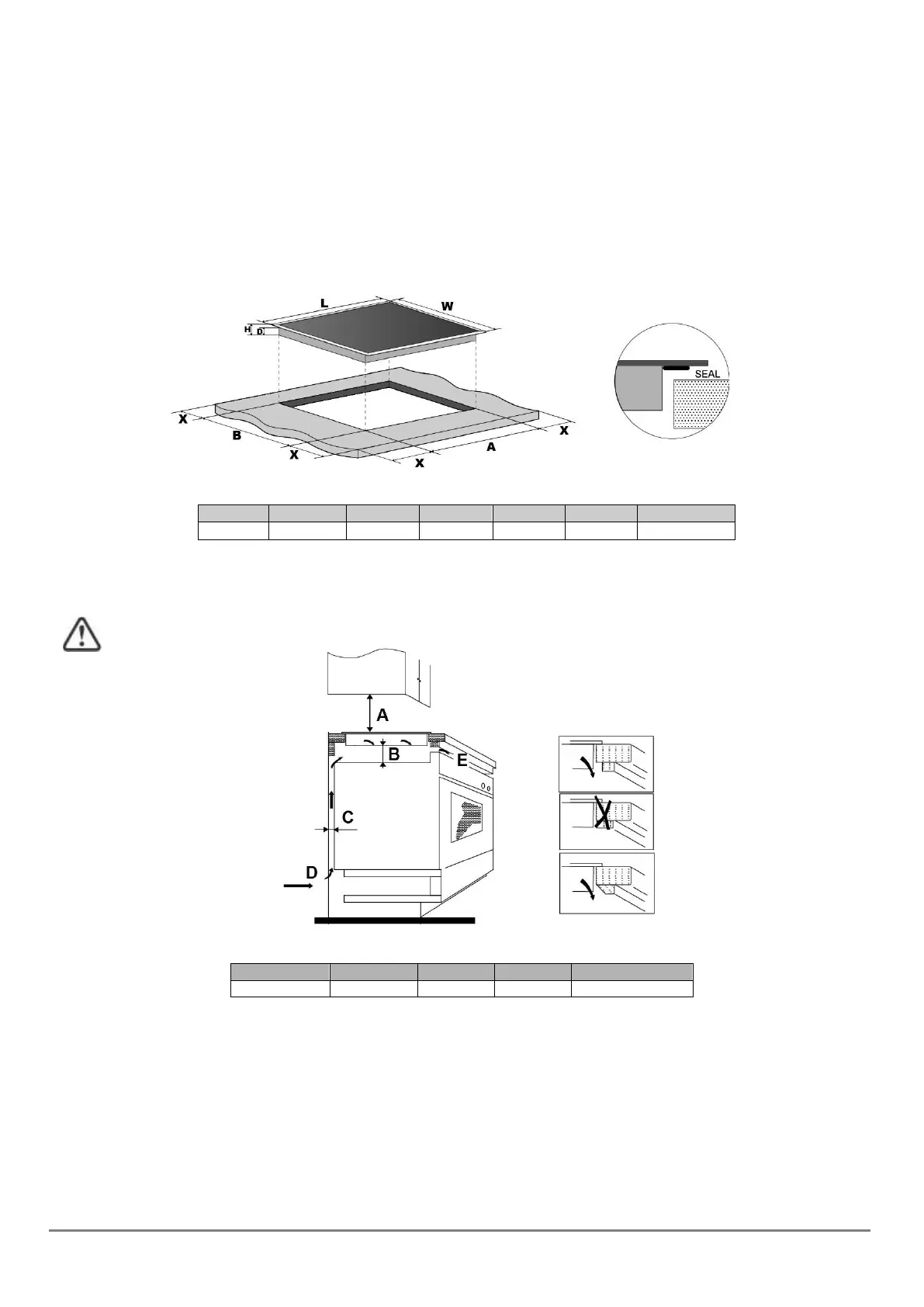

Cut the worktop to the dimensions shown in the drawing. For the purposes of installation and use, a minimum space
of 5 cm must be left around the hole.
Ensure that the thickness of the worktop is at least 30 mm Choose a heat-resistant work surface material to avoid
significant deformation caused by the heat radiation from the hotplate. As shown below:
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
290
520
47
43
265
500
50 minis
In all circumstances, make sure that the ceramic hob is well ventilated and that the air inlet and outlet are not
obstructed. Make sure that the ceramic hob is in good working order. As shown below
Note: The safety distance between the hob and the cabinet above the hob must be at least 650 mm.
A(mm)
B(mm)
C(mm)
D
E
650
50 minis
20 minis
Air inlet
5mm air outlet
