CBN.. 76..(i) 1855 747
675
x
719
x
759 804
1365
x
1372
x
CBN.. 775(i) 2015 747
675
x
719
x
759 804
1365
x
1372
x
CBN.. 778i 2015 747
675
x
— 759 —
1367
x
—
x
For appliances with supplied wall spacers, the dimensions
must be increased by 15mm .
4 Ventilation requirements
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
u
Take care to ensure adequate air ventilation.
u
Observe the ventilation requirements.
If the appliance is integrated into a fitted kitchen, the
following ventilation requirements must be adhered to:
-
As a rule, the larger the ventilation space the more effi‐
ciently the appliance can run.
5 Connection dimensions for the
power supply
The connection to the power supply is on the rear of the
appliance. To connect your appliance safely, ensure that the
following requirements are met:
q
Dimensions for the connection to the power supply are
known and are adhered to. See table below.
q
Connection to the power supply according to the instruc‐
tions. (see 17 Connecting the appliance to the power
supply)

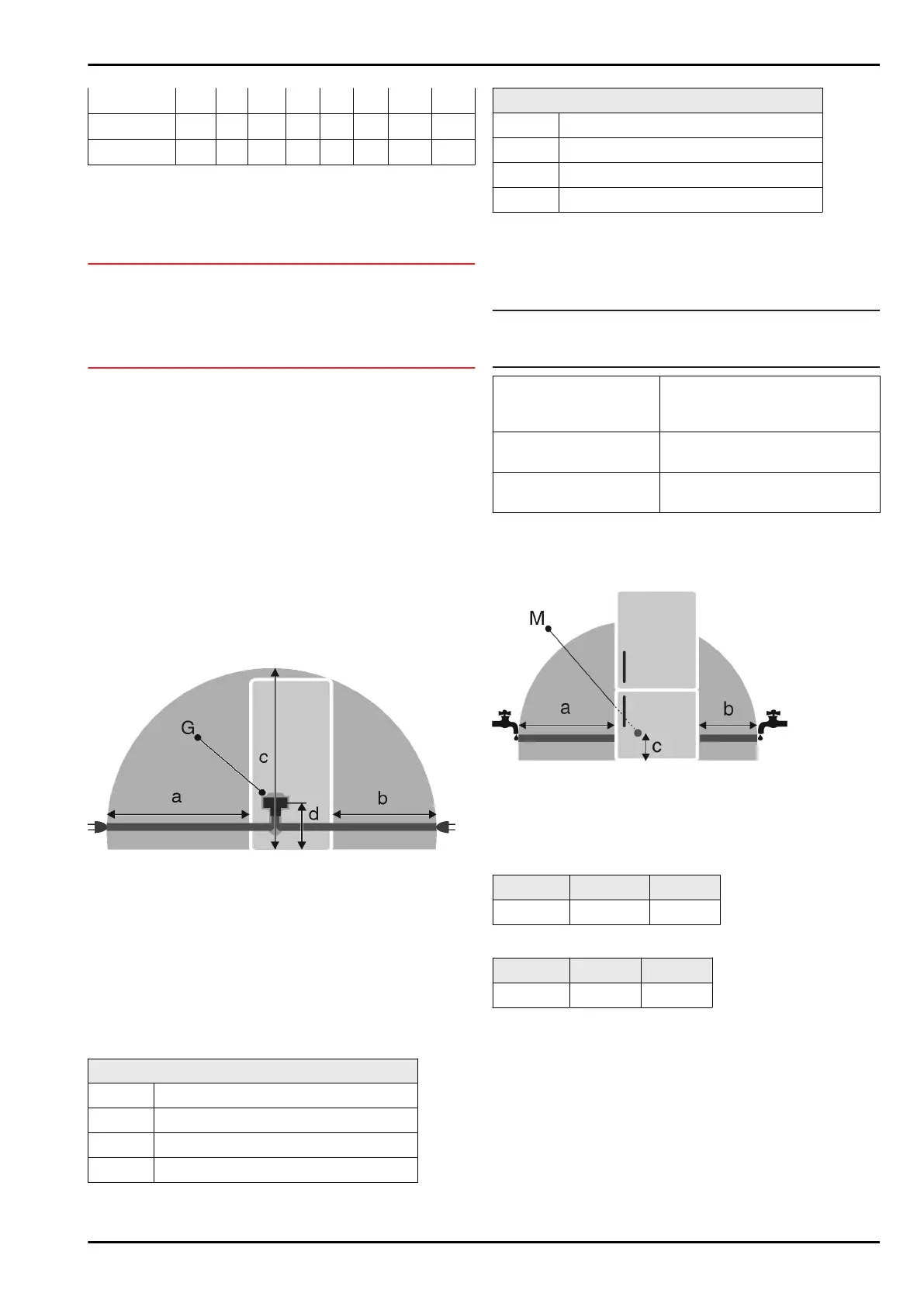

Fig. 4 Fridge/freezer combinations / freezers / full-capacity
BioFresh appliances*
(a)
Maximum available
length of the mains
connection cable
(d) Gap between appliance
plug and floor
(b) Maximum available
length of the mains
connection cable
(G) Appliance plug
(c) Maximum available
vertical length of
the mains connection
cable
For 600mm wide appliances:*
a ~ 1800mm*
b ~ 1400mm*
c ~ 2100mm*
d ~ 200mm*
For 750mm wide appliances:*
a ~ 1725mm
b ~ 1325mm
c ~ 2100mm
d ~ 200mm
6 Water connection*
If your appliance has a fixed water connection, a hose is
supplied with it.*
Note
You can purchase a hose of a different length as an acces‐
sory.*
Overview of dimensions
for the water connec‐
tion:*
(see 6.1 Dimensions for the
water connection*) *
Requirements for the
water pressure:
(see6.2 Water pressure)
Make the water connec‐
tion:
(see 15 Connecting the appli‐
ance to the water supply*)
6.1 Dimensions for the water connec‐
tion*
Fig.5
(a)
Maximum available
hose length
(c) Distance of solenoid
valve to floor
(b) Maximum available
hose length
(M) Solenoid valve
For 600mm wide appliances:*
a*
b* c*
For 750mm wide appliances:*
a*
b* c*
6.2 Water pressure
The water connection line and solenoid valve of the appli‐
ance are suitable for a water pressure of up to 1 MPa
(10bar).
To ensure that the appliance functions correctly (flow rate,
ice cube size, noise level), maintain the following water
pressure:
Ventilation requirements
6 * Depending on model and options
~ 1200mm ~ 1050mm ~ 150mm
~ 1125mm ~ 975mm ~ 150mm
