Push the swap bearing block cover Fig. 49 (3) along the
joint and use the attachment to fit it.
u
Remove the safeguard Fig. 49(4).
u
Place the trim Fig. 49(5) on the handle side and swing in.
w
The panel is latched into place.
u
Close the bottom door.
14.16 Fitting the top soft stop mecha‐
nism
For appliances with a soft stop mechanism:

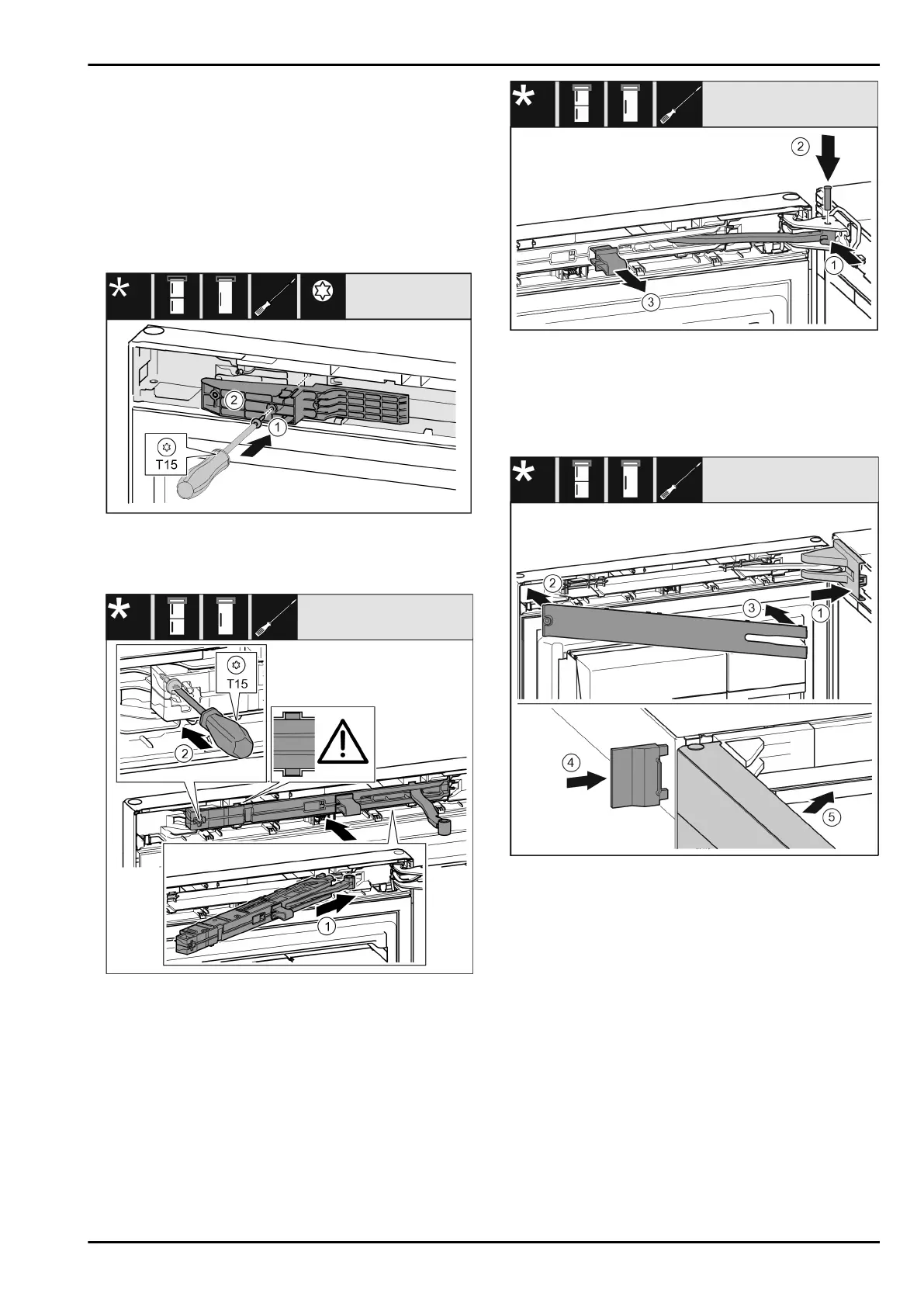

Fig.50*
u
Insert adapter Fig. 50 (1) in the recess on the handle
side.*
u
Tighten screw Fig.50(2) with screwdriver.*
Fig.51
u
On the swap bearing block side, slide the closing damper
unit Fig.51(1) into the recess at an angle up to the stop.
u
Push the closing damper unit completely in.
w
The closing damper unit is positioned correctly if the
closing damper unit’s rib is in the guide in the housing.
u
Use a screwdriver to tighten the screw Fig.51(2).
Fig.52
The door is open 90°.
u
Turn the joint Fig.52(1) in the bearing block.
u
Insert thebolt Fig. 52 (2) into the bearing bracket and
joint. Ensure that the latching cam is in the groove prop‐
erly.
u
Remove the safeguard Fig.52(3).
Fig.53
u
Put the swap bearing block cover Fig. 53 (1) on and
engage, push apart carefully if required.
u
Fit the trim Fig.53(2).
u
Screen Fig.53(3)
u
Push the outer cover Fig.53(4) on.
u
Close the upper door Fig.53(5).
15 Connecting the appliance to the
water supply*
Make sure that the following requirements are fulfilled:
q
The dimensions for the water supply connection are
known and complied with.
q
The correct water pressure is maintained.
q
Water is supplied to the appliance via a cold water
pipe which can withstand the operating pressure and is
connected to the drinking water supply.
q
All equipment and devices used to supply water must
comply with the regulations in force in the respective
country.
Connecting the appliance to the water supply*
20 * Depending on model and options
