14.12 Fitting the top door

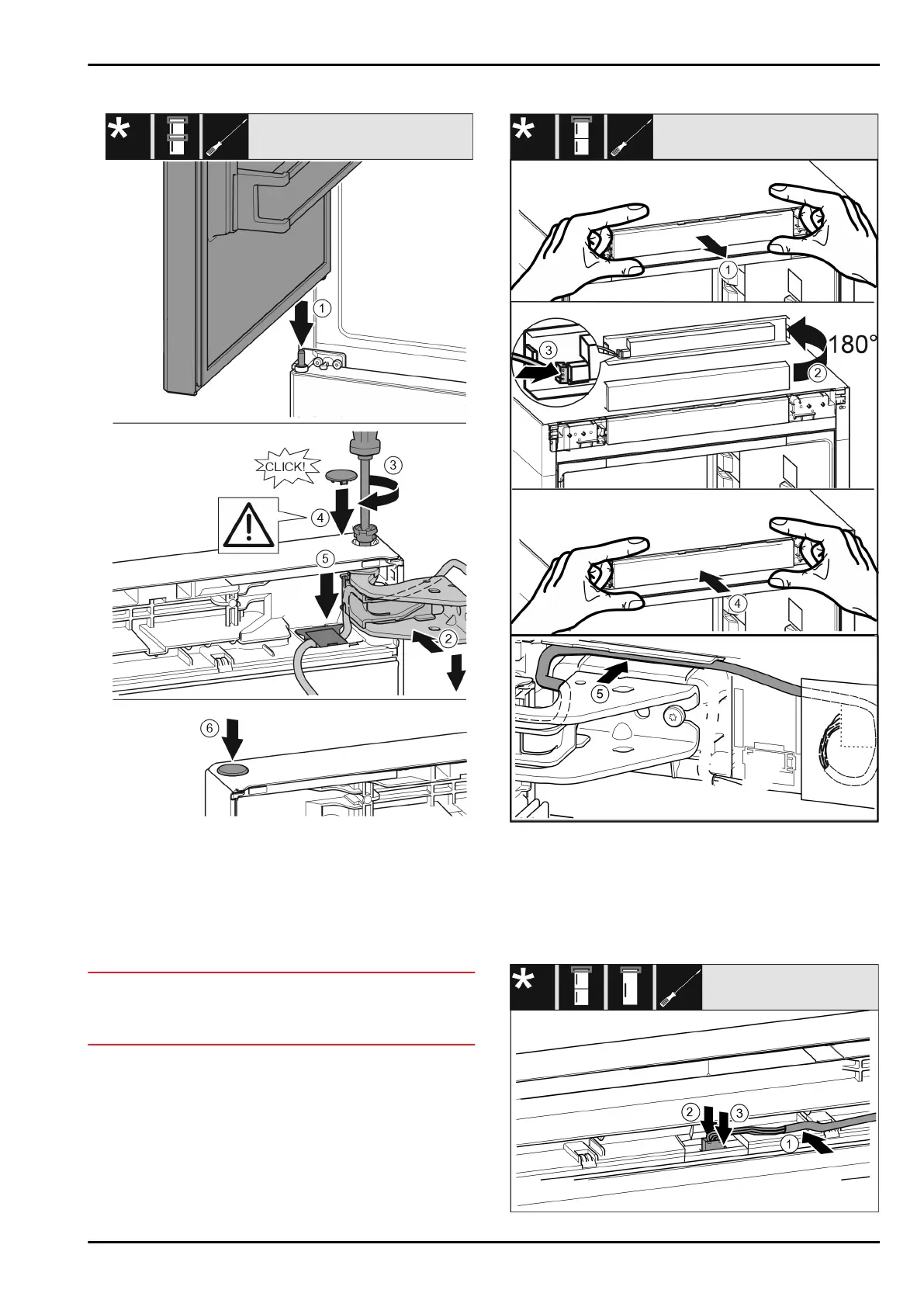

Fig.43
u
Place the top door on the centre bearing bolt Fig.43(1).
u
Align the top of the door with opening in the bearing
bracket. Fig.43(2)
u
Insert the bolt Fig. 43 (3) and use screwdriver to tighten
it.
u
Fit the safety cover Fig. 43 (4) to secure the door: Insert
the safety cover and check whether the door is resting on
it. Otherwise, insert the bolt fully.
NOTICE
Cable crushing
u
The marking on the cable must lie centrally in the holder.
The lug with the longer opening must point forwards.
u
Insert the cover Fig. 43 (5) and push down until it
engages.
u
Insert the plug Fig.43(6).
14.13 Fitting the cable connection
Fig.44
u
Remove the control panel trim Fig.44(1) carefully.
u
Turn the control panel trim Fig.44(2) up by 180°.
u
Engage the plug Fig.44(3) on the control panel trim.
u
Re-engage the control panel trim Fig. 44 (4) on the appli‐
ance.
u
Lay the cable Fig. 44 (5) carefully in the guide above the
top swap bearing block.
Door hinge change
