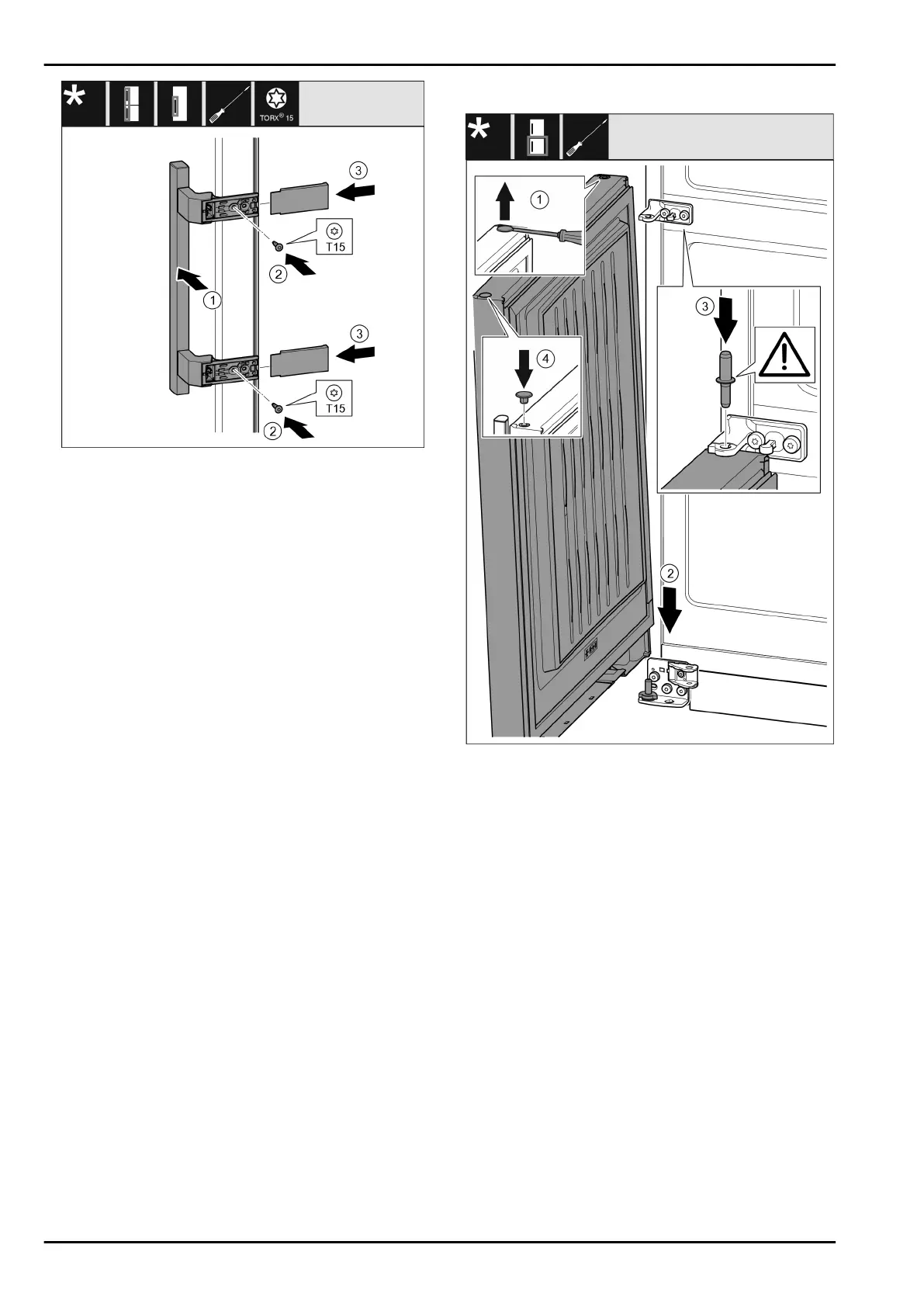

Fig. 41
u
Place the handle Fig. 41(1) on the opposite side.
w
The screw holes must be exactly above each other.
u
Tighten screws Fig. 41(2) with screwdriver.
u
Place the covers Fig. 41(3) on the side and push them on.
w
Ensure that they latch into place.
14.11 Fitting the bottom door
Fig. 42
u
Use a slotted screwdriver to lift the plug Fig. 42 (1) care‐
fully and pull it out.
u
Lower the door Fig. 42(2) onto the bottom bearing bolt.
u
Insert the centre bearing bolt Fig. 42 (3) through the
centre bearing block in the lower door. Ensure that the
latching cam is pointing towards the rear.
u
Re-insert the plug Fig. 42(4) on the other door side.
Door hinge change
* Depending on model and options 17
