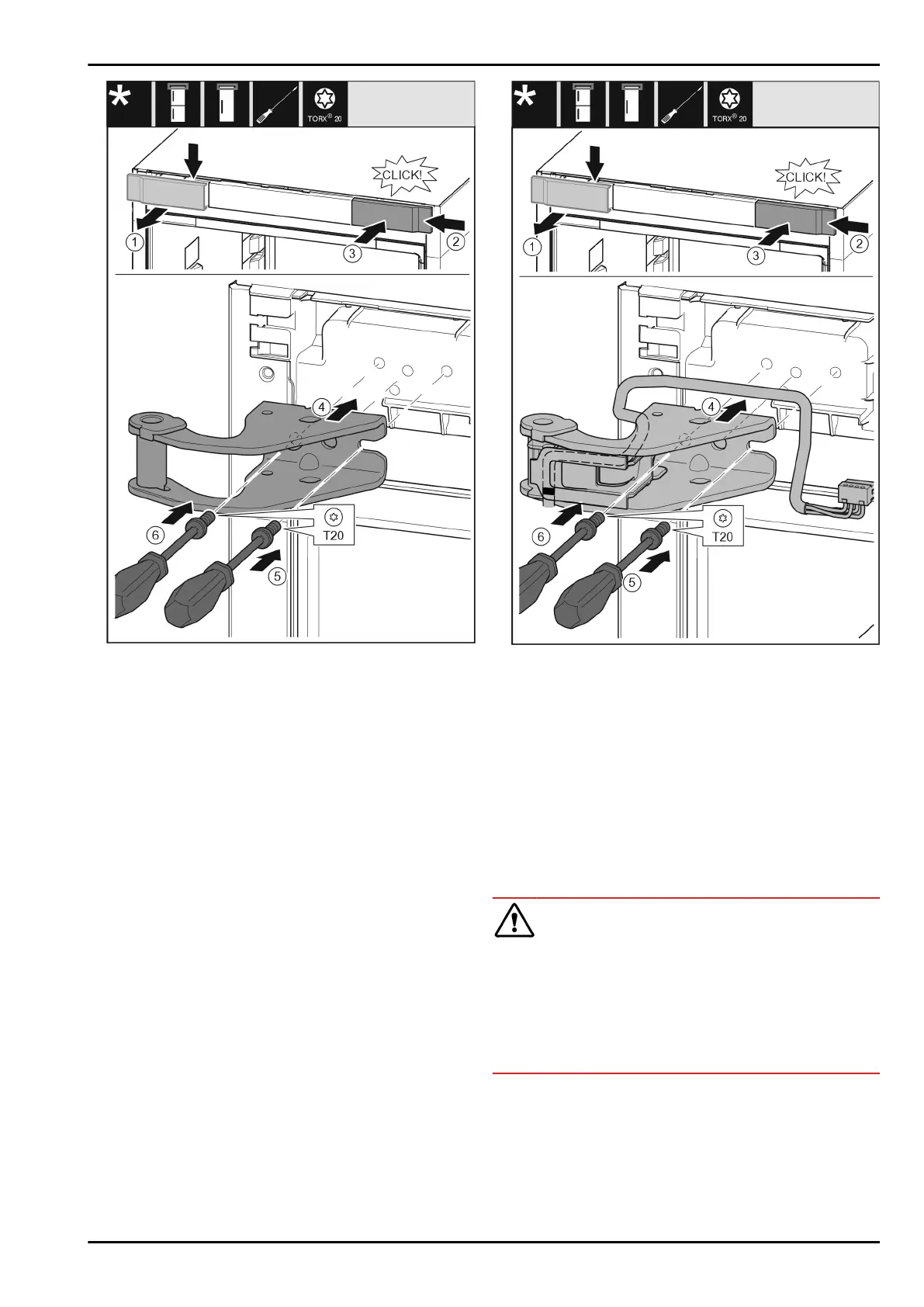

Fig.32
u
Remove the cover Fig. 32 (1) from above towards the
front.
u
Turn the cover Fig. 32 (2) by 180° and attach to the other
side from the right.
u
Engage the cover Fig.32(3).
u
Place the top swap bearing block Fig.32(4).
u
Use screwdriver Fig.32(5) to place the screw and tighten
it.
u
Use screwdriver Fig.32(6) to place the screw and tighten
it.
Fig.33
u
Remove the cover Fig. 33 (1) from above towards the
front.
u
Turn the cover Fig. 33 (2) by 180° and attach to the other
side from the right.
u
Engage the cover. Fig.33(3)
u
Place the top swap bearing block Fig.33(4).
u
Use screwdriver Fig.33(5) to place the screw and tighten
it.
u
Use screwdriver Fig.33(6) to place the screw and tighten
it.
14.7 Moving the central bearing parts to
the other side
WARNING
Danger of injury due to door falling out!
If the bearing parts are not screwed on tightly enough, the
door may fall out. This can result in serious injuries. In
addition, the door may not close with the result that the
appliance does not cool properly.
u
Screw on the bearing brackets/bearing pins tightly with
4Nm.
u
Check all screws and retighten them if necessary.
Door hinge change
14 * Depending on model and options
