USER MANUAL / DL-SCU33-SW
4
1. CONTROL
Female RJ45 connection for connecting into the device via the LAN.
Control the device from a third-party system through the integrated network and/or access the
built in web GUI.
2. USB Client Connectivity
Female USB-A 3.0 port. Connect up to four USB peripherals such as cameras and microphones.
3. DISPLAY-OUT
Female HDMI outputs
4. SHARE-OUT
Female HDMI output
5. AUDIO-OUT
Female 3.5 audio jack
6. EDID
Dip switch for setting EDID settings
7. RESET
Push button for resetting the device

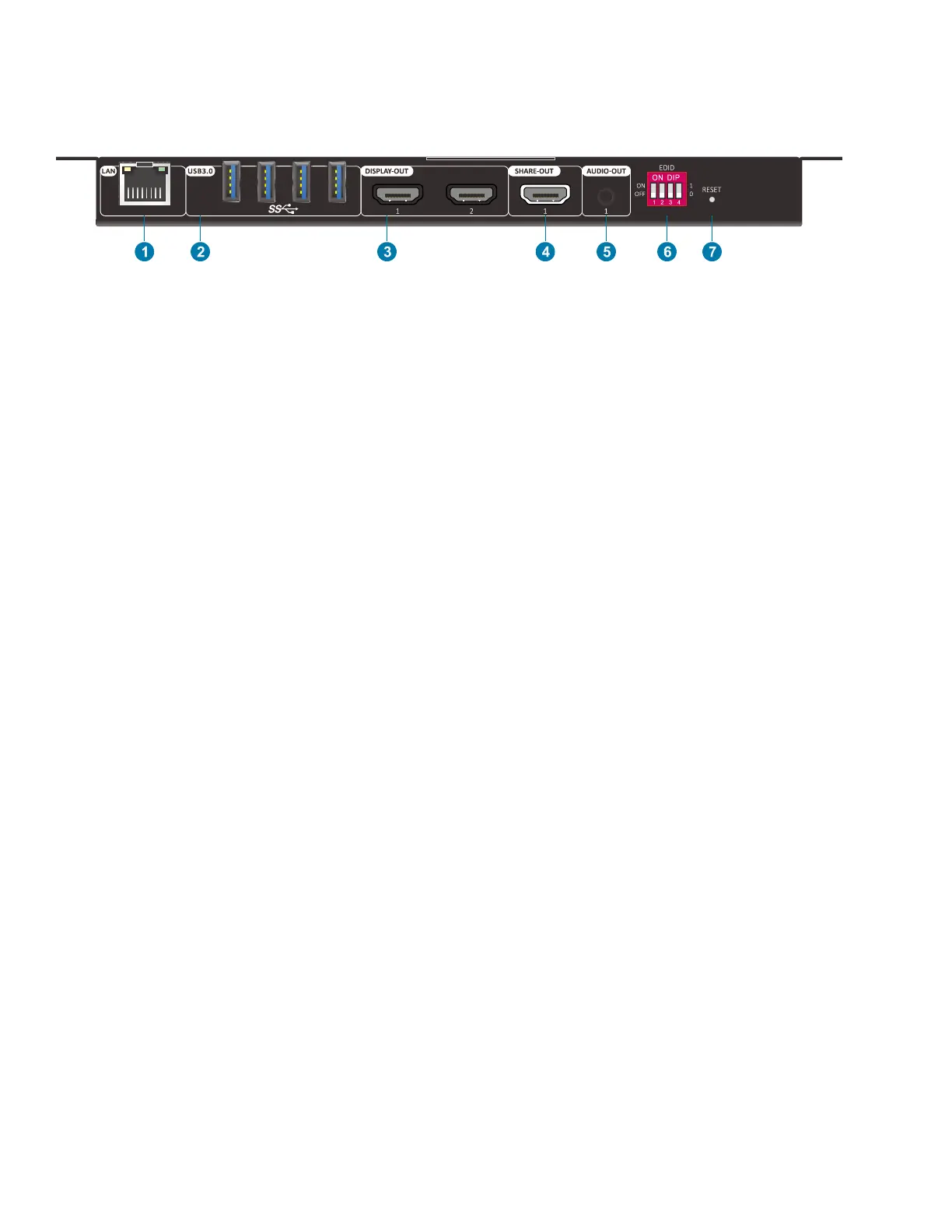

REAR PANEL PRODUCT BREAKDOWN
