USER MANUAL / DL-SCU33-SW
3
1. Dip Switch:
Auto: Allows for switching between modes using the video sync detected on the USB-C Alt
mode setting.
Manual: isables video auto switching based on the connectivity of the USB-C port. In manual
mode, the USB-C port can be used for charging purposes.
2. Laptop Mode:
Female HDMI Port: Connect a laptop for BYOM mode.
Female USB-C Port: Connect a laptop for BYOM mode or to charge a device using “convenience”
power. Port provides display alt mode, USB data transfer and power.
Female USB B: Connect a laptop for BYOM mode.
3. Room PC Mode:
Female HDMI port: Connect a dedicated room computer for dedicated room systems.
Second HDMI port: For dedicated room computers using dual display.
Female USB B: Connect to the dedicated room computer.
4. CONTROL:
Female micro USB: Intended for FW updates or other conguration.
Dip switch: Select between 5 or 12 volts for the occupancy sensor power.
3-pin Phoenix connector: Digital I/O port for an occupancy sensor.
3-pin Phoenix connector: Contact closure.
5. POWER
Barrel Din connector: DC 24V power supply connection.

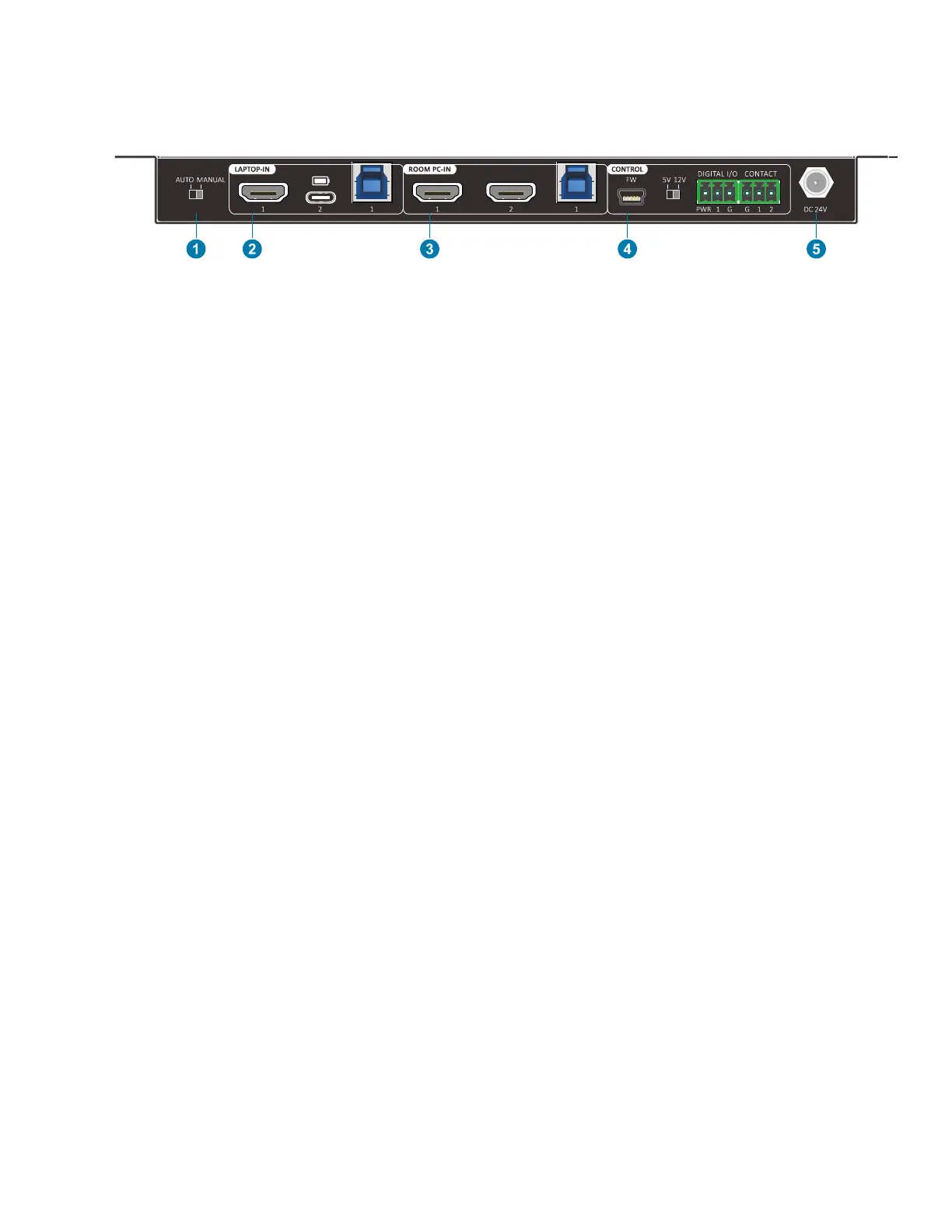

FRONT PANEL PRODUCT BREAKDOWN
