Table 7. System board connector and cable guide (continued)

No.

Connector (location)

Internal cable required

Cable connection

15

Coin-cell battery connector

(internal)

Coin-cell battery with cable

The coin-cell battery comes with a

cable. Connect the cable to this

connector.

16

Audio connector (external)

No

Connect headphones or a headset

to this connector.

17

USB-A connector (USB 5Gbps)

(external)

No

Connect a USB-A compatible

devices.

18

HDMI connector (external)

No

Connect a compatible digital audio

device or video monitor to this

connector.

19

Nano-SIM-card slot (external) No Insert a Nano Subscriber Identity

Module (SIM) card into this slot.

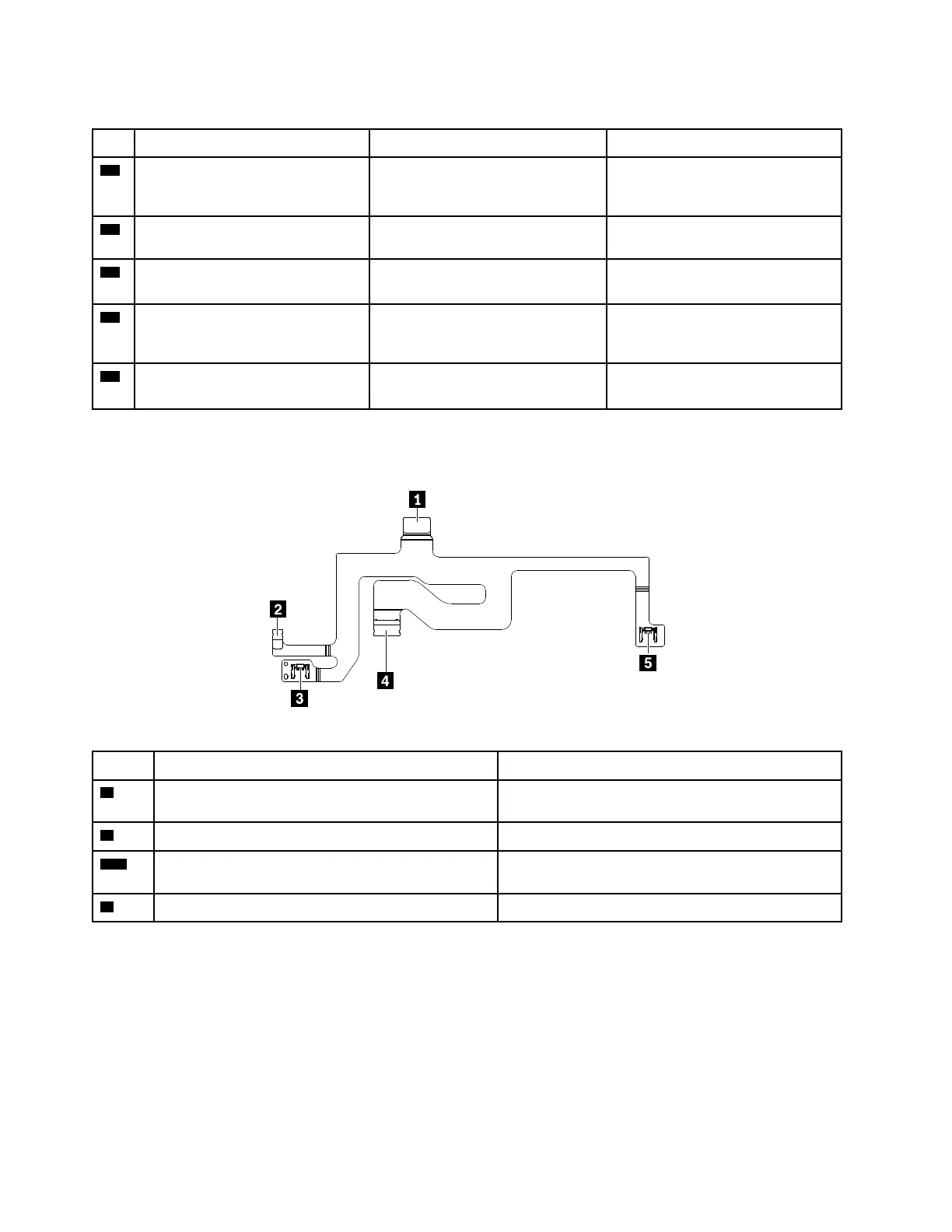

Trackpad / Haptic Touchpad, fingerprint reader, P sensor and NFC connector

For models without NFC

Table 8. Trackpad / Haptic Touchpad, fingerprint reader, and P sensor connector, and cable guide

No.

Connector (location) Cable connection

1

Trackpad, fingerprint reader, P sensor and NFC

connector

Connect this end to the system board.

2

Fingerprint reader connector

Connect this end to the fingerprint reader sensor.

3 5

P sensor connector

Connect the WWAN antenna assembly to these two

ends.

4

Trackpad / Haptic Touchpad connector Connect this end to the trackpad / Haptic Touchpad.

For models with NFC

50

ThinkPad X1 Carbon Gen 12 and ThinkPad X1 2-in-1 Gen 9 Hardware Maintenance Manual
