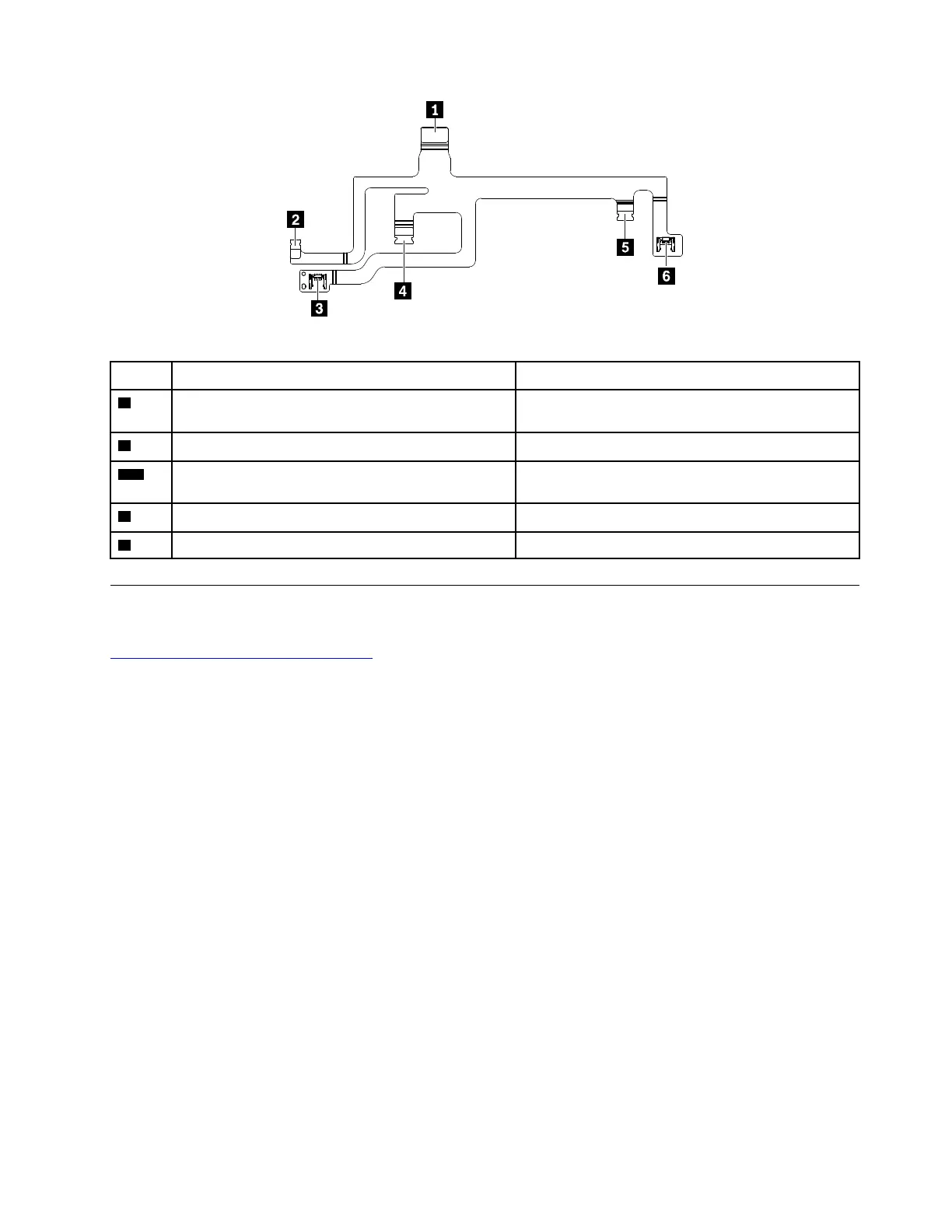

Table 9. Trackpad / Haptic Touchpad, fingerprint reader, P sensor and NFC connector, and cable guide

No.

Connector (location) Cable connection

1

Trackpad, fingerprint reader, P sensor and NFC

connector

Connect this end to the system board.

2

Fingerprint reader connector

Connect this end to the fingerprint reader sensor.

3 6

P sensor connector Connect the WWAN antenna assembly to this two

ends.

4

Trackpad / Haptic Touchpad connector Connect this end to the trackpad / Haptic Touchpad.

5

NFC connector Connect this end to the NFC module.

Looking up FRU information

For detailed FRU information, including part numbers, descriptions, and substitution part numbers, go to:

https://support.lenovo.com/partslookup

Chapter 6. Locations 51
