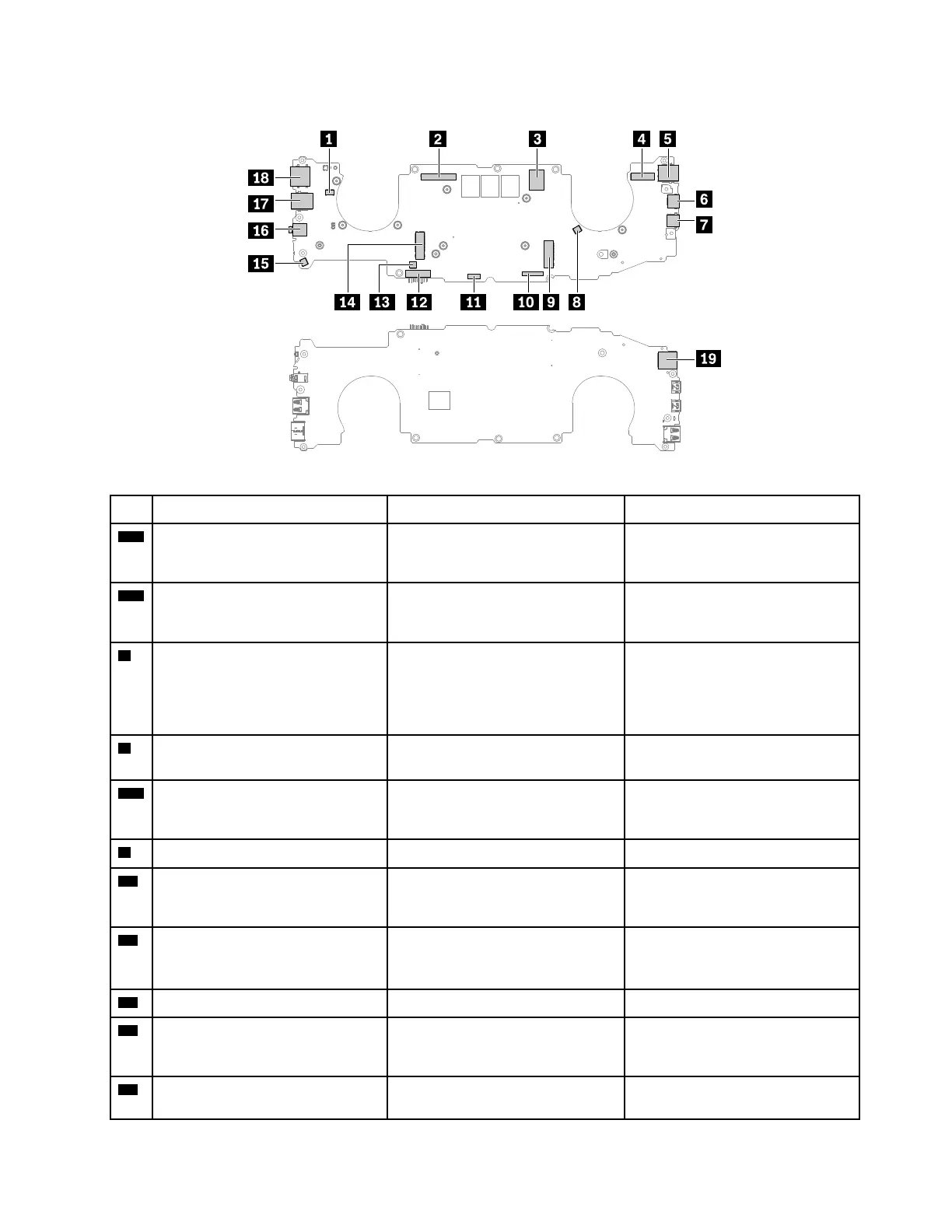

System board connectors and cables (for selected models)

Table 7. System board connector and cable guide

No.

Connector (location)

Internal cable required

Cable connection

1 8

Thermal fan connctor (internal) Thermal fan cables The thermal fan comes with two

cables. Connect the cables to

these connectors.

2 4

LCD connector (internal) LCD cable The LCD unit comes with the LCD

cable. Connect the cable to this

connector.

3

WLAN antenna connector WLAN antennas The LCD unit comes with the

WLAN antennas. Connect yellow

antenna to AUX connector and

connect black antenna to MAIN

connector.

5

USB-A connector (USB 5Gbps,

Always On USB) (external)

No

Connect a USB-A compatible

device to this connector.

6 7

USB-C connector (Thunderbolt 4)

(external)

No

Connect a USB-C compatible or

Thunderbolt 4 compatible device

to this connector.

9

WWAN card slot (internal) No Insert a WWAN card into this slot.

10

Keyboard connector (internal)

Keyboard assembly cable The keyboard assembly comes

with the cables. Connect the cable

to this connector.

11

Trackpad / Haptic Touchpad,

fingerprint reader, P sensor and

NFC connector (internal)

Trackpad / Haptic Touchpad,

fingerprint reader, P sensor and

NFC

See Trackpad / Haptic Touchpad,

fingerprint reader, P sensor and

NFC connector

12

Built-in connector (internal) No Connect built-in battery.

13

Speaker connector (woofer) Speaker assembly with cable

The speaker assembly comes with

a cable. Connect the cable to this

connector.

14

M.2 solid-state drive No Insert an M.2 solid-state drive into

this slot.

Chapter 6. Locations 49
