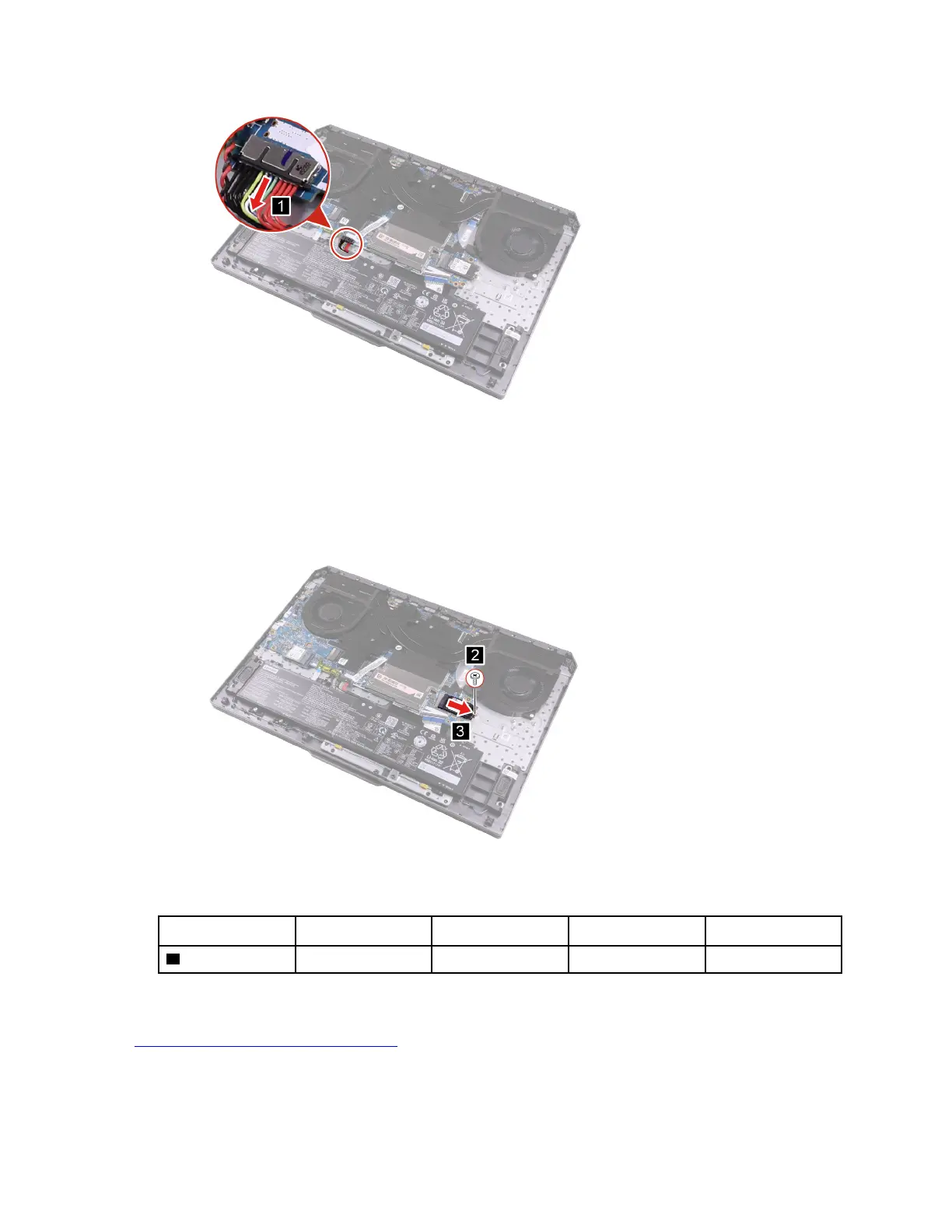

Figure 10. Disconnect the battery pack cable
Step 2. Remove one screw (2) and remove the 2242 solid-state drive by pulling it away from the slot (3).
Attention: Use your fingernail to pull the connector to unplug it. Do not pull the cable.
Figure 11. Remove one screw and remove the 2242 solid-state drive
Label Thread
Length (mm) Torque (kgf.cm) Quantity
2
M2 3.0 1.85 ± 0.15 1
Note: The product supports up to two solid-state drives. Remove both if needed.
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement part:
2242 solid-state drive
34
Lenovo LOQ 17IRX10 Hardware Maintenance Manual
