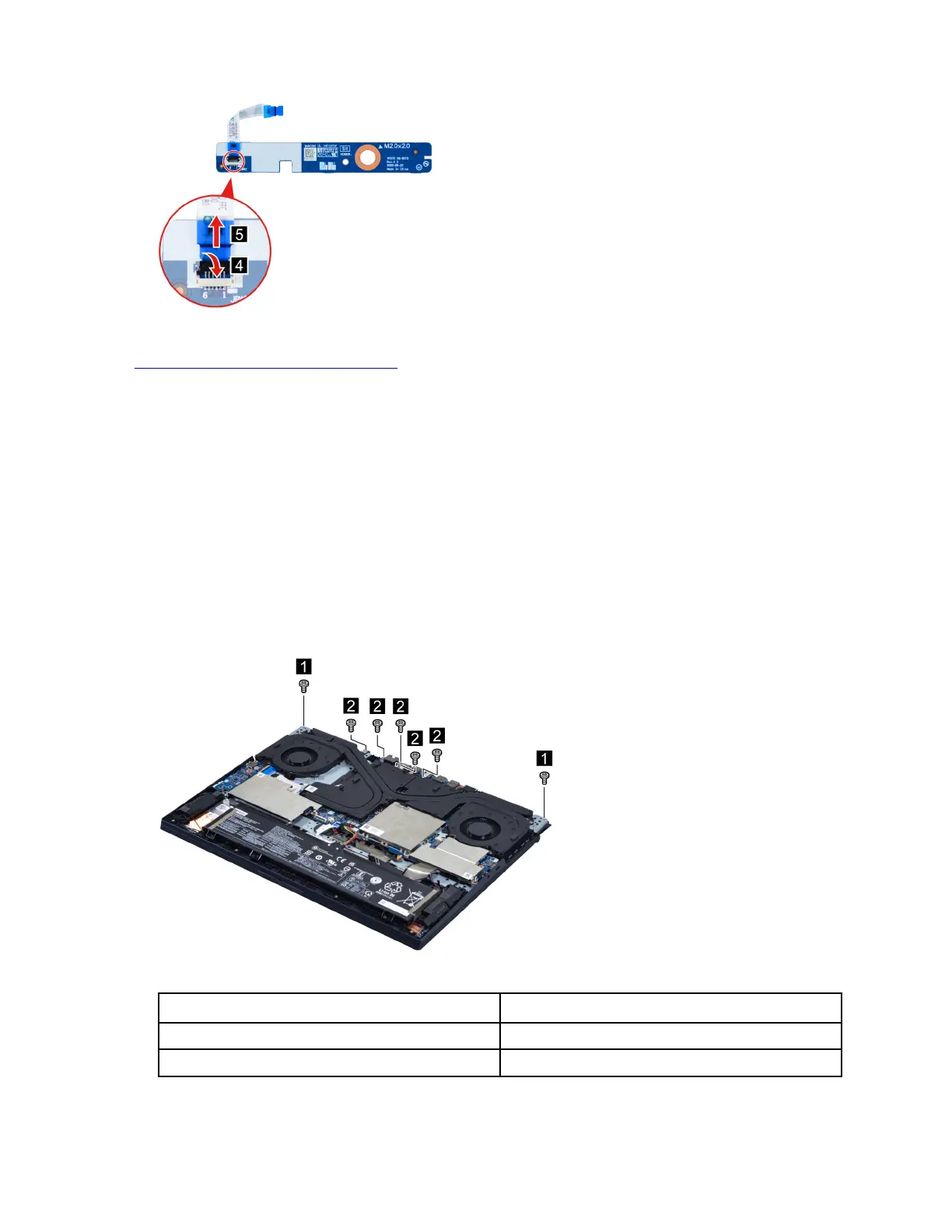

Figure 66. Separate the power board cable from the power board
Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Power board
Power board cable
Remove the strip cover
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 53
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove seven screws.
Figure 67. Remove seven screws
Screw specifications Number of screws
M2 xL4.5
5
M2 x L8 2
Step 3. Remove the strip cover.
68
Hardware Maintenance Manual
