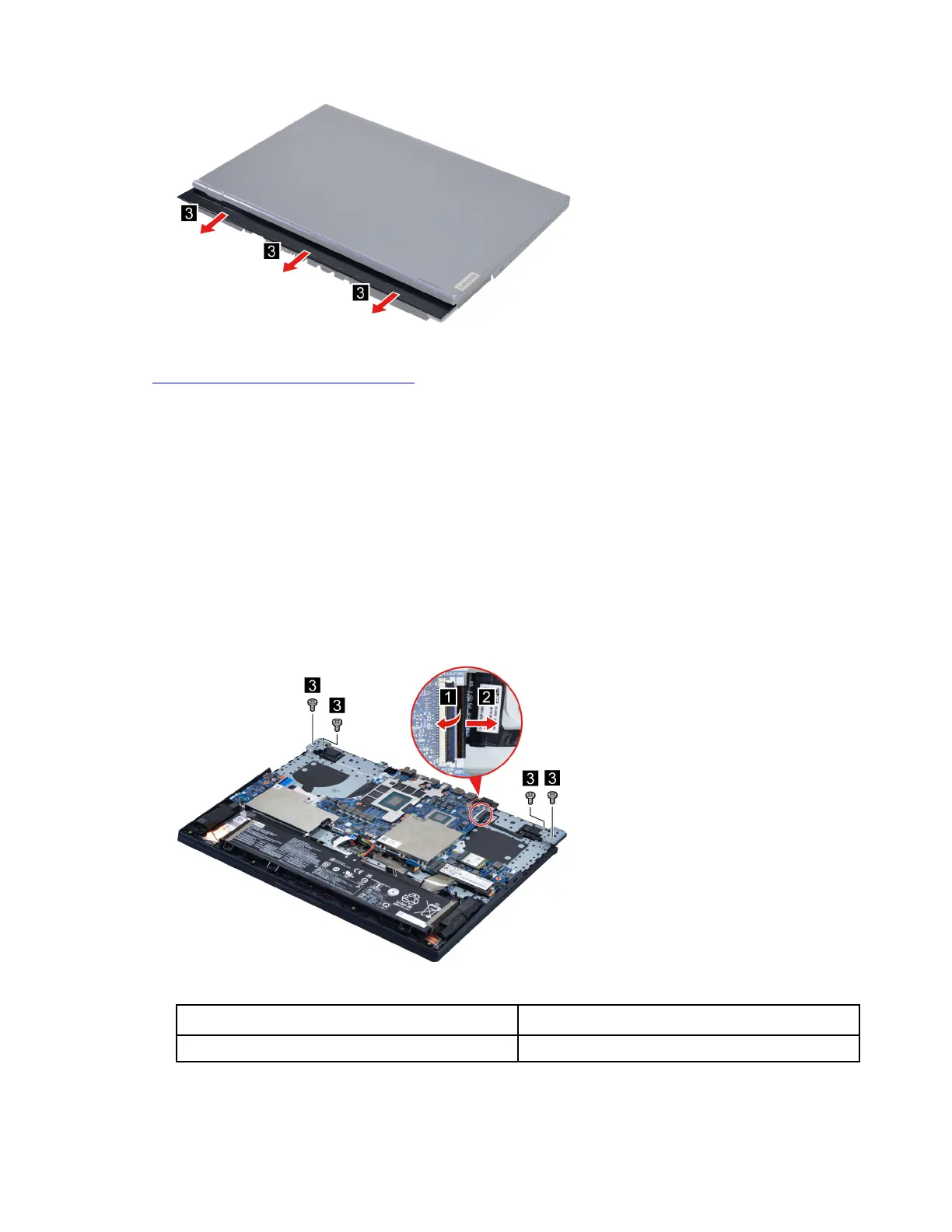

Figure 68. Remove the strip cover
Go to https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Strip cover
Remove the LCD module
Make sure the following FRUs (CRUs) have been removed.
“Remove the lower case” on page 53
“Remove the solid-state drive (SSD) plate (left)” on page 54
“Remove the thermal module” on page 63
“Remove the strip cover” on page 68
Step 1. Disconnect the EDP cable from the system board and then remove four screws.
Figure 69. Disconnect the EDP cable from the system board and remove four screws
Screw specifications
Number of screws
M2.5 x L7 4
Step 2. Remove two screws and then lift the LCD module carefully.
Chapter 4. Removing a FRU or CRU 69
