Screw specifications Number of screws
M2 x L2 1
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
Wi-Fi card
Remove the memory module
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 33
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove the memory module shielding.

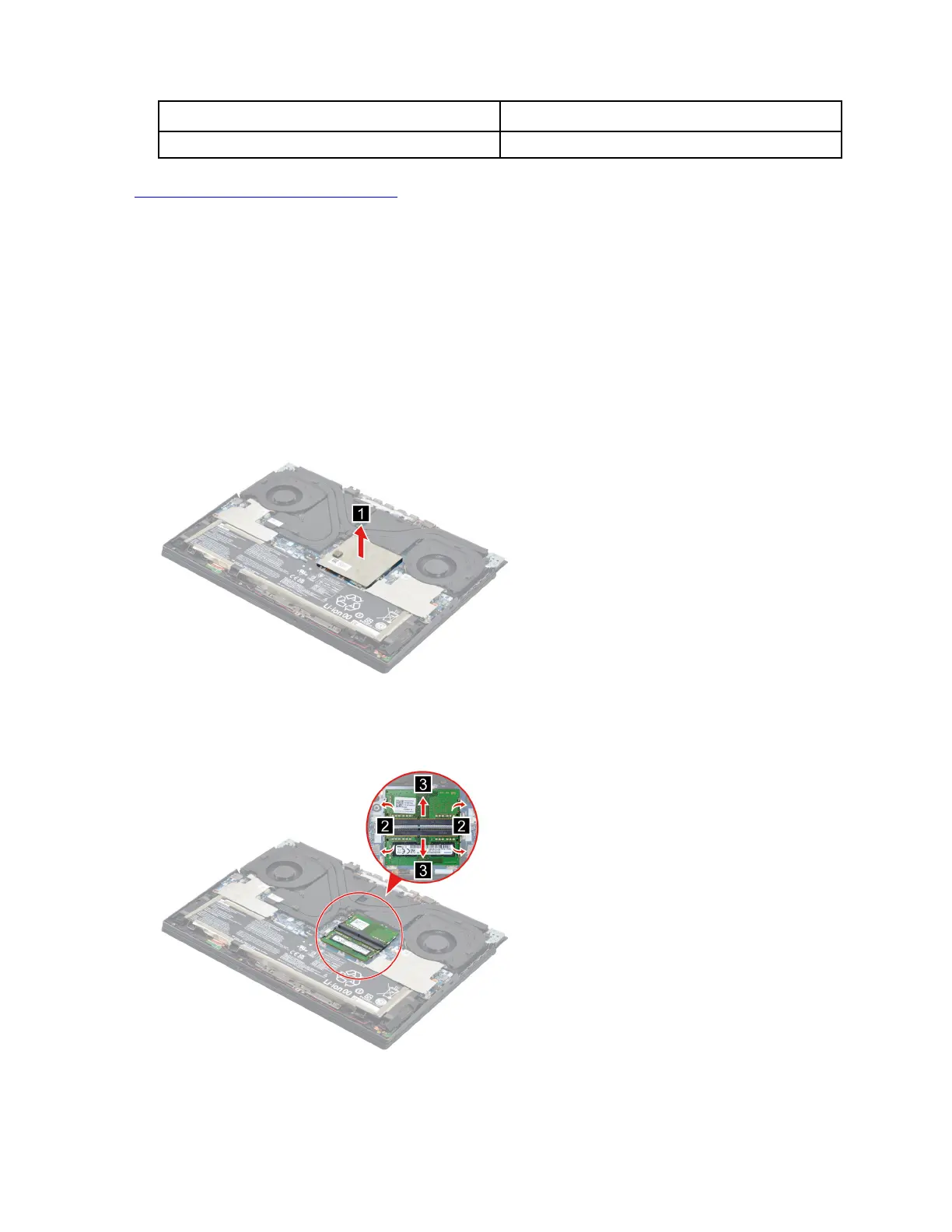

Figure 14. Remove the memory module shielding
Step 3. Release the two latches on both edges of the socket at the same time. Then, remove the memory
module.
Figure 15. Remove the memory module
38 Hardware Maintenance Manual
