Go to https://support.lenovo.com/partslookup to look up the Lenovo part numbers of the following
replacement parts:
Memory module
Memory module shielding
Remove the DC-in bracket
Make sure the following FRU (or CRU) has been removed.
“Remove the lower case” on page 33
Step 1. Disconnect the battery pack cable from the system board.
Attention: Use your fingernails to pull the connector to unplug it. Do not pull the cable.
Step 2. Remove two screws and then remove the DC-in bracket.

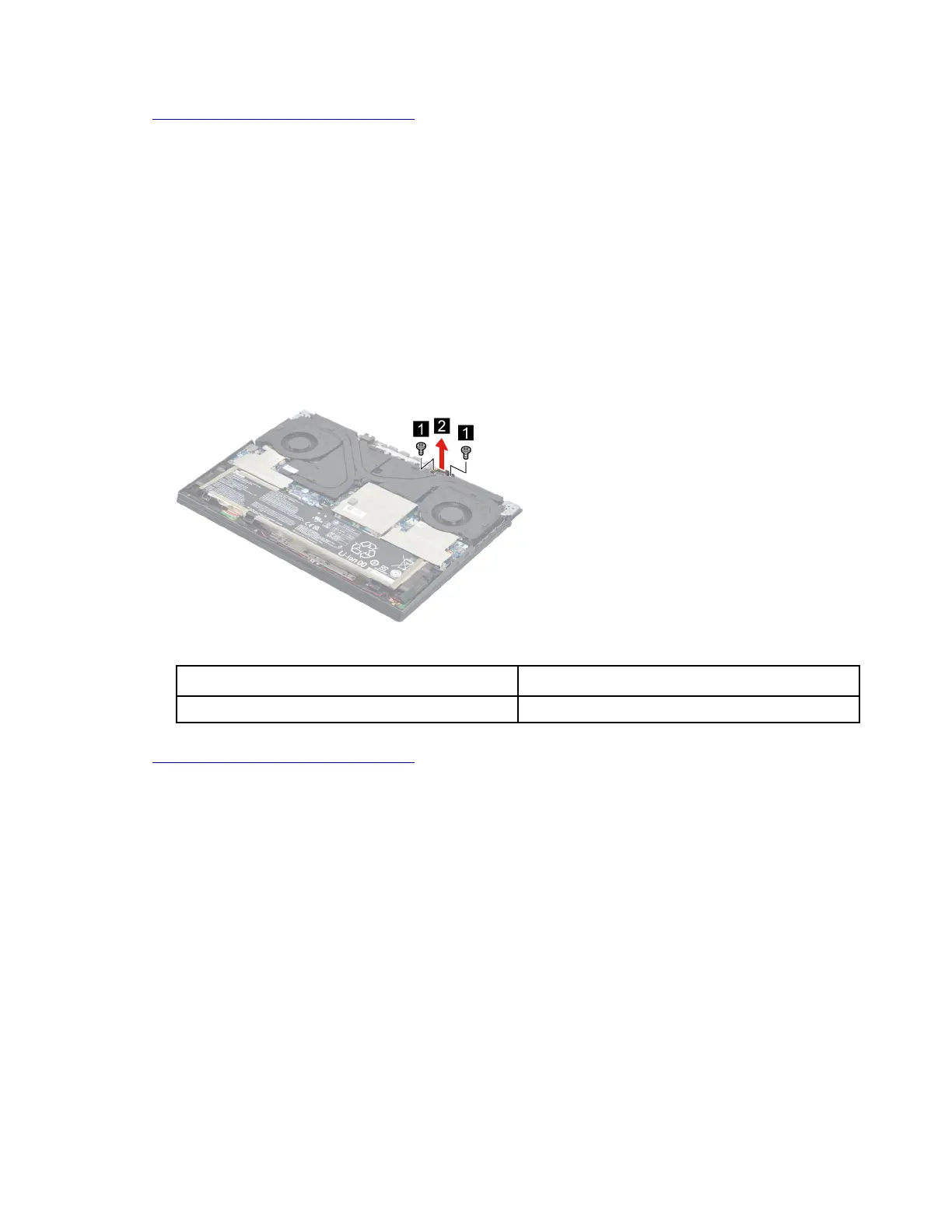

Figure 16. Remove two screws and then remove the DC-in bracket
Screw specifications Number of screws
M2 x L6.0 2
Go to
https://support.lenovo.com/partslookup to look up the Lenovo part number of the following replacement
part:
DC-in bracket
Remove the touchpad board cable
Make sure the following FRUs (or CRUs) have been removed.
“Remove the lower case” on page 33
“Remove the battery pack” on page 34
Step 1. Remove the right ssd plate.
Note: For details, see “Remove the solid-state drive (SSD) plates” on page 34.
Step 2. Disconnect the touchpad board cable from the system board and the touchpad board. Remove the
touchpad board cable.
Chapter 4. Removing a FRU or CRU 39
